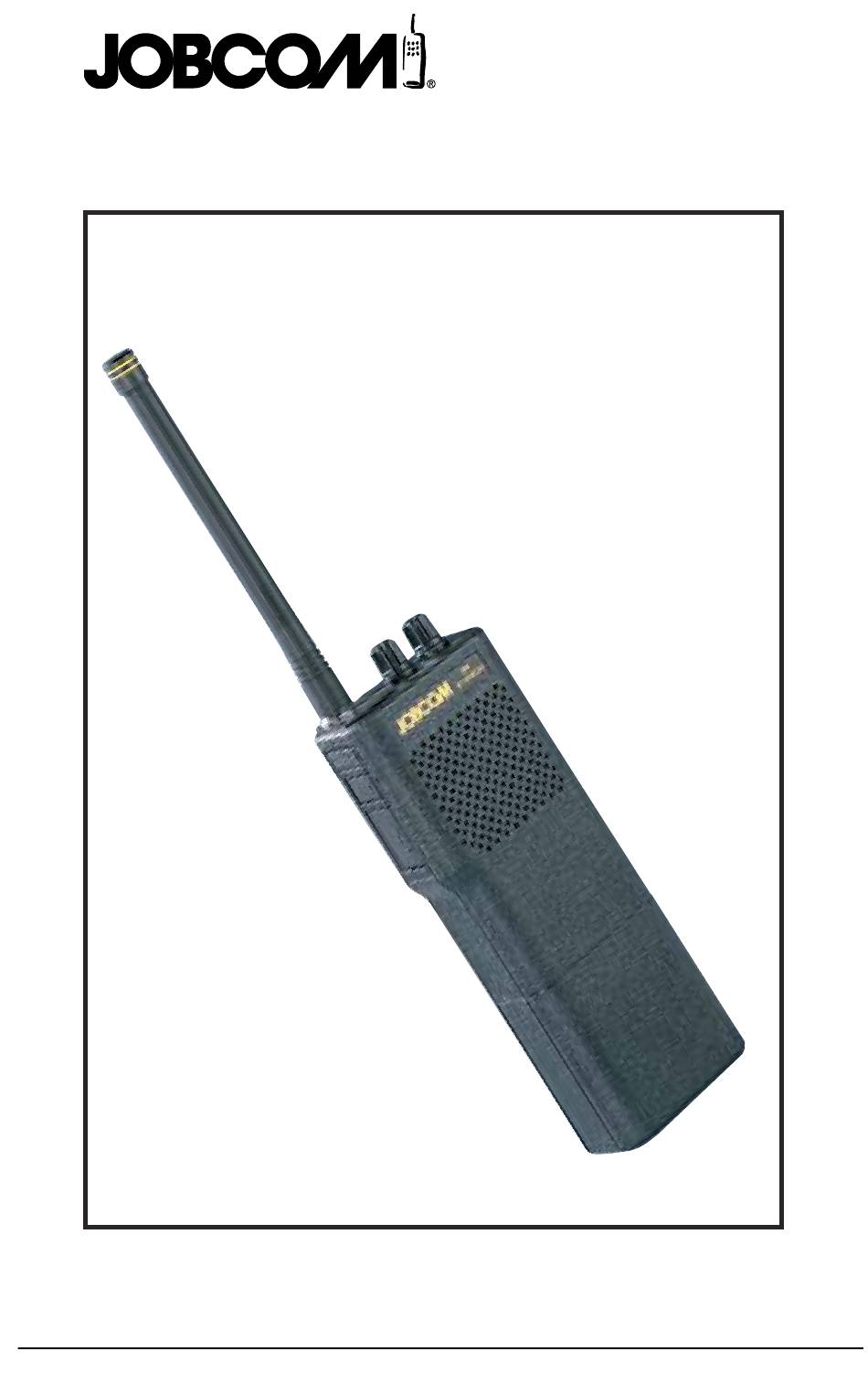

- Page 1 JBX-151 The Leader In Jobsite Radios USER MANUAL www.TwoWayRadioEquipment.com | (800) 878-7829 | Sales@TwoWayRadioEquipment.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS DESCRIPTION PAGE INTRODUCTION General ................... 3 Model and Frequency Identification ........3 OPERATING CONTROLS ........... 3 RADIO CARE General ................... 5 Battery ..................5 Battery Maintenance ............... 5 TROUBLESHOOTING ............8 QUIET CALL PRIVACY MODULE General ................. 10 Installation ................ -
Page 3: Introduction
Accessories are listed on page 9. The JBX-151 portable comes with a VHF antenna, shown in FIG-1. VHF and UHF Since the JOBCOM portable transmits on antennas are not interchangeable; use only communications frequencies authorized the antenna type packaged with the radio. - Page 4 R I T FIG-1: JBX PORTABLE OPERATING CONTROLS page 4 www.TwoWayRadioEquipment.com | (800) 878-7829 | Sales@TwoWayRadioEquipment.com...
- Page 5 OPERATING CONTROLS SPEAKER BATTERY DOOR The speaker allows you to hear calls on This door covers the battery compart- your channel. Note that the speaker can ment, holding the battery pack in place. be muted using the squelch control. Refer to FIG-2 (page 6) as you continue reading.
-
Page 6: Radio Care
Clean it with a soft cloth moistened with water. MAINTENANCE B A T T E R Y Because JOBCOM battery packs have The JB portable is powered by a extended run time, some users may rechargeable battery pack, which fits into... - Page 7 Battery Door (Top Edge) NOTE: The battery door slides on and off once the door latch is unlocked (see door latch below). Lock this latch after replacing the door. REMOVE ONLY TO INSTALL OR RE-PROGRAM AN OPTIONAL QUIET CALL MODULE! To take the printed circuit board assembly out of ®...
-
Page 8: General
TROUBLESHOOTING If you have trouble operating the JBX handheld, review the "Operating Controls" section. If you think the radio is malfunctioning, check the table below. PROBLEM POSSIBLE SOLUTION(S) GENERAL The radio does not work at all. Make sure the battery is installed correctly, as shown in FIG-2 (pages 6). - Page 9 Adjusting the squelch for "threshold" allows the receiver to detect all except very weak incoming radio signals. If you want to call or hear someone who is using a "blue dot" JOBCOM handheld, for example, you must use a blue dot radio. A color dot label attached to the case indicates the radio’s frequency.
-
Page 10: Quiet Call Privacy Module
QUIET CALL PRIVACY MODULE G E N E R A L An optional Quiet Call module may be plugged into the JBX portable for locations where an operating frequency must be shared by JBX Radio PCB sev-eral licensees. Quiet Call allows screen broadcasts from other licensees... - Page 11 HOW TO OBTAIN AN FCC RADIO LICENSE Federal Communications Commission (FCC) Licensing Information Because your Ritron radio operates on Private Land Mobile frequencies, it is subject to the Rules and Regulations of the FCC, which requires all operators of these frequencies to obtain a station license before operating their equipment.
- Page 12 RITRON, INC. ("RITRON") provides the following warranty against defects in materials and/ or workmanship in RITRON JOBCOM Radios, Rechargeable Batteries and Accessories under normal use and service during the applicable warranty period, as stated below. "Accessories" means antennas, chargers, headsets, earphones, speakers, holsters and microphones.
