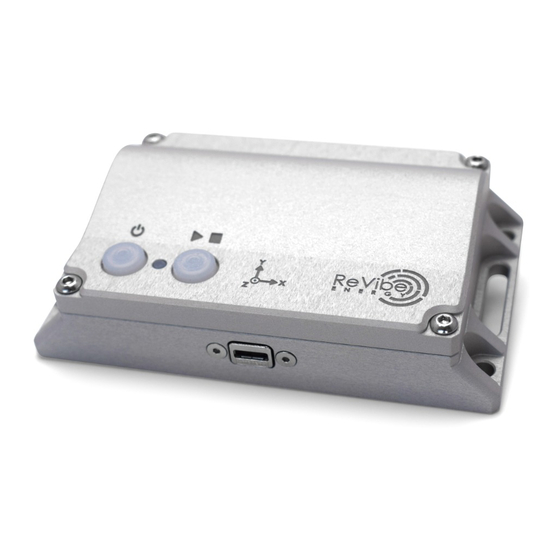

- Page 1 ReLog vibration data logger User manual & quick start guide for ReLog S, ReLog M & ReLog L...
-
Page 2: Table Of Contents
Important information Table of Contents Copyright© ReVibe Energy AB 2020. All rights re- served. Manual version: 1. Quick start guide Firmware version: 0002 VibInspect version: 2. Technical specifications For the latest version of the User Manual & Quick start guide, please scan the QR-code to the right 3. -
Page 3: Quick Start Guide
1. Quick start guide PLUG IN TO CHARGE Plug in your ReLog to a PC or wall outlet adapter by using the USB cable found in the delivery box. Allow the ReLog to charge until the battery indicator shows SET SAMPLE RATE The default sample rate is 32,000 Hz. -
Page 4: Technical Specifications
Anodized aluminium Transfer of data Via USB cable to PC IP rating IP67 Storage size ReLog S: 32 GB ReLog M: 64 GB ReLog L: 128 GB FEATURES Max. recording length with 32,000 Hz ReLog S: 46 hours sample rate... - Page 5 2. Technical specifications SECONDARY ACCELEROMETER Accelerometer Capacitive MEMS PRIMARY ACCELEROMETER Main features DC accurate, long-term stability and minimal Accelerometer Capacitive MEMS drift versus temperature Main features High frequency, high G and low noise Sample rate per axis 4,000 Hz 2,000 Hz 1,000 Hz Sample rate per axis 32,000 Hz...
- Page 6 2. Technical specifications BATTERY SPECIFICATIONS Chemistry Rechargeable Lithium-Ion Nominal capacity ReLog S: 2,600 mAh ReLog M: 3,000 mAh ReLog L: 3,400 mAh Minimum capacity ReLog S: 2,500 mAh ReLog M: 2,900 mAh ReLog L: 3,300 mAh Operating temperature -20°C – 60°C (-4°F to 140°F) Storage temperature 1 month: -20°C –...
-
Page 7: Product Overview
3. Product overview Dimensions Interface Interface legend n 4,5 n 4,5 94,5 What is included in the box? When you receive your ReLog, you will find the following items in the box: • 1 ReLog vibration data logger • 1 Connecting USB cable for data transfer and charging •... - Page 8 3. Product overview Battery LED indicator COLOUR BATTERY CHARGE STATE Over 80 % 20 % - 80 % Under 20 % LED functionality indicator STATE INDICATION Powering on (1 s) Stand-by (solid) + (flashing every 3 s) Starting measure- (flashing) ment Measuring (flashing every 3 s )
-
Page 9: Using The Relog
4. Using the ReLog ReLog settings Charging the ReLog In the box in which you received the Option 2 - use the _settings file There are two ways of setting the Once completed, a new dialogue ReLog, you will also find a USB ca- sample rate and choosing acceler- box will appear where you can set ble that you should use to connect... -
Page 10: Mounting
4. Using the ReLog Mounting Mounting by double-sided tape Mounting with wax/glue Done? Then you are ready to pro- How you mount the ReLog is the This will most likely be the go-to If none of the above fits your pur- ceed to the next step! most important aspect for you as a option for most users of the ReLog... - Page 11 4. Using the ReLog Measuring Below, you will find an instruction on how to proceed to get started with your measurements. Turn the ReLog on Turning on the ReLog is a simple task! Simply press the On/off but- ton ( ) and the LED indicator will show a steady green light, followed by a steady blue light with battery...
- Page 12 5. VibInspect software Installation & updating “ReLog Settings” - Press this button “FFT” - Calculates the discrete Fou- "Cursors" - Cursors are one of the to prompt a dialogue box where you rier transform of the signal. This more important and versatile tools Start by downloading the can choose the sampling frequency provides information about the av-...
- Page 13 5. VibInspect software Updating the ReLog "Octave Spectrum" - With Firmware upgrades that improve VibInspect, you can even analyse battery life, introduce functionality, your measurements using the increase stability and fix potential octave spectrum filters, where you bugs are continually implemented can choose between 1/1 and 1/3 to make sure that ReLog meets ex- octave spectrums.
- Page 14 If the ReLog still is unresponsive uct serial number. after this, make a note of the mea- sures you have taken and contact us at ReVibe for further support at contact@revibeenergy.com. Please describe the problem as detailed as possible and let us know the serial...
- Page 15 Copyright© ReVibe Energy AB 2020...
