Wooden College Loft Bed
Assembly Instructions
Tools Needed
- Power screwdriver with a Phillips #2 medium head bit.
- Adjustable (or 9/16") wrench.
- Hammer.
Optional Items
- Sandpaper.
- Wood glue.
- Paint.
Notes
Setup takes roughly 1 hour. It is easiest if you have two people doing it. If you are not sure how to install a piece

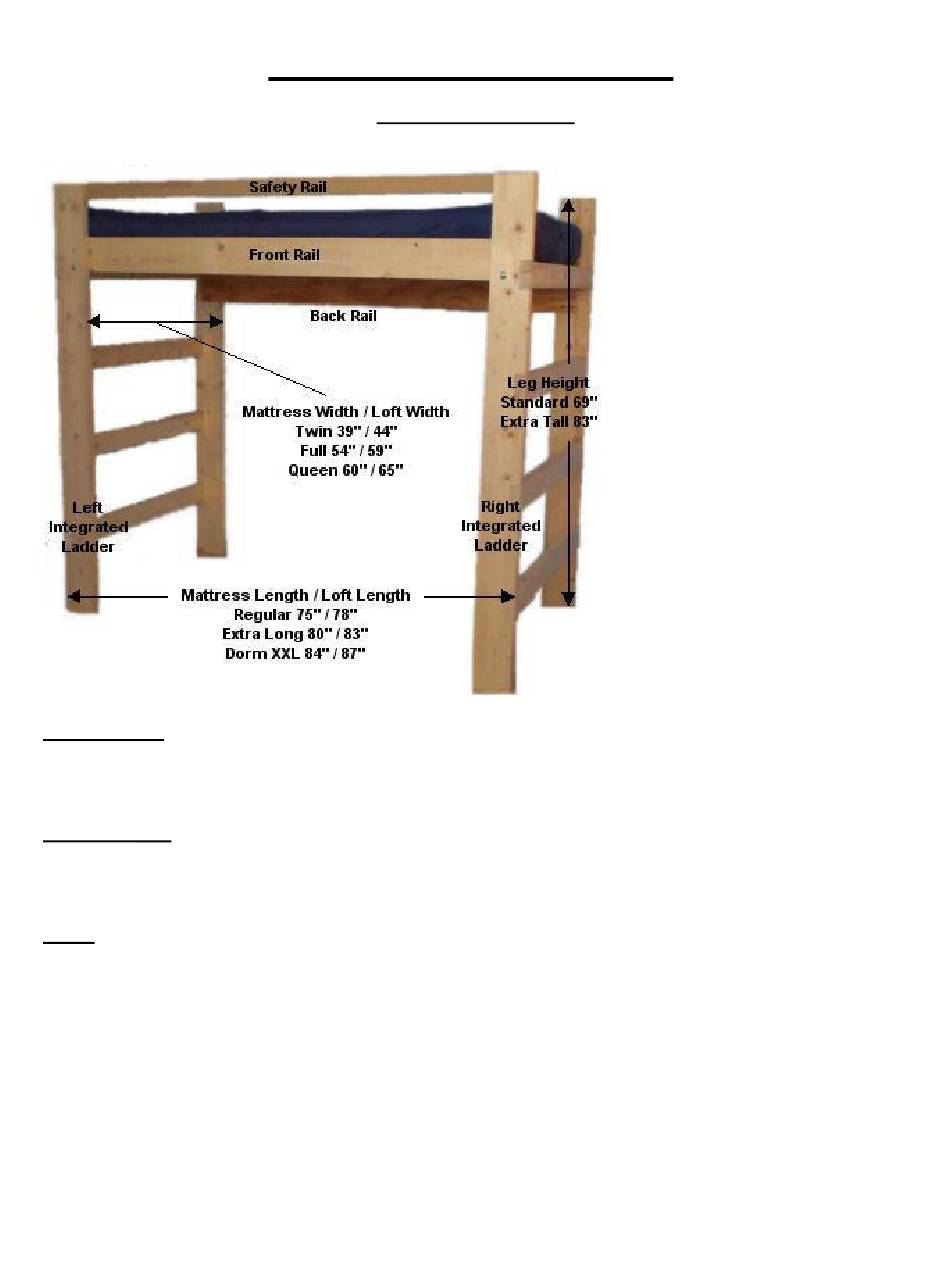

always refer back to the picture above to see how everything fits together. Please read through the entire
instructions to familiarize yourself first before beginning assembly.
You should always check the setup instructions on our web site to make sure you have the latest version. Compare
the updated date at the top of this page with the web page updated date. If the web instructions are newer, you
should download the newer instructions.
The wood used in your loft will typically have a (good) side and a (bad) side. The bad side will usually have a lumber
grading stamp or some imperfections. Before assembly lay all the pieces out on the floor and try to position the wood
with the "good" side facing up or out. Take into consideration which side you usually will be climbing up on and place
the best rungs and legs on that side.
Pilot holes have been predrilled into all necessary pieces.
Advertisement
Table of Contents
Related Manuals for USM Wooden College Loft Bed
Summary of Contents for USM Wooden College Loft Bed
- Page 1 Wooden College Loft Bed Assembly Instructions Tools Needed - Power screwdriver with a Phillips #2 medium head bit. - Adjustable (or 9/16") wrench. - Hammer. Optional Items - Sandpaper. - Wood glue. - Paint. Notes Setup takes roughly 1 hour. It is easiest if you have two people doing it. If you are not sure how to install a piece always refer back to the picture above to see how everything fits together.
- Page 2 You may want to add soap to the screws, the soap acts as a lubricant and makes driving them into the wood easier. Step One Assemble the left ladder. Lay the left front leg and left back leg on the floor with the notches facing up. The rail hole is positioned towards the top of the legs.
- Page 3 Lift the unit to its upright position. From the front insert a 5-1/2 In. carriage bolt into the hole in each of the front legs. From the inside place the front rail between the front ladder ends, the ledge must be facing inside and at the bottom of the front rail.
- Page 4 Step Five Fasten the back rail to the back legs with four 2-1/2" screws at each end. Fasten the front bed rail to the front legs with four 2-1/2 In. screws at each end. The Front Rail and Back Rail are exactly the same. Place your mattress support and mattress on the loft.
- Page 5 Painting or staining the wood will help to protect it as well and will prevent cracking. Warranty USM Manufacturing warranties its products for 1 year from the date of your receipt of merchandise. During this time we will repair or replace defective components that we consider defective due to materials or workmanship. We will not replace components due to user misuse, modification or improper installation.
- Page 6 Since USM Manufacturing cannot control the quality of the assembly nor modifications made to the loft, we will not be held legally liable from any accidents, injuries or property damage resulting from the use of our loft. Because of the very nature of sleeping on an elevated surface, there are obvious and inherent risks involved due to falling.
