  • Page 1 Leviathan 5000 User Manual...
  • Page 2: Safety Guide

    Thanks for choosing Leviathan intelligent Wave pump. Please read the user manual clearly before use. SAFETY GUIDE Attached are the warning level with different situation. Read carefully to keep the best performance and saftly ATTENTION GRADE Contents that it is assumed that the possibility of death DANGER or serious injury is imminent Contents that it is assumed that the possibility of death...
  • Page 3: Installation

    SAFETY GUIDE HANDLING OF POWER PLUG , POWER CORD & SOCKET WARNING Dust on ballast needed to be cleaned Unplugging the power during regularly. Accumulated dust may maintenance. cause fire due to moisture. Please It may cause an electric shock. wipe off with a dry cloth.
  • Page 4 ●Package contents / Name of each part Rotor Pump case Pump Body External Magnet Interior Magnet Intelligent Controller Connection cable Power cable Ballast Cable Holder Screws for Controller placement Protection Sponge ●Before Use .This product only use inside water. .Compensation for the live stock is not performed by stopping the pump. ATTENTION ·Make sure that the pump does not run idle due to a drop in water level, etc.
  • Page 5 ●Specification Leviathan 5000 Model 50∼20,000 L /h FLOW RATE 150∼2,200L SUITABLE FOR AQUARIUM 24W(±5%) MAX. POWER CONSUMPTION 0.4W(±5%) MIN. POWER CONSUMPTION Max. 20mm GLASS THICKNESS Max. Glass thickness 20mm 74 ㎜ 8 0 ㎜ 15 ㎜ 95 ㎜ ●INSTALLATION Do not turn on the power when the pump is not setting up correctly inside the water.
  • Page 6: Connection Graph

    CONNECTION GRAPH CONTROLLER POWER CORD BALLAST PUMP FOR SAFTLY USE THIS PRODUCT , PLEASE CONNECT EACH PARTS IN THE CORRECT WAY FROM ABOVE PICTURE. MAKE SURE TO SETTING UP DRILL LOOP IN EACH WIRE AND LOCK THE CONNECTOR FIRMLY. ATTENTION THE PUMP WILL AUTOMATIC TURN ON IN MIN.

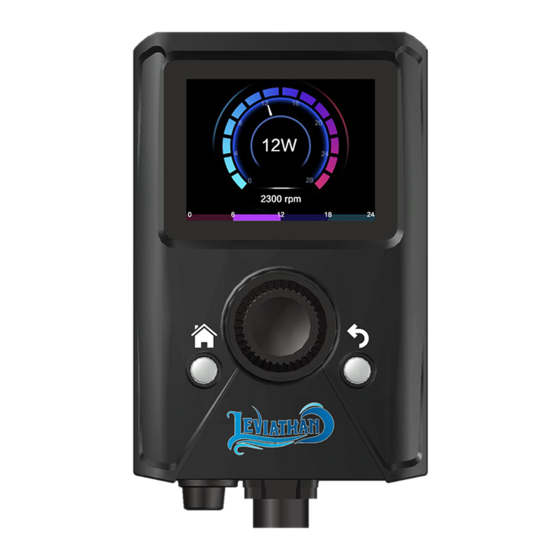

  • Page 7 ●CONTROLLER INTRODUCTION ●HOME RETURN TO HOME PAGE ●RETURN RETURN TO LAST PAGE ●HOME SCREEN Entry:Current Wave schedule.(Details please check “Wave schedule setting”) Number:Current link up pumps. Mode:Current mode of wave setting. Time:Current wave setting operate time period. Week:Current wave setting operate days in a week. Speed:Current Speed (RPM) of the pump.
  • Page 8 ●WAVE SCHEDULE SETTING Setting up Wave schedule by different mode , time period and days. You can setting up to 16 schedule per day. Click on Wave ICON ( Press the dial, Wave1, Wave2, Wave3..and the Wave settings are displayed. (e.g.WAVE1 is working on the left picture.
  • Page 9 Mode: You can choose the wave mode. There are 4 pre set Mode :Constant , Rough sea , Tide ,Random. And Customs allows to fully setting up all details by advanced aquarist. All settings are allowed to setup details separately. Pumps are working with constant flow.
  • Page 10 Random The gap between the strength and the wave becomes a random wave. If you select Random, the left screen will be displayed. You can set the following items on this screen. Max Speed: Maximum wave power Min Speed: Minimum wave power Custom Fully custom wave pattern for advanced aquarist 。...
  • Page 11 Save: Make sure to save after adjust the setting in each wave schedule .It will not response if you didn’t save the setting. ●Setting of multiple wave schedule You can set the time period and the day of the week to schedule. Wave2, Wave3...
  • Page 12 Extension connector: Connects between the pump body and the controller to increase the convenience of cable extension and maintenance. ● If you have any trouble or problem, please contact the shop you purchase or contact us. Manufacturer : Intelligent Star Technology Limited Global Distrubitor : ZOOX AQUARIUM LIMITED Email : sales@zooxanthellae.com...
