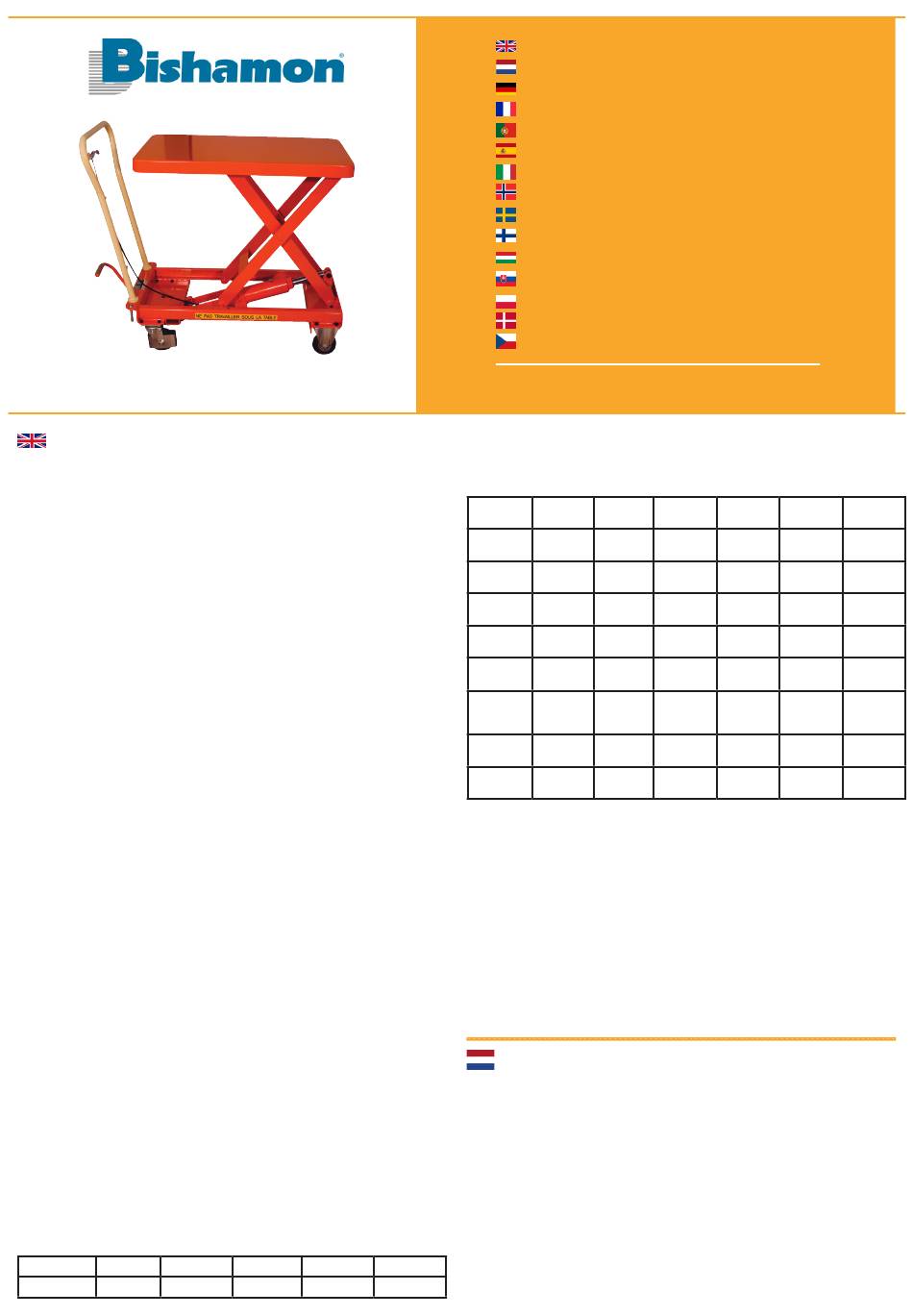

Bishamon A029087 User Manual

A029087 A029088 A029089
A029090 A031808 A031809
EN

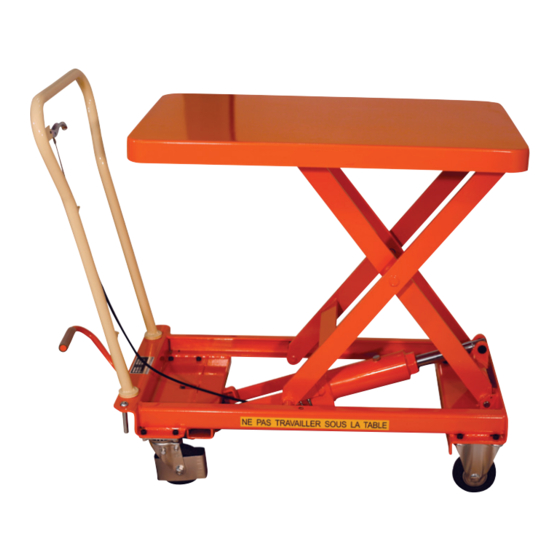

LIFT TABLE
WARNING AND CAUTION
• DO NOT put foot or hand in scissors mechanism.
• DO NOT allow other person to stand in front of or behind lifter when it is moving.
• DO NOT move lifter when table is in raised position. Load could fall down.
• DO NOT enter under table.
• DO NOT overload lifter
• DO NOT put foot in front of rolling wheels. Injury could result.
• WATCH difference of floor level when moving lifter. Load could fall down.
• DO NOT use lifter on slope or inclined surface, Lifter may become uncontrolable and create danger.
• DO NOT lift people. People could fall down and suffer severe injury.
READ THE OPERATION MANUAL COMPLETELY BEFORE USING AND THOROUGHLY UNDERSTAND AND
FOLLOW ALL SAFETY INSTRUCTIONS.
• Read this operation manual carefully and understand completely before operating lifter. Improper
operation could create danger.
• This lifter is a movable lifter designed to lift or lower rated load on table. DO NOT use lifter for other
purpose than its intended use.
• DO NOT allow person to operate lifter who does not understand its operation.
• DO NOT lower table too fast. Load could fall down and create danger.
• KEEP watching the condition of load. Stop operating lifter if load becomes unstable.
• Brake lifter when sliding load on or off table.
• DO NOT side or end load. Load must be distributed on at least 80% of table area.
• DO NOT use lifter with unstable, unbalanced or loosely stacked load. Practice maintenance work
according to Service instructions.
• DO NOT modify lifter without manufacturer's written consent.
• REMOVE load from table and use safety stopper to prevent table from lowering when servicing lifter.
• This lifter is not designed to be water resistant. Use lifter under dry condition.
DAILY INSPECTION
Daily inspection is effective to find the malfunction or faulty on the lifter. Check the lifter on the following
points before the operation. DO NOT use lifter if any malfunction or faulty is found.
• Check scratch, bending or crack on the lifter.
• Check smooth movement of the wheels.
• Check if there is oil leakage from the cylinder.
• Check the vertical creep of the table.
• Check the function of brake.
• Check if all the bolts and nuts are tightened firmly.
NAME OF PARTS (see figure 1 at the end of the document)
1 : Handle
2 : Lowering Lever
3 : Table
4 : Link
5 : Hydraulic Unit
6 : Brake Pedal
7 : Lifting Pedal
OPERATION OF BRAKE (see figure 2 at the end of the document)
Always brake lifter when it is not in motion.
(A) Braking the wheel : Press the brake pedal on this side of brake pedal.
(B) Releasing the brake : Press the brake pedal on the other side of brake pedal.
LIFTING THE TABLE
DO NOT overload lifter. Stay within its rated capacity. DO NOT side or end load. Load must be spread on
at least 80% of table area.
• Press the lifting pedal several times until the table reaches the desired position.
• The table does not elevate after reaching the highest position even if the lifting pedal is pressed.
The table lowers slightly after reaching the highest position.
NOTE:
The hydraulic cylinder is designed to hold table. As is the nature of the hydraulic system, table lowers
very slowly over and extended period of time. Please note the table does not stay at the same position
indefinitely.
A029087 A029088 A029089
300 kg 300 kg 500 kg
A029090 A031808 A031809
800 kg 150 kg 500 kg
EN
NL
DE
FR
PT
ES
IT
NO
SV
FI
HU
SK
PL Instrukcja użytkowania
DA
CS
www.manutan.com
LOWERING TABLE
DO NOT put foot or hand in scissors mechanism.
• Pull the lowering lever up and table lowers
SPECIFICATIONS
Model A029087 A029088
Capacity
300 kg 300 kg
(kg)
Table (mm) 500 - 813 518-1010
Table
288 - 865 433-1578
Height(mm)
Stroke
577 1145
(mm)
LXWXH 896x500x 961x520x
(mm) 1008 1258
Pedaling
(approx. 25 55
times)
Wheel Rub.100 PU150
Weight (kg) 69 138
HYDRAULIC CIRCUIT (see figure 3 at the end of the document)
A : Hydraulic Cylinder
B/D : Oil reservoir
C : Pump cylinder
E : Relief valve
F : Lowering valve
1 : Lifting
2 : Lowering
3 : Suction
HOW TO INSTALL THE HANDLE AND CONTROL CABLE (see figure 4 at the end of
the document)
• Install the handle on the frame with the hex. bolts and the handle seat.
• Install the control cable (C) with the fork end pin (A) and cotter pin (B).
• Insert the end of control cable tube to the slotted bracket (F) on the frame. Put the slotted bracket
between the adjust nuts (E). Then fix the tube by turning the adjust nuts.
• The tension of the control cable is already adjusted before delivery. If it is necessary to stretch the
control cable, turn both of the adjust nuts and stretch the cable to the direction of arrow.
• D : Lowering Lever
NL
WAARSCHUWING EN VOORZICHTIG
• Houd uw handen en voeten uit de buurt van het schaarmechanisme.
• Laat geen personen voor of achter de heftafel staan wanneer deze in beweging is.
• Verplaats de heftafel niet wanneer de tafel is geheven. Er kan lading vallen.
• Begeef u niet onder de tafel.
• Voorkom overbelasting van de heftafel
• Plaats nooit uw voet voor rollende wielen. Dit kan tot letsel leiden.
• Let op verschillende vloerniveaus tijdens het verplaatsen van de heftafel. Er kan lading vallen.
• Gebruik de heftafel niet op hellingen of hellende oppervlakken: de heftafel kan onbeheersbaar
worden, wat tot gevaarlijke situaties kan leiden.
• Hef nooit personen. Zij kunnen vallen en ernstig letsel oplopen.
LEES VOOR GEBRUIK DE GEBRUIKERSHANDLEIDING VOLLEDIG EN ZORG DAT U ALLE
VEILIGHEIDSINSTRUCTIES GOED BEGRIJPT EN OPVOLGT.
• Lees deze gebruikershandleiding aandachtig door en zorg dat u de inhoud volledig begrijpt alvorens
