- Page 1 Boost Charger ™ DC Fast Charging Station Operating and Maintenance Manual Version 1.0...
- Page 2 The Limited Warranty you received with your Boost Charger™ is subject to certain exceptions and exclusions. For example, your use of, or modification to, the FreeWire® Boost Charger™ in a manner in which it is not intended to be used or modified will void the limited warranty. You should review your warranty and become familiar with the terms thereof.
- Page 3 Safety and compliance The FreeWire Boost Charger is for Outdoor Use Only and to be mounted on a non-combustible surface such as a concrete pad that extends a minimum of 3 feet beyond the perimeter of the battery system/Boost Charger.
- Page 4 This page is left intentionally blank...
-
Page 5: Table Of Contents
Table of Contents INTRODUCTION ........................... 6 Overview ................................6 OPERATING THE BOOST CHARGER ....................7 Powering on the Boost Charger ......................... 7 Shutting Down the Boost Charger ......................7 Configure System Behavior ......................... 8 Charging an EV ..............................8 LED Status Indicators ............................ 9 USER INTERFACE WALK-THROUGH .................... -
Page 6: Introduction

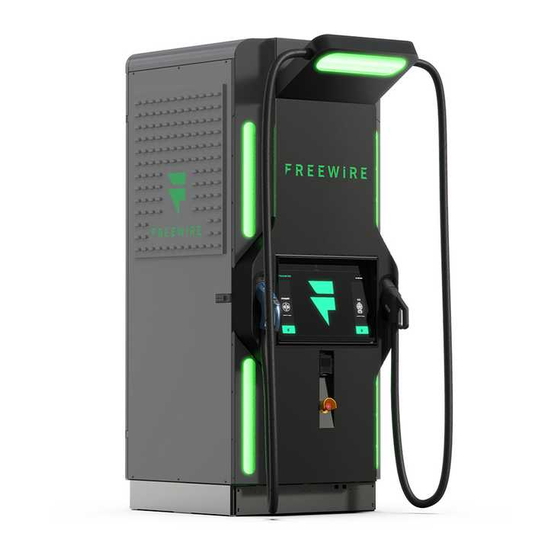

1 INTRODUCTION Introduction This manual describes how to operate and maintain the FreeWire Boost Charger DC fast charging station and is intended for use by a station owner or facility manager. Overview Boost Charger is equipped with a 24-inch ruggedized touch screen that meets ADA accessibility requirements. -
Page 7: Operating The Boost Charger
The Boost Charger has the ability to be turned off by use of a remote shut off switch. See the Boost Charger Installation Guide for more details. Whether this feature is used and where the switch is located varies by site. -
Page 8: Configure System Behavior
2 OPERATING THE BOOST CHARGER Configure System Behavior The site manager and/or station operator has the ability to customize a number of the Boost Charger software features. These include: • Setting pricing for electric vehicle (EV) drivers • Set different pricing/access policies for different groups To configure or make changes to settings at any time, log in to your EV Connect Administrator Portal by visiting https://ops.evconnect.com/admin/login... -
Page 9: Led Status Indicators
Tap ‘Exit’ to return to the home screen. Note: The driver may select to plug in the vehicle first, then initiate charging on the screen. This is also supported by the Boost Charger (Plug, Pay, Go). LED Status Indicators The LED Status Indicators will change depending on availability and/or status of the charger. -
Page 10: User Interface Walk-Through
3.1.1 Home Screen The Boost Charger home screen has four major components to welcome the user. Two panels on the far left and right sides of the screen specify the charger type, CHAdeMO and/or CCS, and availability. The ‘Help’ and ‘Pricing Details’... -
Page 11: Payment
This pricing table is also accessible on the home screen. No Touch Authorization The Boost Charger uses EV Connect to allow drivers to easily find, access, and securely pay for EV charging. To begin your charging session, follow the steps below: Step 1 Download and launch the EV Connect app. -
Page 12: Active Charging
3 USER INTERFACE WALK-THROUGH Active Charging 3.4.1 Charging Screen When charging is in progress, charging information will be displayed on the side of the screen that corresponds with the active connector. Information includes: • Current charge: Vehicle battery charge in percentage. •... -
Page 13: Dual Charging
3 USER INTERFACE WALK-THROUGH DUAL CHARGING Boost Charger can charge up to two EVs at once. Follow the steps below for instructions on how to connect and charge a second vehicle. 3.5.1 Select Connector not in Use The connector not in use will display the message “Available for charging”. Select the panel for the available charger to initiate the charging process. -
Page 14: Driver Support
A charging stopped confirmation screen will appear the end of the charging session. It is now safe to remove the connector from the vehicle. Tapping the ‘Exit’ button will return to the home screen. Driver Support If a user experiences any issues with using the Boost Charger, please contact EV Connect at (866) 816-PLUG. -
Page 15: Boost Charger Maintenance
If the emergency stop button on the front of the unit is accidentally engaged, pull out the button and the unit will automatically reboot. • Make sure that the base and vents of the Boost Charger are clear of any blockage, debris, and snow. • Keep the area free of any standing water or blocked drainage systems/sewers. -
Page 16: Preventative Maintenance
4 BOOST CHARGER MAINTENANCE Preventative Maintenance Preventative maintenance is included in the Boost Charger warranty. FreeWire Technologies or FreeWire approved personnel should perform all service checks as defined below. DANGER: RISK OF ELECTRIC SHOCK. No user serviceable parts inside. Only authorized personnel may service this equipment. To reduce the possibility of injury, turn main disconnect switch “OFF”... -
Page 17: Boost Charger Specifications
5 BOOST CHARGER SPECIFICATIONS Boost Charger Specifications System CHAdeMO: 100 kW Max Output Power CCS: 120 kW Combined: charge two vehicles up to 60 kW each CHAdeMO: 200 A Max Output Current CCS: 300 A Dimensions 40 in x 43 in x 96 in... - Page 18 5 BOOST CHARGER SPECIFICATIONS Safety and Compliance U.S.: complies with UL 2202, UL 2231-1, UL 2231-2, UL 991, Safety Compliance UL 1973 (battery pack) EMC Compliance U.S.: FCC part 15 Class A Safety: Electric Vehicle • See the EV supplier’s guide for proper care of the EV and follow directions carefully. Failure to follow EV care instructions can results in EV explosion and property damage, severe injury, or death during charging.
- Page 19 NOTES...
- Page 20 Any additional questions please contact: (415) 484-9590 support@freewiretech.com 1933 Davis St. Suite 301A San Leandro, CA 94577 Boost Charger Operating and Maintenance Manual v1.0. 8.28.2020 Part Number 770-00005-01...
