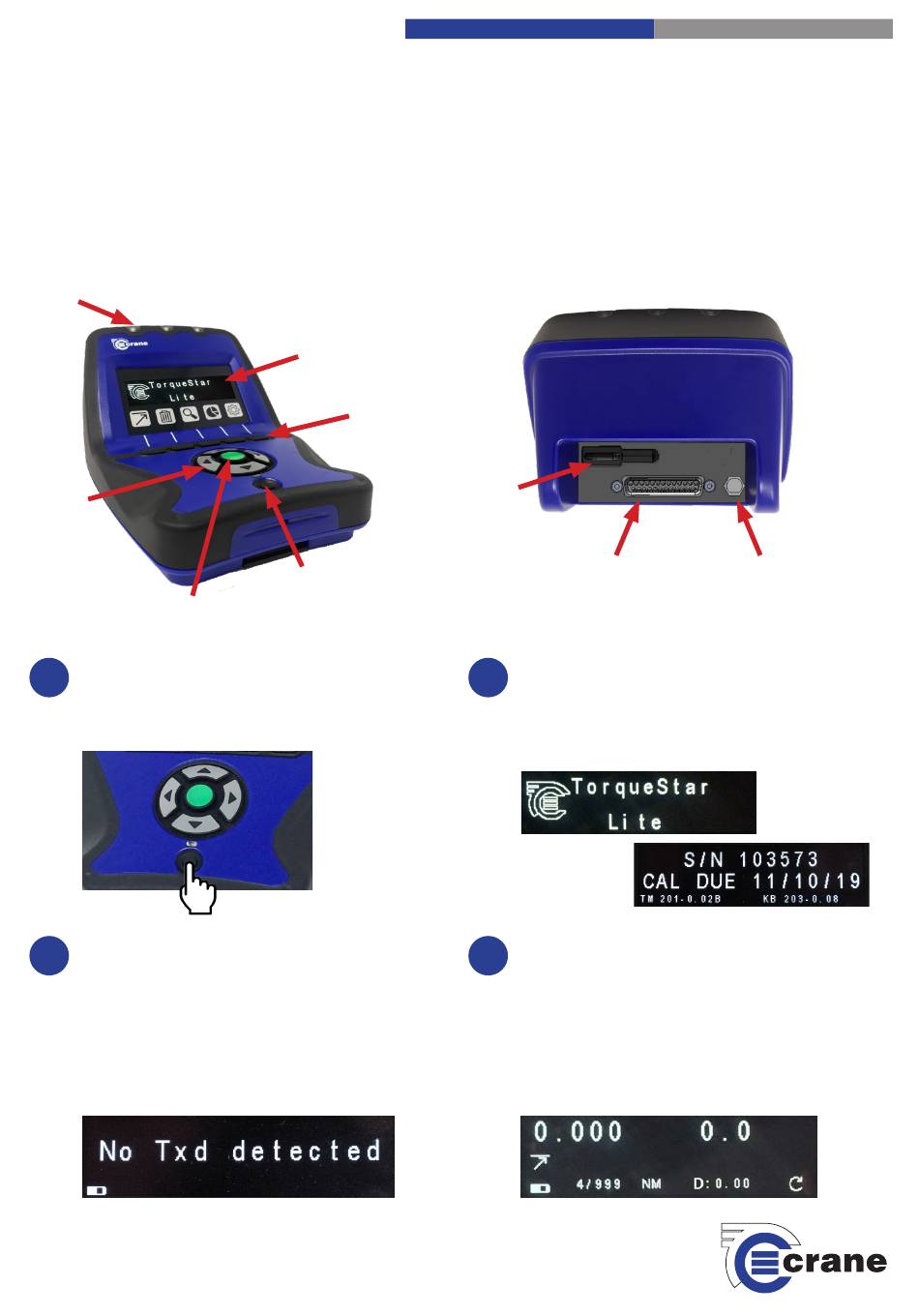

TorqueStar Lite - Quick Start Guide
Getting started with your TorqueStar torque data collector.

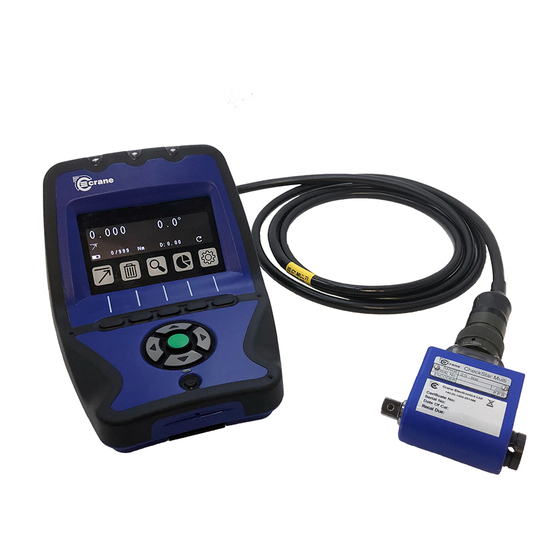

Front
LEDs
Directional
Arrow Keys
Green 'Accept' Key

Switching On

1
Turn on your TorqueStar by pressing the on/off button
situated below the arrow keys. Pressing this button
whilst the TorqueStar is on will turn it off.

Connecting a Transducer

3
The screen below will be displayed when there is no
transducer connected. To connect your transducer,
plug the transducer cable into the connection port on
the back of the TorqueStar.
The TorqueStar will automatically recognise all Crane
UTA and CheckStar Multi transducers. For Crane IS
transducer set-up please see the operator's manual.
White OLED
Display Screen
Function
Soft Keys
On/Off Button
Micro USB
25-Way D-type
Female Transducer Port

Starting the TorqueStar

2
The first screens you will see are the splash screen
which then changes to show the TorqueStar's serial
number and calibration due date. The software
version and keyboard version are also both indicated
by TM and KB respectively.

Measurement Screen

4
Once a transducer is connected you will then see
the measurement screen below.
The last measurement mode used (peak, click, track
or pulse) will be automatically selected, this can be
changed using the measurement reading function
key. Then you are ready to start measuring torque.
