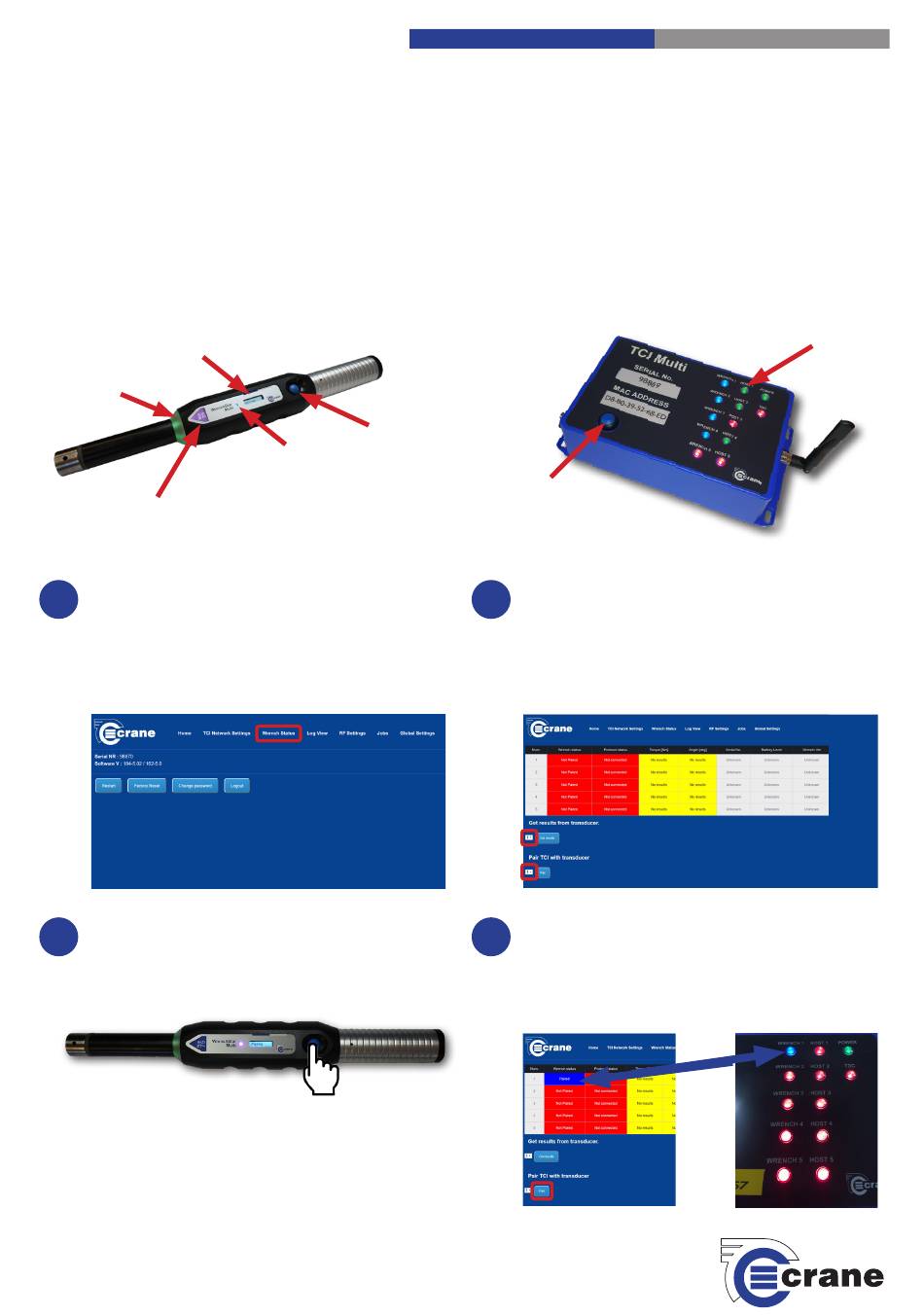

WrenchStar Multi - Pairing Guide
Getting started with your digital torque wrench.

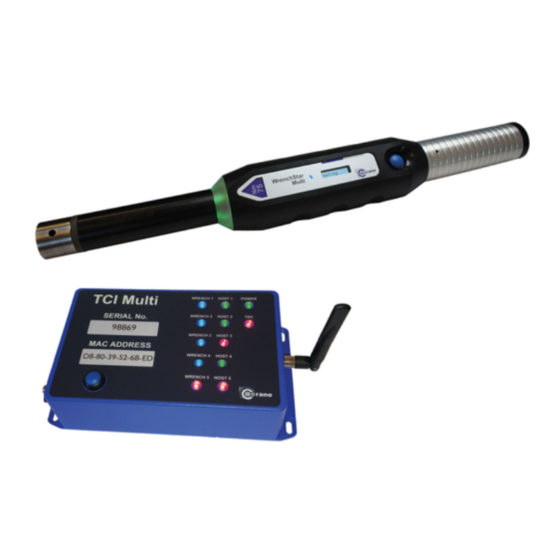

Pairing with a TCI or TCI Multi Line-side Controller

WrenchStar Multi
LED Display
Screen
360
Status
o
Light Ring
WrenchStar Multi
Torque Limit
TCI Home Page
1
On the TCI/TCI Multi web page on your browser, click
on the 'Wrench Status' tab on the main navigation
menu at the top.
Please note. For more information about the initial setup of the TCI/
TCI Multi on your PC, please refer to the TCI Quick Start Guide.
3
Ensure the WrenchStar Multi is in 'pair' mode by
pressing and holding down the blue 'pairing' button on
the wrench until the LED light turns purple.
On/Off and
Pairing Button
LED Light
Reset Button
Select Wrench Number
2
Under the 'Get results from transducer' and 'Pair
TCI with transducer' drop down menus, ensure the
number selected relates to the number of the wrench
that you are pairing to the TCI Multi. e.g. if this is the
first wrench to be paired, select number 1, if it is the
second wrench to be paired, select number 2 etc.
Pair TCI
4
Underneath the 'Pair TCI with transducer' drop down
menu, click 'Pair' and the wrench should connect,
which is confirmed by the LED light turning blue on the
wrench and also on the corresponding wrench number
on the front of the TCI/TCI Multi.
Crane Electronics Ltd
The force in torque management
TCI
Status LEDs
