SERVICE BULLETIN
Copy Part# SB0060, Rev. B, 08/2014
AIR PRESSURE SETTING
RECOMMENDATION
Sustained High Altitude Operations
Sustained operation and servicing of the X45 compressor above
4,000 ft (1219 m) requires the compressor setting be checked and/
or adjusted for proper combustion.
For sustained operation above 7000 feet (2134 m) the compressor
must be adjusted in order to maintain proper combustion.
a) Basic Hand Tools.
b) Proheat Remote Start Switch (P/N 952925K).
c) Proheat Digital Manometer Test Gauge (P/N PK0037).
d) Or Proheat Analog Air Pressure Test Gauge (P/N PK0060).
1. Run heater until warm to the touch. This ensures the heater
components are up to normal operating temperature.
2. Switch heater off.
3. Connect Digital Manometer PK0037 (or analog gauge PK0060)
in-line as shown in figure A.
HOSE TO
NOZZLE AIR
INLET

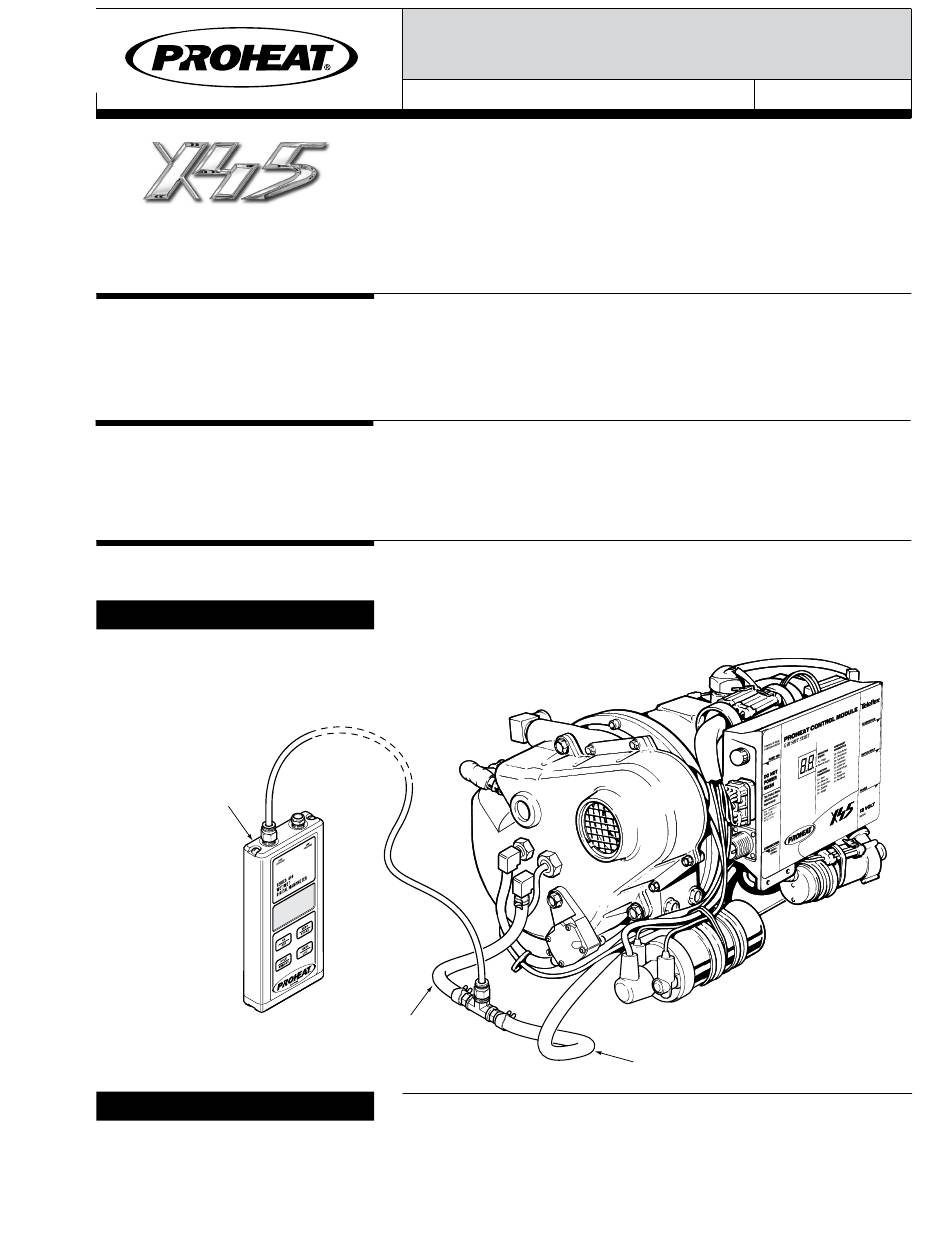

Figure A. Digital Manometer PK0037.
4. Locate the rubber boot on the positive end of the ignition coil and
peel it back to expose the positive terminal.
Page 1 of 3
