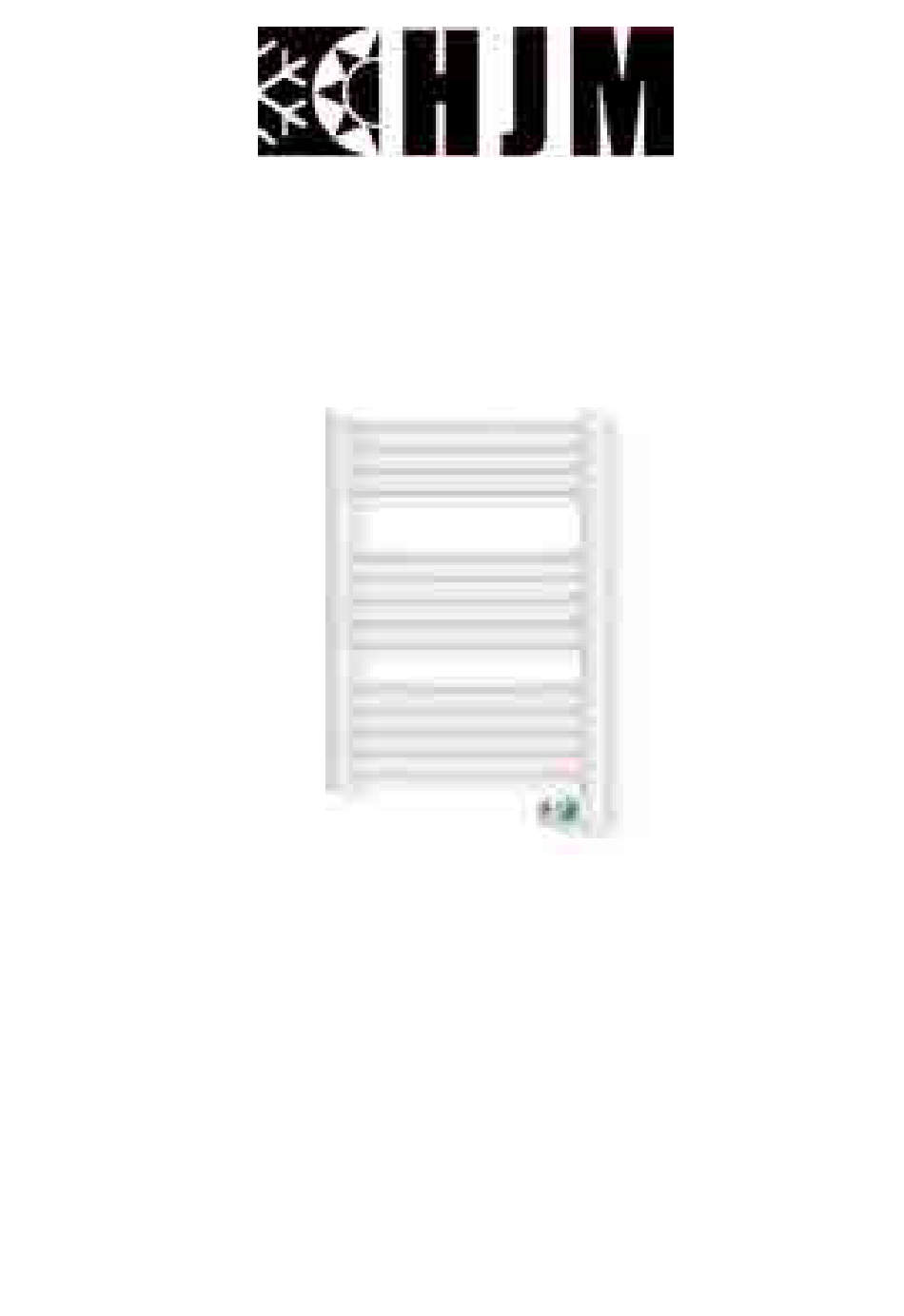

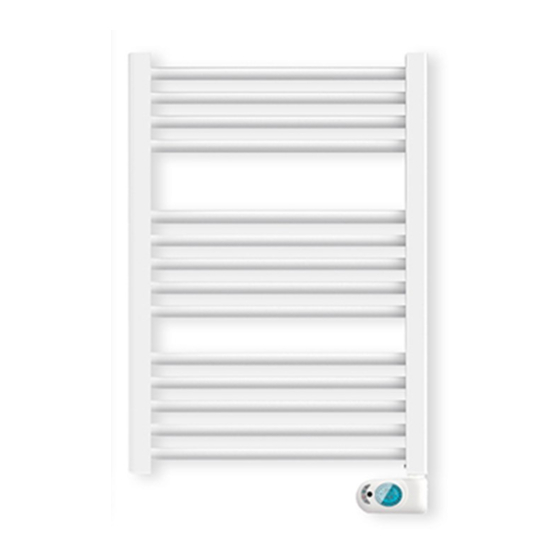

- Page 1 ORIGINAL OPERATING INSTRUCTIONS Read carefully and retain for future reference Towel Rail Model NOOR Type : NOOR500 / NOOR750 1/19 Made in Spain HJM-NOOR_ENG-Rev.2-25-11-2019...
-
Page 2: Important Warnings
10. PRECAUTION: Some parts of this product can reach very high temperatures and cause burns. Pay special attention when children or vulnerable people are around. 11. Do not place the device straight under a power socket. 2/19 Made in Spain HJM-NOOR_ENG-Rev.2-25-11-2019... - Page 3 It must not be used outdoors, in greenhouses or for animal husbandry. Keep it away from heat, direct sunlight, humidity and cutting tools. Do not under any circumstances immerse in water or use this device with wet 3/19 Made in Spain HJM-NOOR_ENG-Rev.2-25-11-2019...
-
Page 4: Installation
Electrical Installations, Section 701. The installation of this appliance within Zones 0 or 1 of a bathroom is totally prohibited. The figure 2 bellow is only for information purposes, we suggest you contact a professional electrician. 4/19 Made in Spain HJM-NOOR_ENG-Rev.2-25-11-2019... -
Page 5: Wall Mounting
3. Drill four holes for 8 mm plugs. 4. Place on the wall the larger diameter brackets ( 26) (as shown in the figure) with the 4 screws for the 8 mm plugs and the corresponding 4 washers (Fig. 2). Fig. 2 5/19 Made in Spain HJM-NOOR_ENG-Rev.2-25-11-2019... - Page 6 6. Insert the brackets ( 19) fixed in the appliance into the brackets ( 26) fixed on the wall and screw the fastening screw of the wall bracket, as shown in figures 4 and 5. Fig. 4 6/19 Made in Spain HJM-NOOR_ENG-Rev.2-25-11-2019...
- Page 7 Fig. 5 7/19 Made in Spain HJM-NOOR_ENG-Rev.2-25-11-2019...
-
Page 8: Technical Characteristics
Check the condition of your electrical installation and connection cables. This appliance doesn't require earthing connection, due it has double electrical insulation. Contact a licensed electrician for assistance. TECHNICAL CHARACTERISTICS Type NOOR 500 NOOR 750 Rated Voltage 230 V~ 230 V~ Rated... - Page 9 In such a case, the device deactivates the heating element for a maximum of 30 minutes or until an increase of the room temperature reveals that the window has been closed. 9/19 Made in Spain HJM-NOOR_ENG-Rev.2-25-11-2019...
- Page 10 " Stb" are displayed. NOTE: When the device goes into "Stand-by" mode it beeps twice for 0.5s. When the device is activated it beeps once for 1s. 10/19 Made in Spain HJM-NOOR_ENG-Rev.2-25-11-2019...
-
Page 11: Operating The Device
-Set the desired temperature through [+] and [-] buttons. ANTIFREEZE MODE In "Antifreeze" mode the temperature is fixed to 7°C. The device activates the heating element when the room temperature falls below 7°C. It is suggested to set 11/19 Made in Spain HJM-NOOR_ENG-Rev.2-25-11-2019... - Page 12 - On the upper part of the display the message “Set” will be displayed - To set the day and time press the [+] button until the bottom part of the display the message “TED” is displayed (see picture). 12/19 Made in Spain HJM-NOOR_ENG-Rev.2-25-11-2019...
- Page 13 For each hour of the day, it is then possible to assign either the “Comfort” temperature (full bar indication displayed) by pressing the [+] button or the “Night” temperature (empty bar) by pressing the [-] button (see picture). 13/19 Made in Spain HJM-NOOR_ENG-Rev.2-25-11-2019...
- Page 14 - Enter into “Stand-by” mode. - Press the [+] button for 3 seconds. - Press the [+] button to activate / deactivate the function - Press the [Prog] button to commit and return into “Stand-by” mode. 14/19 Made in Spain HJM-NOOR_ENG-Rev.2-25-11-2019...
-
Page 15: Maintenance
You can use a vacuum or flexible brush to clean the air grilles. This maintenance must be carried out regularly to ensure optimum performance. Ensure the radiator is totally dry before turning it back on. 15/19 Made in Spain HJM-NOOR_ENG-Rev.2-25-11-2019... - Page 16 EU Declaration of Conformity Towel Rail Product: Trademark: NOOR 500, NOOR 750 Models: Mx YYDDD-XXX Batch & Serial No.: (1) Explanation of code "Lot & Serial No." Batch = Mx YYDDD; where: Mx = Assembly Line No. YY = year (15,16,17...99) DDD = Correlative day (001,..., 365) Serial No.
- Page 17 Models: NOOR Item Value Unit Item Unit Symbol Type of heat output/room temperature Heat output control (select one) single stage heat output 0.75 Nominal heat and no room temperature output control Maximum more manual 0.75 max,c continuous heat stages, room...
- Page 18 ES-37184 Villares de la Reina . Salamanca . Spain +34 923 222 277 - +34 923 222 282 details Fax: +34 923 223 397 Web: www.calorhjm.es ESB-37295664 Requirements regarding ecodesign for local heating: = -10%+F(1)+F(2)+F(3)-F(4)-F(5) S,on = 40 -10%+0+7+2-0-0 = 39% Made in Spain 18/19 HJM-NOOR_ENG-Rev.2-25-11-2019...
- Page 19 HERMANOS JULIAN M., S.L. Usine: Gutenberg,91-93 Polígono Industrial “Los Villares” ES-37184 Villares de la Reina . Salamanca . Spain +34 923 222 277 - +34 923 222 282 Fax: +34 923 223 397 Web: www.calorhjm.es ESB-37295664 19/19 Made in Spain HJM-NOOR_ENG-Rev.2-25-11-2019...
