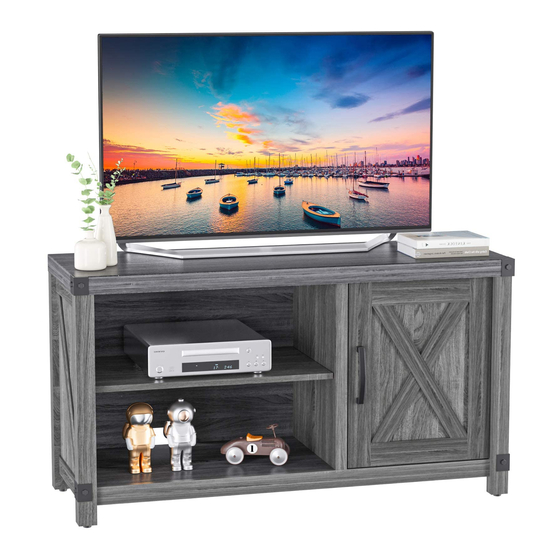

- Page 1 TV Stand Instruction Manual V1.0 Model: APRTS03L/APRTS03D Thank you for choosing this Alphamount product! At Alphamount we strive to provide you with the best quality products and services in the industry. Should you have any issues, please don't hesitate to contact at...
- Page 2 Tools Needed (Not lncluded) Phillips Screwdriver Supplied Parts and Hardware ① ⑥ ③ ⑧ ⑤ ④ ② ⑦ ⑩ ⑪ ⑫ ⑨ Cam Fitting Wood Dowel Screw Screw ø8*30mm Cam Nut Door Stopper 3x12mm 3x12mm Screw 18PCS 17PCS 2PCS 20PCS 17PCS Bolt Screw...
- Page 3 Secure the cam fitting screw [A] and wood Finally insert the cam nut [C] into the hole dowel [B] into the board. and rotate until it is firmly locked. STEP 1 ⑤ ⑩ Make sure the rim of the board ⑩ faces arrow direction ⑤...
- Page 4 STEP 2 ⑪ ⑫ ② A*3 B*2 C*3 Phillips Screwdriver ⑪*1 ⑫*1 (Not lncluded) STEP 3 ⑥ ⑦ A*4 B*6 C*4 Phillips Screwdriver ⑥*1 ⑦*1 (Not lncluded) - 4 -...
- Page 5 STEP 4 ① ① A*6 B*6 C*6 D*1 E*2 Phillips Screwdriver ①*1 (Not lncluded) - 5 -...
- Page 6 STEP 5 Attach the board [8] to the stand. Then secure the top 4 screws to the stand first, then secure the side and bottom screws. ⑧ Cables F*20 Phillips Screwdriver (Not included) ⑧*1 (Not lncluded) - 6 -...
- Page 7 STEP 6 3 Options ③ ④ ③*1 ④*1 STEP 7 ⑨ H*2 I*4 J*2 K*1 Phillips Screwdriver ⑨*1 (Not lncluded) - 7 -...
- Page 8 STEP 8 ⑨ If the stand is not stable on the flat floor, please adjust the leveler on the two front legs and center leg until the stand is stable. Tighten Turn the set screw [S] clockwise to narrow the gap between the door with side leg.
