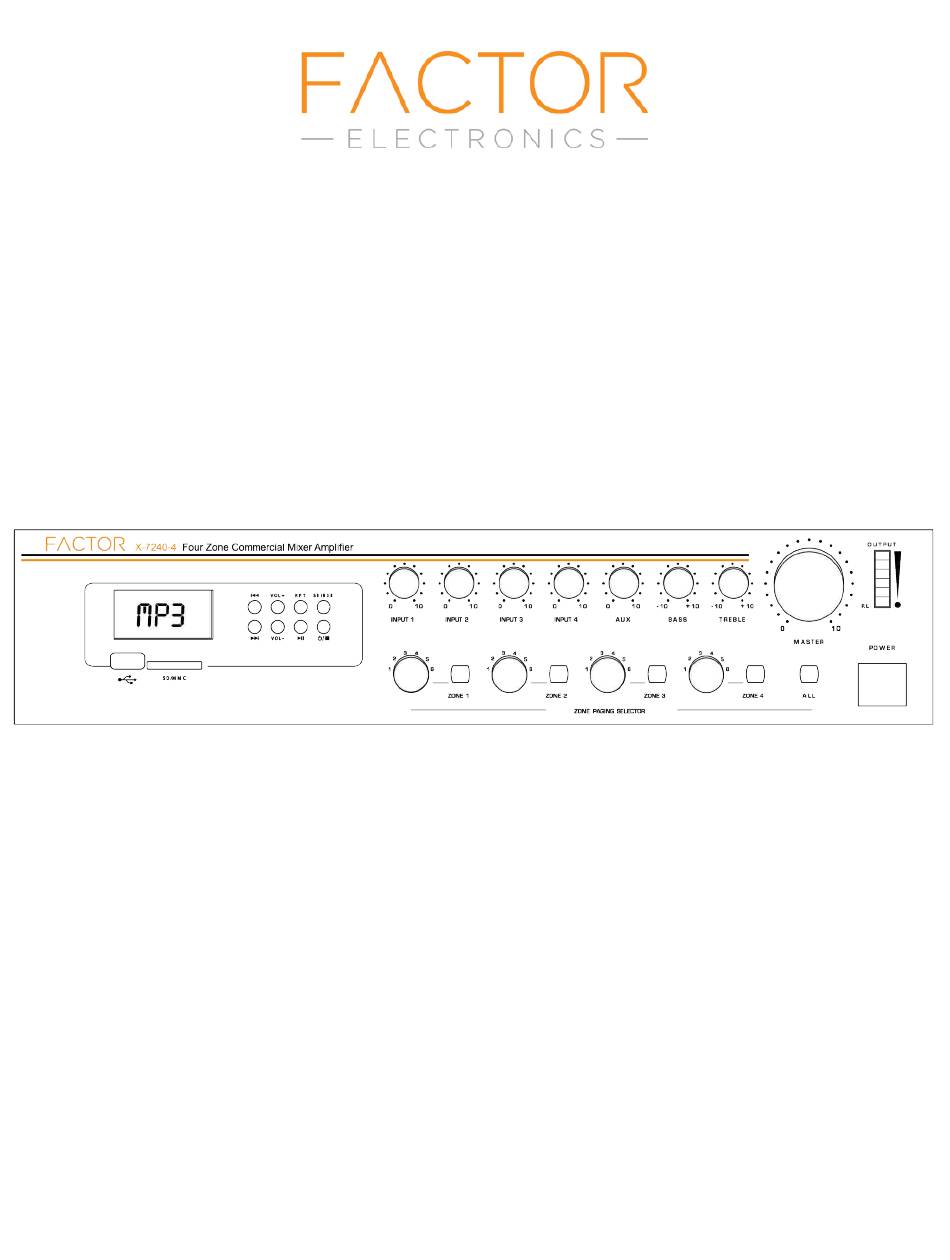

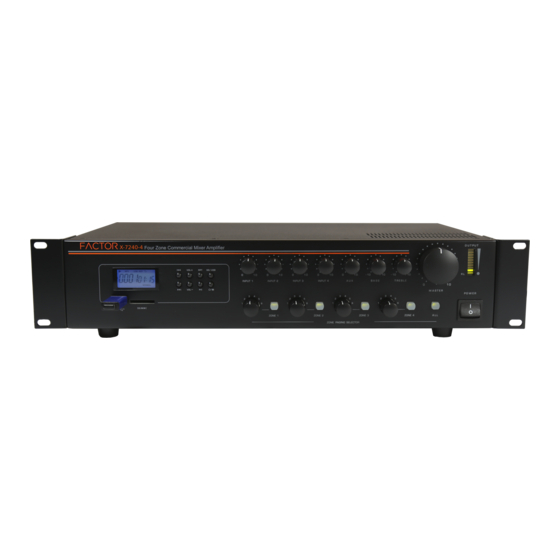

- Page 1 PREMIUMAUDIOVIDEOANDPOWERPRODUCTS X-7240-4 & X-7120-4 Four ZoneCommercial Mixer Amplifiers Owners Manual info@factorelectronics.com www.factorelectronics.com...
-
Page 2: Important Safety Instructions
IMPORTANT NOTE: THIS OWNER'S MANUAL IS PROVIDED AS AN INSTALLATION AND OPERATING AID. FACTOR ELECTRONICS DOES NOT ASSUME ANY RESPONSIBILITY AS TO ITS ACCURACY AND SHALL NOT BE LIABLE IN TORT OR CONTRACT FOR ANY DIRECT, CONSEQUENTIAL OR INCIDENTAL LOSS OR DAMAGE ARISING FROM THE INSTALLATION, USE OR INABILITY TO USE THIS PRODUCT. - Page 3 Introduction Congratulations and thank you for purchasing Factor Electronics products. The Factor Electronics X-Series mixer amplifiers are designed and built to provide ultra reliable performance for professional background music and paging applications. Factor Electronics X-Series amplifiers feature a front panel MP3 player equiped with USB and SDD card inputs, ultra low noise components, flexible expansion options with the V-RVC-PRO and X-Music accessories.
- Page 4 Quick Start Guide Diagram A 1 Connect a music source to the AUX input 2 Connect a transformer coupled 70V speaker to the C and 70V terminals 3 After all your connections are made plug the AC power cord in 6 Adjust the master volume 5 Adjust the AUX volume 4 After all your connections are made...
- Page 5 1-4 outputs any individual zone can have a maximum of 120 watts / 70V (X-7240-4) and 60 watts (X-7120-4) connected and all speakers in all zones combined cannot exceed 240 watts at 70V (X-7240-4) and 120 watts (X-7120-4).
- Page 6 MP3 Player – The X-7240-4 / X-7120-4 is equiped with an MP3 player that is capable of playing Music stored on USB thumb drives or SD/MMC digital storage cards. This is an excellet way to play non-stop commercial free background music from your music library.
- Page 7 NOTE: Rear Panel color coding GREEN = Input Rear Panel Operations and Connections RED = Output Input 1 Input 1 is a priority input. This input functions the same as the other input channels but offers some added features suitable for paging microphones.
- Page 8 CAUTION: Never connect 4ohm, 8ohm or 25V speakers to the 70V or 100V terminals. This can cause amplifier failure and void your warranty. If you are unsure how to connect this amplifier to your speakers call or e-mail Factor Electronics for technical support prior to making any connections.PH: 778-800-1918 info@factorelectronics.com.
- Page 9 Connect the zone outputs exactly the same as the main outputs using the common COM as the negative – and the Z1/Z2/Z3/Z4 as the positive +. The X-7240-4 is a 240 watt amplifier. Never connect a speaker load that exceeds 240 watts in total. (ALL OUTPUTS COMBINED) CAUTION: Each zone is capable of a maximum of 120 watts and a maximum of 240 watts all zones combined.
- Page 10 Rear Panel Operations and Connections info@factorelectronics.com www.factorelectronics.com...
- Page 11 Rear Panel Operations and Connections EXPAND THE INPUTS – It is possible to expand the inputs of the X-7240-4 using the V-RVC-PRO (remote mic/line mixer) and the X-Music (in-wall iPod Smart Phone dock). The V-RVC-PRO is capable of expanding the X-7240-4 inputs to a maximum of 12 over Cat5/6 cable.
- Page 12 X-7240-4 Warranty Factor Electronics amplifiers are warranted to be free from defects in workmanship and materials for a period of three (3) years from the date of purchase without charge for parts or labour. This warranty applies only to the original owner. The owners responsibilities are to provide proof of purchase from an authorized Factor Electronics dealer/distributor and transportation to the dealer/distributor the unit was purchased from or Factor Electronics.
