Summary of Contents for MSB Technology M205

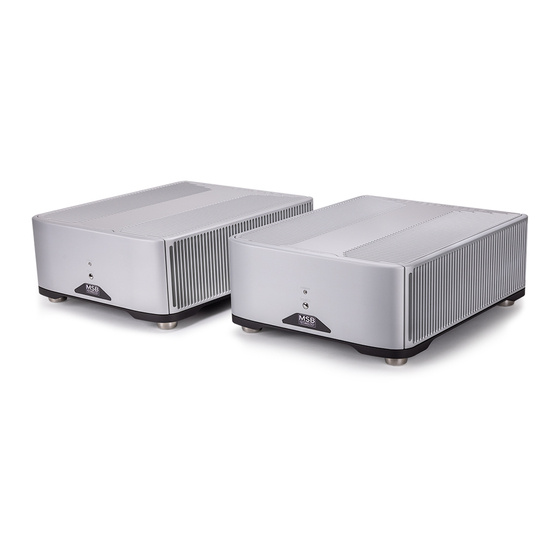

- Page 1 The M205 Mono Amplifier User Guide Check our website for the most recent user guides, firmware, and drivers: www.msbtechnology.com Technical support email is: techsupport@msbtech.com 12.14.2021...
-
Page 3: Technical Specifications
Technical specifications Static Power 90 Watts On Consumption Standby power less than 2 watts Input 1x XLR Input Output 2x Binding post set per channel Cont. Power Output (8Ω) 220 W < 1% distortion Cont. Power Output (4Ω) 400 W <... - Page 4 Width: 24 in (610 mm) (Per Chassis) Depth: 28.25 in (718 mm) Height: 16.5 in (419 mm) Weight: 137 lbs (62 kg) Included Accessories User Manual IEC C19 Power Cord M205 amplifier front controls STANDBY POWER TECHNOLOGY Power Control Display Brightness Power Delay...
-
Page 5: Amplifier Interface
Amplifier Interface There are two buttons on the front of the amplifier as well as three control features just under the front of the amplifier. Display Modes All display modes will be displayed at full brightness when a display status is changed and then fade to the brightness set by the user. -
Page 6: Connecting To Your Amplifier
Each M205 is equipped with two sets of output lugs for easy setup or to be used in a dual connection bi-amp setup. Connect your speakers to the desired set of lugs. - Page 7 12 Volt Remote Trigger This amplifier is equipped with a remote trigger for use with other MSB products. The trigger uses a 3 pin mini jack. When any MSB product is turned off, the other products connected will also turn off and vice- versa.
-
Page 8: Technical Support
Technical Support If you are experiencing any issues with your MSB product, please contact your nearest dealer or try our support page at www.msbtechnology. com/support. Please be sure you have the most current edition of your products firmware installed. If your issue persists please feel free to contact MSB directly. - Page 9 The M205 Mono Amplifier Limited Warranty Warranty includes: • MSB warrantys the unit against defects in materials and workman- ship for a period of 5 years from the date the unit was originally shipped from MSB. • This warranty covers parts and labor only, it does not cover shipping charges or tax/duty.
