GE iTwinkle Light Use And Care Instructions page 2

IMPORTANT!
Read Carefully
Keep for future use
7.5 ft. / 2.2 m Pre-Lit Christmas
Tree with Pre-shaped Technology
Allows tree branches to spring into shape
Just assemble and decorate!
With proper use and care, your tree will provide years of use and memories.
Carefully follow the instructions below on how to assemble and disassemble
your tree. If you should have any problems with your tree, or if the tree does
not light after assembly, DO NOT return it to the place of purchase. Please
refer to the trouble shooting section of this manual or call our toll free number:
1-877-398-7337 and a customer service representative will assist you. Our
customer service center is open Monday through Friday 10:00 AM to 7:00
PM EST with additional hours throughout the holiday season. You can also
visit us on the web at:
www.geholidaylighting.com
Enjoy your holidays!
Before you Begin:
The tree needs to be placed in a clear area, on a flat surface with no obstructions.
∗
Remove and unwrap all parts. Retain shipping carton for future storage.
∗
Preassembly:
Refer to the iTwinkle TREE™ Assembly Diagram.
∗
Loosen thumbscrew in stand for legs to open and pole to insert.
∗
Place stand where desired as assembled tree is heavy to move.
∗
Disclaimer: DO NOT USE OR INSTALL ANY ADDITIONAL CHRISTMAS
LIGHTING OR ORNAMENTATION THAT IS POWERED BY A LIGHT BULB
SOCKET. DOING THIS MAY RESULT IN DAMAGE TO YOUR CHRISTMAS
TREE OR CAUSE PERSONAL INJURY. DOING THIS, WILL RESULT IN A
VOID OF THE LIMITED WARRANTY OF THIS PRODUCT.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
▪ this device may not cause harmful interference, and
▪ this device must accept any interference received, including interference that
may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
＊ R eorient or relocate the receiving antenna.
＊ I ncrease the separation between the equipment and the receiver.
＊ C onnect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
＊ C onsult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any Changes or Modifications not expressly approved by
the party responsible for compliance could void user's authority to operate
this equipment. This transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated
with minimum distance 20cm between the radiator & your body.

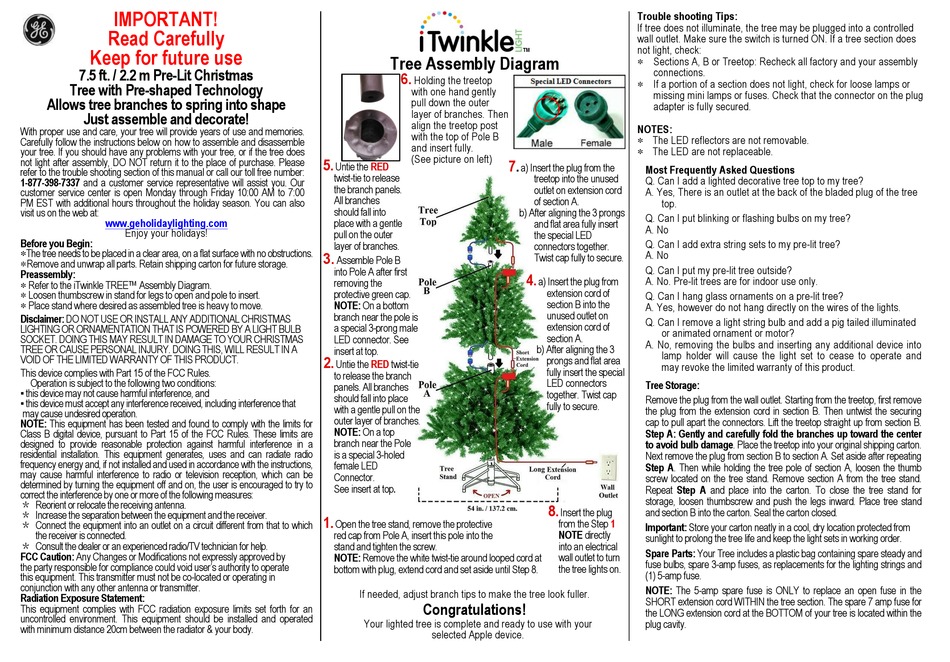

Tree Assembly Diagram
6.
Holding the treetop
with one hand gently
pull down the outer
layer of branches. Then
align the treetop post
with the top of Pole B
and insert fully.
(See picture on left)
5.
Untie the RED
.
twist-tie to release
the branch panels.
All branches
should fall into
place with a gentle
pull on the outer
layer of branches.
3.
A ssemble Pole B
into Pole A after first
removing the
protective green cap.
NOTE: On a bottom
branch near the pole is
a special 3-prong male
LED connector. See
insert at top.
2.
U ntie the RED twist-tie
to release the branch
panels. All branches
should fall into place
with a gentle pull on the
outer layer of branches.
NOTE: On a top
branch near the Pole
is a special 3-holed
female LED
Connector.
See insert at top.
1.
Open the tree stand, remove the protective
red cap from Pole A, insert this pole into the
stand and tighten the screw.
NOTE: Remove the white twist-tie around looped cord at
bottom with plug, extend cord and set aside until Step 8.
If needed, adjust branch tips to make the tree look fuller.
Congratulations!
Your lighted tree is complete and ready to use with your
selected Apple device.
Trouble shooting Tips:
If tree does not illuminate, the tree may be plugged into a controlled
wall outlet. Make sure the switch is turned ON. If a tree section does
not light, check:
TM
Sections A, B or Treetop: Recheck all factory and your assembly
∗
connections.
If a portion of a section does not light, check for loose lamps or
∗
missing mini lamps or fuses. Check that the connector on the plug
adapter is fully secured.
NOTES:
The LED reflectors are not removable.
∗
The LED are not replaceable.
∗
7.
a ) Insert the plug from the
Most Frequently Asked Questions
treetop into the unused
Q. Can I add a lighted decorative tree top to my tree?
outlet on extension cord
A. Yes, There is an outlet at the back of the bladed plug of the tree
of section A.
top.
b) After aligning the 3 prongs
Q. Can I put blinking or flashing bulbs on my tree?
and flat area fully insert
A. No
the special LED
Q. Can I add extra string sets to my pre-lit tree?
connectors together.
A. No
Twist cap fully to secure.
Q. Can I put my pre-lit tree outside?
4.
A. No. Pre-lit trees are for indoor use only.
a ) Insert the plug from
extension cord of
Q. Can I hang glass ornaments on a pre-lit tree?
section B into the
A. Yes, however do not hang directly on the wires of the lights.
unused outlet on
Q. Can I remove a light string bulb and add a pig tailed illuminated
extension cord of
or animated ornament or motor?
section A.
A. No, removing the bulbs and inserting any additional device into
b) After aligning the 3
lamp holder will cause the light set to cease to operate and
prongs and flat area
may revoke the limited warranty of this product.
fully insert the special
LED connectors
Tree Storage:
together. Twist cap
Remove the plug from the wall outlet. Starting from the treetop, first remove
fully to secure.
the plug from the extension cord in section B. Then untwist the securing
cap to pull apart the connectors. Lift the treetop straight up from section B.
Step A: Gently and carefully fold the branches up toward the center
to avoid bulb damage. Place the treetop into your original shipping carton.
Next remove the plug from section B to section A. Set aside after repeating
Step A. Then while holding the tree pole of section A, loosen the thumb
screw located on the tree stand. Remove section A from the tree stand.
Repeat Step A and place into the carton. To close the tree stand for
storage, loosen thumbscrew and push the legs inward. Place tree stand
8.
Insert the plug and section B into the carton. Seal the carton closed.
from the Step 1
Important: Store your carton neatly in a cool, dry location protected from
NOTE directly
sunlight to prolong the tree life and keep the light sets in working order.
into an electrical
Spare Parts: Your Tree includes a plastic bag containing spare steady and
wall outlet to turn
fuse bulbs, spare 3-amp fuses, as replacements for the lighting strings and
the tree lights on.
(1) 5-amp fuse.
NOTE: The 5-amp spare fuse is ONLY to replace an open fuse in the
SHORT extension cord WITHIN the tree section. The spare 7 amp fuse for
the LONG extension cord at the BOTTOM of your tree is located within the
plug cavity.
