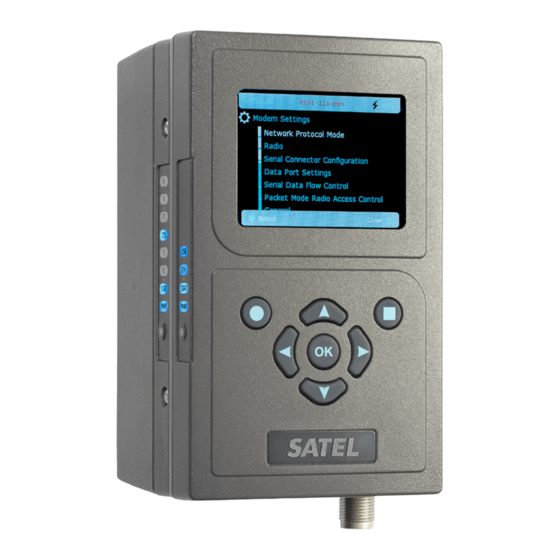

SATEL XPRS Optimum IP radio router
• SATEL XPRS Optimum with encryption (YF0410)
• SATEL XPRS Optimum without encryption (YF0415)
Technical specification
Subject
Frequency range
Tuning range
Channel spacing
Modulation
Interface
Operating voltage
Max. power consumption RX / TX
Modulation/ Air speed / Sensitivity
(BER 10E-3)
Max. TX power (nominal)
Connectors
Size RU+CU H x W x D (LED side view)
Weight
Configuration of the technical parameters is easy with SATEL NETCO, centralized configuration
software.
NOTE! Web user interface for configuration and diagnostics is available only for standard
XPRS IP radios
Value
360 ... 445 MHz
45 MHz (360 – 405 / 400 – 445)
12.5 / 25 kHz selectable
2, 4, 8, 16 QAM
Upgradable: 32 and 64 QAM
Ethernet, RS-232, RS-422/485
+10.6 ... +30 Vdc
5.2 W / 15.8 W
4QAM: 40.3 kbps @ 25 kHz / -111 dBm
4QAM: 20.2 kbps @ 12.5 kHz / -113 dBm
16QAM: 80.6 kbps @ 25 kHz / -105 dBm
16QAM: 40.3 kbps @ 12.5 kHz / -106 dBm
37 dBm (5 W)
Mean: Average 30 dBm (1 W), max. 32 dBm (1.5 W)
PEP: Average 37 dBm (5W), max. 38 dBm (6.6 W)
Power, RF (TNC female), ETH (RJ45), USB-A, USB-B,
2 x D9 female
130 x 77.2 x 76.5 mm
940 g
SATEL
Advertisement
Table of Contents
Related Manuals for Satel XPRS Optimum
Summary of Contents for Satel XPRS Optimum
- Page 1 Size RU+CU H x W x D (LED side view) 130 x 77.2 x 76.5 mm Weight 940 g Configuration of the technical parameters is easy with SATEL NETCO, centralized configuration software. NOTE! Web user interface for configuration and diagnostics is available only for standard SATEL...
- Page 2 LEDs Description Receive data over radio Transmit data over radio Description Request To Send, serial interface (for USB-A) Blinking: not connected. ON: connected Clear To Send, serial interface Blinking: not connected. ON: connected Transmit Data, serial interface STAT ON: power is on. Blinking: unit starting Receive Data, serial interface ON: power connected STAT...
- Page 3 Pinning order for SATEL XPRS Optimum RS-232 interface Pin nr Pin name Pin description Carrier Detected. See the radio unit user guide chapter 6.6.2 Receive Data: data traffic from the RU to the DTE Transmit Data: data traffic from the DTE to the RU...
- Page 4 Declaration of Conformity –certificates are available from the manufacturer’s web site: www.satel.com NOTE! This is a short form user guide for SATEL XPRS Optimum IP radio router. Complete user guides for central and radio unit are available on SATEL web site.
