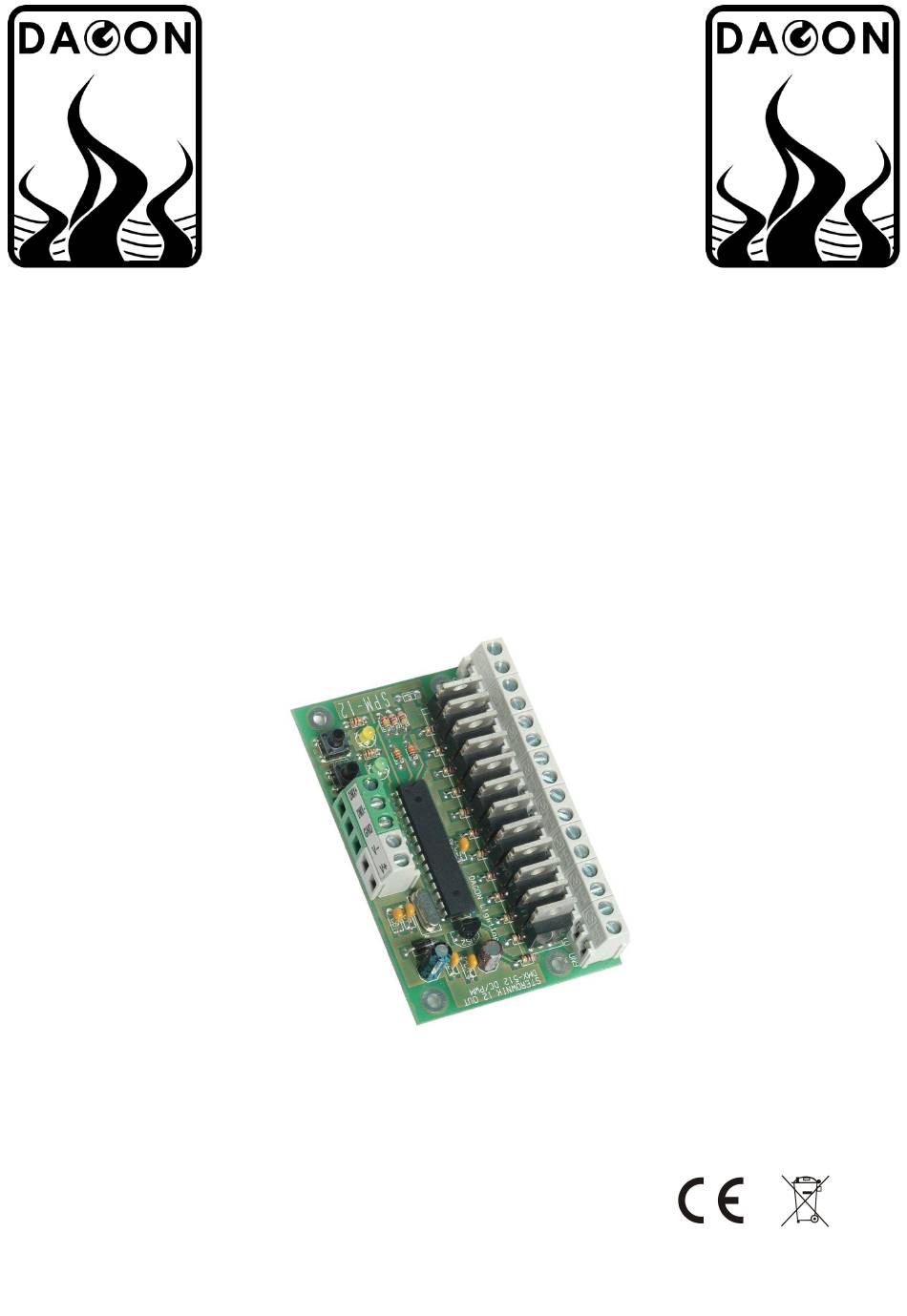

- Page 1 Firma DAGON 64-100 Leszno Jackowskiego 24 Street mob. 00 48 664-092-493 dagon@iadagon.pl www.iadagon.pl www.dagonlighting.pl Product series DAGON Lighting SPM-12 DMX-512 controller – 12 OUT DC / PWM MANUAL INSTRUCTION...
- Page 2 3. Safety and correct conditions of using SPM-12 controller 4. SPM-12 Technical data List of tables. Tabel 1. List of configuration codes and their associated control functions for the SPM-12 driver List of figures. Fig 1. General arrangement and dimensions of the SPM-12 driver...
- Page 3 On the Figure 1 the proper way of wiring the power supply and receiver – LED diodes to control SPM-12 is shown. Remember to pick up the power cables of sufficient diameter relative to a flowing current - bold lines in Figure 1.
- Page 4 This is the correct action from the user part. 2.1. Methods of entering the codes to SPM-12 controller. To enter the code to the driver SPM-12 button CODE need to be pressed. The green diode will light off and the yellow one will light on.
- Page 5 If you forget the function the code need to be re-enter. However, reading the DMX address value can be very useful, that is why there was introduced the possibility of viewing the address in the driver SPM-12, see point 2.2. 2.2. Preview of DMX address SPM-12 driver.
- Page 6 2.3. Description of configuration codes of SPM-12. Basic steering codes which need to be set-in to SPM-12 controller is the address of DMX controller, it means one code form range 001 to 512. When user enter any code from 001 to 512 it will cause automatic change the previous value form this range and memorize new address od DMX in memory controller.
- Page 7 Q1-Q12 data from the received signal DMX-512 (except when code 610 is entered forcing the driver SPM-12 to work without the DMX signal). The way of response of SPM-12 driver for DMX signal loss for the individual codes is described in Table 1.
- Page 8 SPM-12 driver close to the rapidly rotating equipment or it’s elements; it may cause the stroboscope’s effects what may cause the stillness effect on the rotating equipment’s which is light by impulse lights;...
