iPixel LED Light S010030CB3SB7 Installation Instructions

30pixel 12v addressable led strip
Hide thumbs
1
2
3
4

Advertisement

Table of Contents

R
iPixel LED Light Co

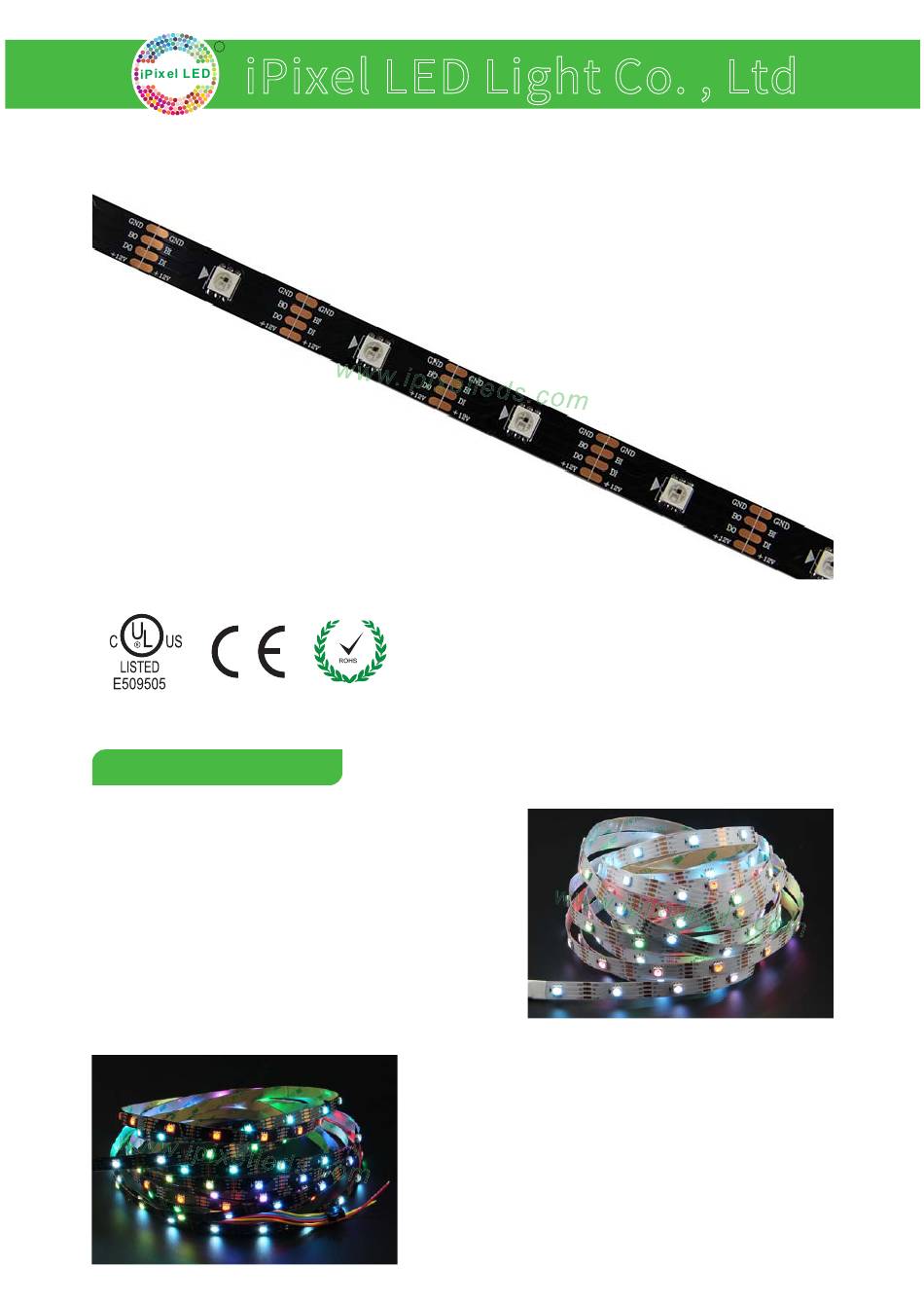

Product Description

This is a new chip again from worldsemi family , based on
WS2812B and WS2813.
To solve the chip breakdown and Strip's Voltagedrop ,
now we welcome WS2815.
The Flex is 30 Pixel/ LED per meter ,and 5 m in
a roll we provide black and white color board.same as
our other addressable tapes, it'scut-able per unit LED
with a large soldering Padwhich makes easy to re-solder
again.

30Pixel 12V Addressable LED Strip


the PCB printed +12V DI ,BI, GND , both DI and BI
means signal but it's only required to link the DI
cable to your controller.
this PCB made by 3Ounce copper for more reliable
application.
3 M tape attached on backside of strip.
- again we suggested you power it every 5 meters even
it's 12V addressable.
.,
Ltd

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S010030CB3SB7 and is the answer not in the manual?

Questions and answers

Related Manuals for iPixel LED Light S010030CB3SB7

Summary of Contents for iPixel LED Light S010030CB3SB7

  • Page 1 LED Light Co ., 30Pixel 12V Addressable LED Strip Product Description This is a new chip again from worldsemi family , based on WS2812B and WS2813. To solve the chip breakdown and Strip's Voltagedrop , now we welcome WS2815.
  • Page 2 LED Light Co ., Product Datasheet S010030CB3SB7 ProductNumber Light Source WS 2815 RGB BeamAngle 120° LEDQuantity 30leds/m Emitting Color Full color Wavelength R:635nmG:510nmB:470nm PCB color White/Black Operating Voltage DC12V Power(W) 6W/M (Max) Size(mm) L 5000* W 10 IP20/IP65 Net Weight 0.13kg/roll...
  • Page 3 LED Light Co ., Curve Lune Diagram2: Bend Curve Installation Cut in specific location Put the PCB in the space between Close the cover of connector clip and connector, make the clips exactly aim at welding point Peel off 3M tape...
  • Page 4 LED Light Co ., Outline Dimension (unit:mm) Connection RGBLEDstriplight 220/110V AC LED Controller NOTES 1.Please apply different IP rate products according to different environment conditions; 2.Only install with Class 2 power unit 3.Do not install it when power is on.Before powering on,please make sure the wiring is correct;...
