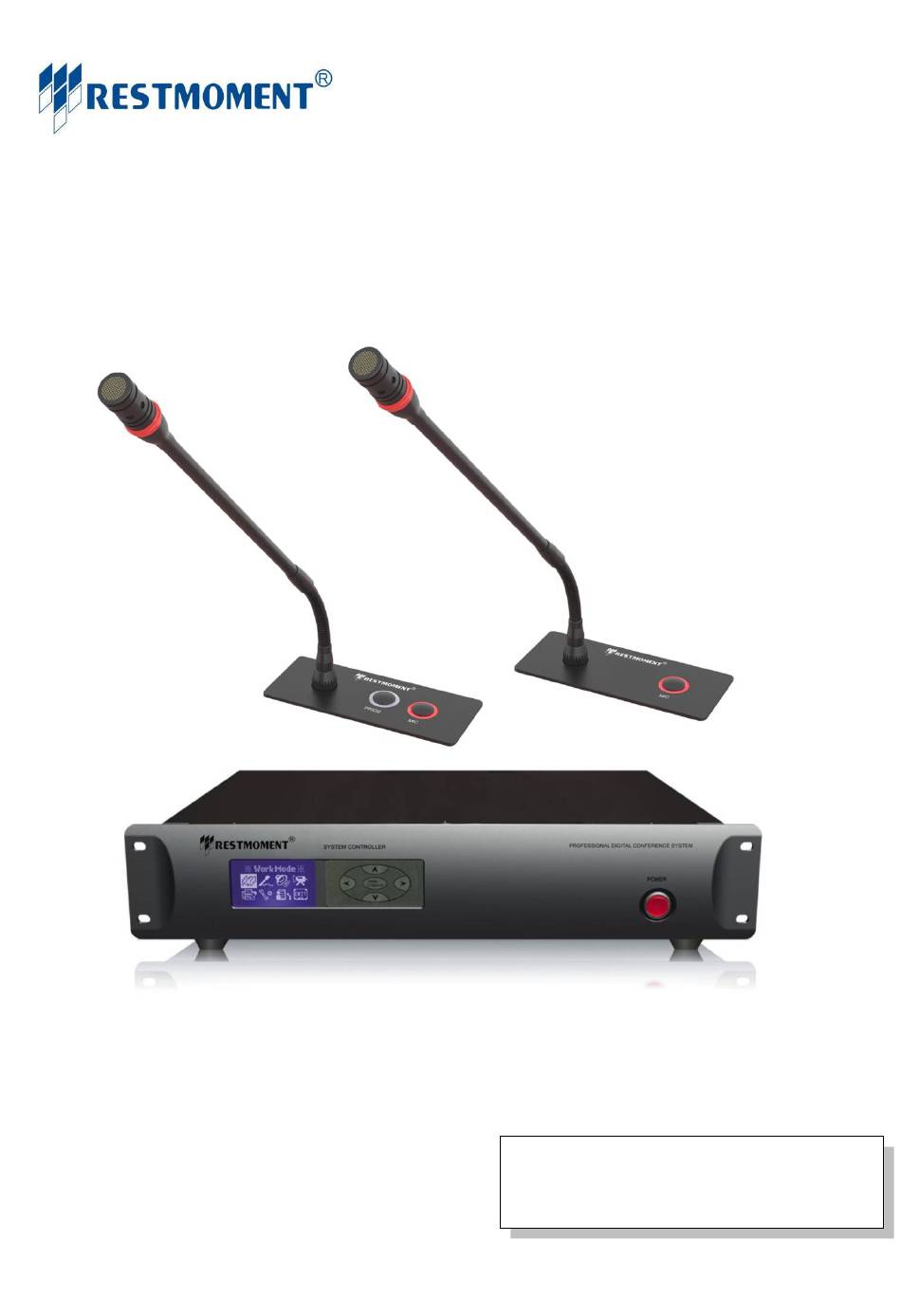

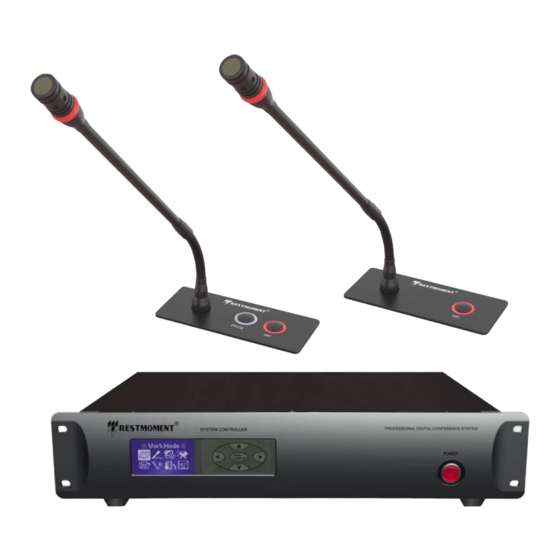

- Page 1 Restmoment ALL Digital Conference System (Restmoment RX-3100 series embedded conference system) Installation and Operating Manual V1.1(20150127)
-
Page 2: Table Of Contents
WWW.RESTMOMENT.COM Contents PART 1 SAFETY OPERATION ..........................- 3 - 1.1 S ................................- 3 - AFETY PERATION PART 2 SYSTEM COMPONENT ............................- 4 - 2.1 S ............................... - 4 - YSTEM OMPONENT PART 3 ALL DIGITAL CONFERENCE CONTROLLER ....................- 5 - 3.1 S... -
Page 3: Part 1 Safety Operation
Safety Operation 1.1 Safety Operation Firstly, thank you very much for using RESTMOMENT conference system. To make sure safety of equipment and user, please read this safety instruction carefully before installing and using, and operate seriously according to this manual. Also please keep this safety instruction for future reference. Notices are as below: Wiring during installation must follow national electric safety standards, national fireproofing regulations and all related local regulations. -
Page 4: Part 2 System Component
PART 2 System Component 2.1 System Component RX-3100 Embedded conference Main unit RX-M3100V Main unit Embedded unit RX-C3100 Chairman unit RX-D3100 Delegate unit RX-1-4 Cable distribution Accessories RX-MBVS PC software RX-6P 6 pin cable RJ-45 5 cat cable... -
Page 5: Part 3 All Digital Conference Controller
LCD display.. Conference controller 3.1.1 Function and feature Restmoment original conference technique, compliant to IEC60914. Control all the conference functions by navigation keyboard on front panel Adopt high speed RISC Embedded hardware structure, more reliable, faster. -
Page 6: Technical Parameter Of Conference Main Controller
WWW.RESTMOMENT.COM Cooperating with conference management software, the system can have more functions with easier operation. 3.1.2 Technical Parameter of conference main controller Model All digital conference main controller Parameter Working power Two models： AC100～120V, 8A AC220～240V, 4A Power Depends on the quantity of connecting units: Single unit 25W, Maximum 420W... - Page 7 WWW.RESTMOMENT.COM 3.2 Front panel 1、 Mounting hole for 19 inch stand Front panel of main controller. Aluminum Alloy 2、 LCD screen, can adjust the brightness and contrast. 3、 5-dimensional direction operation、control key 4、 5、 Switch, with electrifying indicator. Mounting hole for 19 inch stand 6、...
- Page 8 WWW.RESTMOMENT.COM amplifying system or recording system 10、RCA Audio interface ( LINK IN ): Input interface of the third sound source 11、6.3mm MIC input socket 12、Cannon balance interface MIC, connect MIC RX-M3100V Back panel （Fit with the function of video host） ：...
-
Page 9: Controller Adjustment
WWW.RESTMOMENT.COM 3.2 Controller Adjustment When turn on the switch, system controller automatic test and recovery facility. 3.2.1 Starting initialization 1．System controller interface and key operation: System controller operate interface Four-dimensional key “up” Four-dimensional key “down” Four-dimensional key “left” Four-dimensional key “right”... -
Page 10: New System Adjustment Step
WWW.RESTMOMENT.COM Work mode: setup unit work mode. Speaker set: setup output and input volume. Video-tracing: setup panorama/unit video tracing. System setup: unit NO、chairman unit、LED setup、language、IC card and speech count down time. Help: system version No. Exit: Exit system menu. 3.2.3 New system adjustment step 3.2.3.1 Adjustment steps... - Page 11 WWW.RESTMOMENT.COM Notice: System need re-edit ID No in below instance 1、 Setup new system 2、 Move、change、add or delete units 3、 There is same ID number for 2 or more units. 4、 There is no ID number for unit. 5、 ID number is over the total quantity on main controller.
- Page 12 WWW.RESTMOMENT.COM New vote: setup vote conference event, enter vote interface, press “start”. More than 10 vote modes could be selected. see below Figure New poll: setup poll conference event, enter poll interface, press “start”. Many poll modes could be selected, for instance, 5 elect 4, see below Figure Result Display: enter result display interface, could see vote、sign in and poll result.
- Page 13 WWW.RESTMOMENT.COM Vote result inquiry Poll result inquiry Meeting Setting: setup count-down time and count rule, see below Figure Back: back to previous menu 3.2.3.3 Setup work mode in controller Press enter system main menu and work mode interface, see below Figure: This menu include: Limit mote: set the number of delegates permitted to speak at the same time.
- Page 14 WWW.RESTMOMENT.COM FIFO mode: microphone key control with override of the active microphones. see below Figure Apply mode: microphone key with request –to-speak registration (AUTO). see below Figure Voice mode: voice-activated microphones with selectable threshold. see below Figure Notice: Only can choose 1 from 4 modes. Executive chairman and Chairman unit can turn on without limitation 3.2.3.4 Setupvideo trace in controller...
- Page 15 WWW.RESTMOMENT.COM Could setup 8 cameras with difference protocol and baud rate. Operation option: setup scene、save No. See below Figure Setup scene 1．Unit: 001 option, select scene 0001, press Notice: left and right key adjust camera panorama. One camera could have 2 panorama.
- Page 16 WWW.RESTMOMENT.COM Video matrix: setup controller 8 matrix video output. See below Figure Out put 1-8 meant video output; 1-8 meant 8 cameras. For instance, setup output 1 with 1-8 cameras video signal, as below steps: 1、Move cursor to “output1”, press , move cursor to 1-8, press , grounding is black.
- Page 17 WWW.RESTMOMENT.COM 3.2.3.5 Setup volume in controller Press enter system main menu and volume setup interface, see below Figure: This menu include Input volume: could adjust volume as meeting room request. Output volume: could adjust volume as meeting room request. 3.2.3.6 Setpu system function in controller...
- Page 18 WWW.RESTMOMENT.COM MIC setup: Setup “MIC volume” Other setup: IC card sign-in function, speech count down time. As below Figure: Central control setup: Baud rate of central control is 9600 Back: back to previous menu. - 18 -...
-
Page 19: Part 4 Embedded Conference Unit
图 4.1 Embedded conference unit RX-C/D3100 4.1.1 Function and feature Restmoment original all digital conference technique, Compliant to IEC60914 All digital audio transmission technique, point to point connection mode, remote transmission won’t influence sound quality. Distance between two units could reach to 150m. -
Page 20: Conference Unit Technical Parameter
WWW.RESTMOMENT.COM Receive or reject application speech Switch off the earliest MIC Switch off all MICS Working with management software to achieve more functions. 4.1.2 Conference unit technical parameter Mode RX-C/D3100 Parameter System capacity 100pcs Depends on system controller，≤65535... -
Page 21: Cable Distributor
WWW.RESTMOMENT.COM 4.2 EMBEDDED CONFERENCE UNIT FUNCTION KEY SCHEMATIC DIAGRAM Red indicating ring PRIORITY key Gooseneck MIC pole PRIORITY key indicating ring MIC speech key indicating ring Unit USB jack MIC key 8 & 9, RJ45 cable input/output connector 4.1.4 Cable Distributor... -
Page 22: Part 5 System Connection Figure
WWW.RESTMOMENT.COM PART 5 System connection figure - 22 -... - Page 23 WWW.RESTMOMENT.COM - 23 -...
-
Page 24: Part 6 Faq
WWW.RESTMOMENT.COM PART 6 FAQ Failure Reason Solution No respond when turn on system Power supply clear controller( Power light is dark) trouble plug is not stable clear AC fuse is broken replacing （F5A250V） System controller is light, but units DC24V fuse is... - Page 25 WWW.RESTMOMENT.COM WWW.RESTMOMENT. COM Tel:(086)756-3212277 Fax:(086)756-3212278 Version: 01 RESTMOMENT - 25 -...
