Operating Instructions
Type:

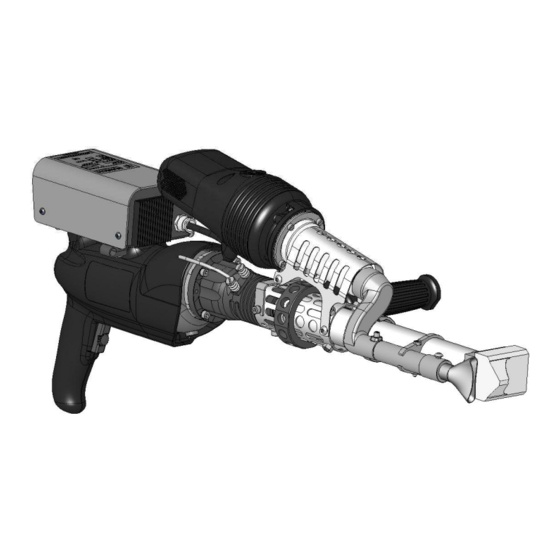

MEK-40 / MAK-40
MEK-65 / MAK-65
These operating instructions contain important information to
be observed for hand extruder operation and maintenance.
It is therefore imperative that they be read and their contents fully
understood by the operators before the hand extruder is placed in
service.
MUNSCH Kunststoff-Schweißtechnik GmbH
Serial No.:
Article No.: ______________
Issue 08.2008/Rev. 01
______________
Page 1/20
