INSTRUCTIONS- INSTALLATION-OPERATION-MAINTENANCE
SR-4-24, SR-6-36, SR-10-60, SR-4B-24G-48, SR-4B-36G-60, SR-6B-24G-60, SR-6B-24RG-60
**READ THIS MANUAL IN IT'S ENTIRELY BEFORE USING THIS RANGE**
5659 ROYALMOUNT AVE.
MONTREAL, QC, CANADA H4P 2P9
TEL (514) 737-9701; 1-888-275-4538
OWNER´S MANUAL
sales@mvpgroupcorp.com
12000 BISCAYNE BLVD. STE108
MIAMI, FL 33181
TEL (786)-600-4687; 1-844-218-8477
www.mvpgroupcorp.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for MVP Sierra SR-4-24

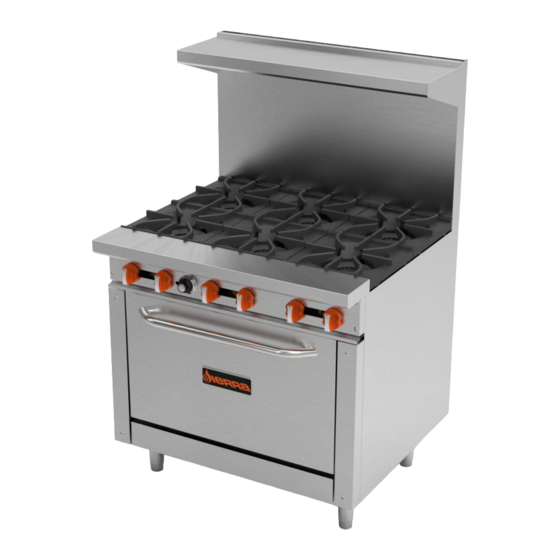

Summary of Contents for MVP Sierra SR-4-24
- Page 1 OWNER´S MANUAL INSTRUCTIONS- INSTALLATION-OPERATION-MAINTENANCE SR-4-24, SR-6-36, SR-10-60, SR-4B-24G-48, SR-4B-36G-60, SR-6B-24G-60, SR-6B-24RG-60 **READ THIS MANUAL IN IT’S ENTIRELY BEFORE USING THIS RANGE** 12000 BISCAYNE BLVD. STE108 5659 ROYALMOUNT AVE. MIAMI, FL 33181 MONTREAL, QC, CANADA H4P 2P9 TEL (786)-600-4687; 1-844-218-8477 TEL (514) 737-9701; 1-888-275-4538 sales@mvpgroupcorp.com www.mvpgroupcorp.com...
-
Page 2: Important Safety Information
2 to 17 IMPORTANT SAFETY INFORMATION FOR YOUR SAFETY: Do not store or use gasoline or other flammable vapors or liquids in the vicinity of this or any other appliance. MESURE DE SÉCURITÉ: Ne pas entreponer ni utiliser d´essence ni autres vapeurs ou liquides inflammables á... -
Page 3: Shipping Damage Claim Procedure
- For any goods shipped prepaid by MVP Group Corp., and the goods are damaged and/or lost in transit, please call the Logistics Department at MVP immediately (1-888-275-4538) - MVP Group will not be held responsible for damages that are not notated on the BOL or not reported within 5 business days of being delivered. -
Page 4: High Shelf Assembly
4 to 17 Provisions shall be incorporated in the design of the kitchen, to ensure adequate supply of fresh air and adequate clearance for air openings into the combustion chamber, for proper combustion, and ventilation. For proper operation of the appliance, do not obstruct the flow of combustion and ventilation air. The installation must conform with local codes, or in the absence of local codes, to the national fuel gas code, ANSI Z223.1 (or latest addenda). -
Page 5: Maintenance Instructions
5 to 17 All Sierra appliances are adjusted and tested before leaving the factory, effectively matching them to sea level conditions. Adjustments and calibrations to assure proper operation may be necessary on installation to meet local conditions; low gas characteristics, to correct possible problems caused by rough handling or vibration during shipment, and are to be performed only by qualified service personnel. -
Page 6: Stainless Steel Parts
6 to 17 movable appliances, there is a restraining device at the rear of the unit. If disconnection of the restraint is necessary, reconnect the restraint after the appliance has been returned to its originally installed position. CLEANING DAILY: Clean top grate(s) with warm water, mild cleaner and wire brush. Clean and brush off debris from and around the burner area. - Page 7 7 to 17 INSTALLATION OF LEGS LEGS ASSEMBLY: Mount Legs on bottom of product, the appliance may be further leveled with adjustment in the foot of the leg. GAS CONNECTION The gas supply (service) line must be the same size or greater than the inlet line of the appliance. SIERRA appliances use a ¾”...
- Page 8 8 to 17 LOCATION • Installation of the equipment should be performed by qualified, certified, and authorized personnel who are familiar and experienced with local installation codes. • Before Installation please read instructions completely and carefully. • Do not remove permanently affixed labels, warnings or plates from the product. •...
-
Page 9: Rating Plate
9 to 17 Air movement should be checked during installation. Air openings or baffles may have to be provided in the room, if pilot or burner outage problem persists. RATING PLATE Information on this plate includes the model, serial number, BTU / hour input of the burners operating gas pressure in inches WC, and whether the appliance is orifices for natural or propane gas. -
Page 10: Back-Splash Installation
10 to 17 BACK-SPLASH INSTALLATION Identify the assemblies to be fitted over the equipment. Make sure you have all the tools and fasteners listed. Item Description Quantity (PC) M6 SCREW (FLAT) HEX SCREW (10mm) 10 Flat screwdriver Hex Nutdriver... - Page 11 11 to 17 Remove the 3 rear screws of the unit. Place the backsplash and make sure that the manifold fits in the hole on the right side support (push)
-
Page 12: Shelf Installation
12 to 17 Place and tight the hex screws in the shown positions. SHELF INSTALLATION Place the shelf over the backsplash and hook it on the very top of it. Back Splash Shelf... -
Page 13: Remove The Door
13 to 17 Fit the M6 screws on the inside of the shelf to secure it in position. REMOVE THE DOOR... - Page 14 14 to 17 Door installation STEP 1.- Place the assembler component in both hinges (you can find 2 pieces of it in carton legs box ) STEP 2.-Hold onto both hinges with your hands. STEP 3.- Raise the door until the door is at a 45 degrees angle.
-
Page 15: Troubleshooting
15 to 17 TROUBLESHOOTING BURNER AND/OR PILOTS NOT GAS SUPPLY TO COOKING TURN ON GAS SUPPLY TURN ON EQUIPMENT IS OFF UNIT PRODUCING CARBON GAS TYPE VERIFY CORRECT GAS DEPOSITS GAS SUPPLY PRESURE CONTACT LOCAL GAS SUPPLIER PRIMARY AIR NOT ADJUSTED ADJUST AIR SHUTTER PROPERLY ORIFICE TOO BIG... -
Page 16: Limited Warranty
(18) months from the date of shipment from the factory, unless specified otherwise. If a defect in material(s) or workmanship is detected, or found to exist within the stated period above, MVP Group Corp., at its sole discretion, shall either repair or replace any original part which has proven to fail within the machine, providing that the equipment has not been altered or tampered with in any manner, has been installed correctly as per the owner’s manual, and has been maintained... - Page 17 17 to 17 (514) 737-9701 (888) 275-4538 service@mvpgroupcorp.com 5659 Royalmount Ave Montreal, QC, Canada H4P 2P9 (786) 600-4687 (844) 218-8477 service@mvpgroupcorp.com 12000 Biscayne Blvd, Suite #108 Miami, FL, United States 33181...
