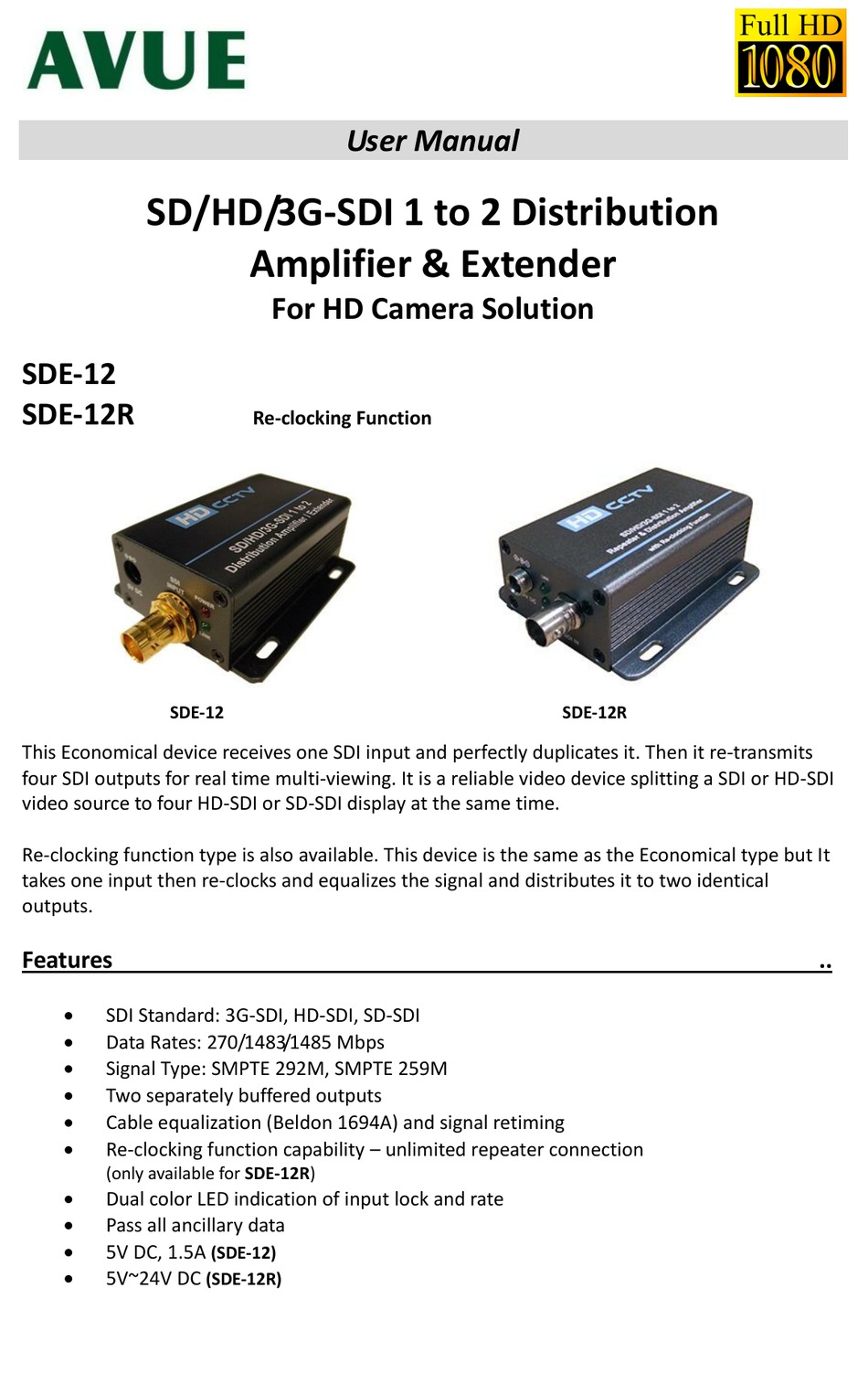

SD/HD/3G-SDI 1 to 2 Distribution
SDE-12
SDE-12R
SDE-12
This Economical device receives one SDI input and perfectly duplicates it. Then it re-transmits
four SDI outputs for real time multi-viewing. It is a reliable video device splitting a SDI or HD-SDI
video source to four HD-SDI or SD-SDI display at the same time.
Re-clocking function type is also available. This device is the same as the Economical type but It
takes one input then re-clocks and equalizes the signal and distributes it to two identical
outputs.
Features
SDI Standard: 3G-SDI, HD-SDI, SD-SDI
Data Rates: 270/1483/1485 Mbps
Signal Type: SMPTE 292M, SMPTE 259M
Two separately buffered outputs
Cable equalization (Beldon 1694A) and signal retiming
Re-clocking function capability – unlimited repeater connection
(only available for SDE-12R)
Dual color LED indication of input lock and rate
Pass all ancillary data
5V DC, 1.5A
5V~24V DC
User Manual
Amplifier & Extender
For HD Camera Solution
Re-clocking Function
(SDE-12)
(SDE-12R)
SDE-12R
..
Advertisement
Table of Contents
Related Manuals for Avue SDE-12
Summary of Contents for Avue SDE-12
- Page 1 User Manual SD/HD/3G-SDI 1 to 2 Distribution Amplifier & Extender For HD Camera Solution SDE-12 SDE-12R Re-clocking Function SDE-12 SDE-12R This Economical device receives one SDI input and perfectly duplicates it. Then it re-transmits four SDI outputs for real time multi-viewing. It is a reliable video device splitting a SDI or HD-SDI video source to four HD-SDI or SD-SDI display at the same time.
- Page 2 Please read the Manual before attempting to use this product. Specifications and appearance are subject to change without notice. Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems). This symbol on the product or on its packaging indicates that this product shall not be treated as household waste.
-
Page 3: Package Contents
Package Contents One (1) SDI 1 to 2 Distribution Amplifier & Extender Unit One (1) 5V DC, 1.5Amp Power Adapter for SDE-12 or One (1) 12V DC 1Amp Power Adapter w/ Locking Power Connector for SDE-12R One (1) BNC to RCA Cover Connector (Please See Note) One (1) User Manual NOTE: The input power will be spilt among the 2 BNC outputs. -
Page 4: Parts And Functions
SDI Out 1 Power Hardware Installation Connect a camera or other devices equipped with HD/SD-SDI outputs to the SDE-12 / SDE-12R Serial (3G/HD/SD-SDI) input. Connect devices equipped with HD/SD-SDI inputs (e.g. monitors or video processors) to the SDE-12 / SDE-12R Serial (3G/HD/SD-SDI) outputs. -
Page 5: Technical Specifications
Technical Specifications Model SDE-12 SDE-12R Re-clocking Function SDI Standards 3G-SDI, SD-SDI, HD-SDI HD/SD-SDI Detection Auto SMPTE 259M SMPTE 259M SMPTE 292M Supported Protocols SMPTE 292M SMPTE 424M SMPTE 344M SMPTE 425M Video Bandwidth 2.97Gpbs & 2.97/1.001Gbps Data Rates 270 / 1483 / 1485 Mbps [HD] 720p50/59.94/60, 1035i50/59.94/60,... -
Page 6: Key Components
Key Components The key components listed below are for Re-clocking type SDE-12R only. Components Made in USA for this product: Name of Component Manufacturer M21315 (HD/SD-SDI) Auto-rate Reclocker Mindspeed Technologies Multi-Rate SDI Adaptive Cable Equalizer Mindspeed & Gennum Multi-Rate Dual Slew-Rate Cable Driver Mindspeed &... -
Page 7: Limited Warranty
Limited Warranty LIMITED ONE (1) YEAR WARRANTY AND EXCLUSIONS Manufacturer warrants to the original consumer purchaser and not for the benefit of anyone else that this product at the time of its sale by Manufacturer is free of defects in materials and workmanship under normal and proper use for one (1) year from the purchase date. - Page 8 This product is very suitable for long distance transmission Ethernet signal and the situation needs link mode network, such as network video surveillance and so on. Copyright © 2012 by AVUE...
