User Manual
SD/HD/3G-SDI 1 to 2 Distribution
Amplifier & Extender
SDE-12RN
Re-clocking Function
This device receives one SDI input and perfectly duplicates it. Then it re-transmits two SDI outputs for real time
multi-viewing. It is a reliable video device splitting a SDI, HD-SDI or 3G-SDI video source to two SDI, HD-SDI or
3G-SDI display at the same time.
Re-clocking function type is also available. This device takes one input then re-clocks and equalizes the signal and
distributes it to two identical outputs.
..
1) Distributes 1 SDI input to 2 SDI outputs simultaneously
2) Single unit can transmit up to 120m/390ft (Beldon 1694A)
3) Re-clocking function capability---unlimited repeater connection
4) Support SDI Standard :SD-SDI,HD-SDI, 3D-SDI
5) Data Rates: 270Mbps(SD-SDI), 1.485Gbps (HD-SDI), 2.97Gbps (3G-SDI)
6) Signal Type: SMPTE 292M, SMPTE 259M, SMPTE 424M
7) DC 5V~12V (Power consumption less than 2W)
Advertisement
Table of Contents
Related Manuals for Avue SDE-12RN
Summary of Contents for Avue SDE-12RN

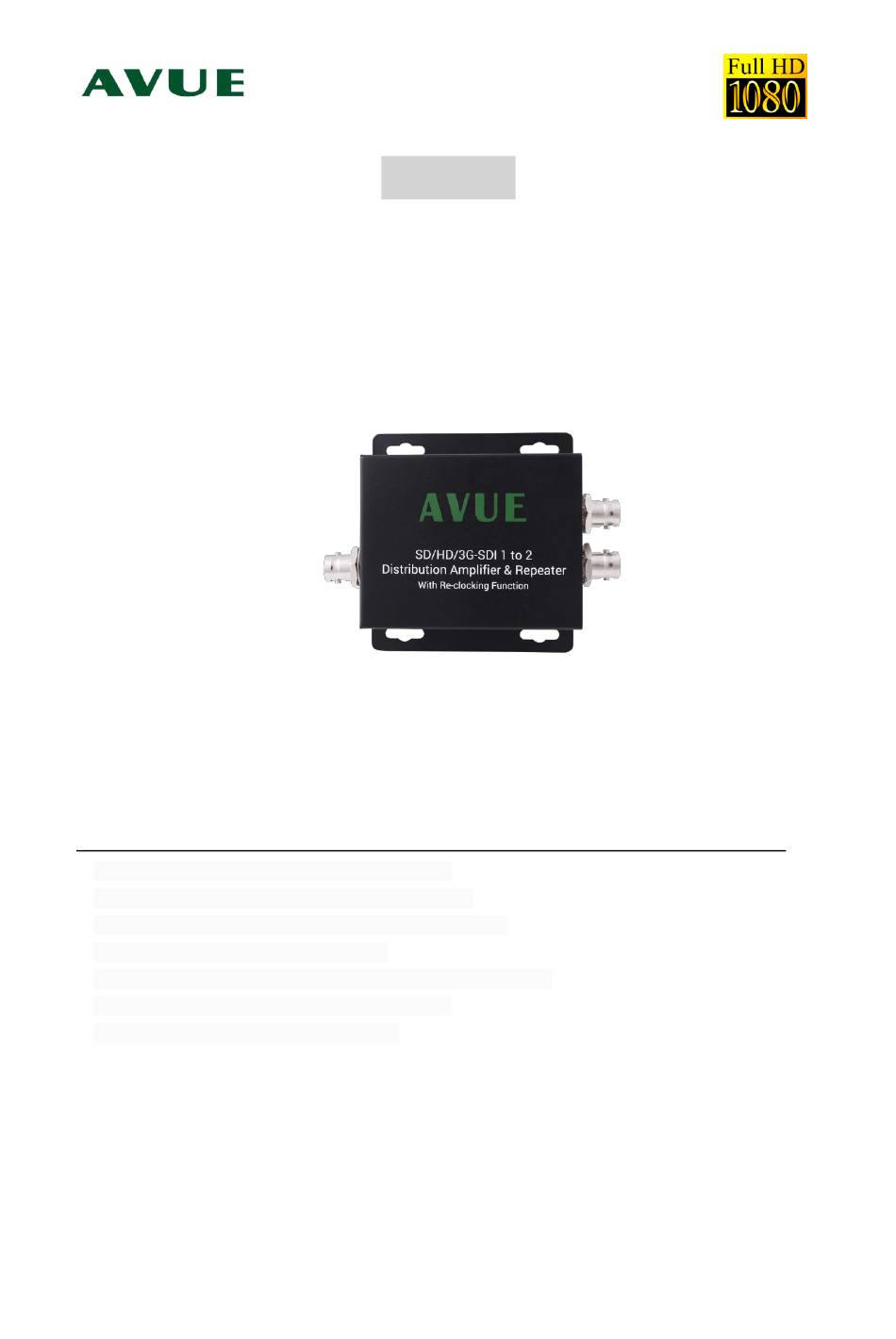

- Page 1 User Manual SD/HD/3G-SDI 1 to 2 Distribution Amplifier & Extender SDE-12RN Re-clocking Function This device receives one SDI input and perfectly duplicates it. Then it re-transmits two SDI outputs for real time multi-viewing. It is a reliable video device splitting a SDI, HD-SDI or 3G-SDI video source to two SDI, HD-SDI or 3G-SDI display at the same time.
