AVGO NOXZH User Manual

43”50”65“ compatible with dvd player
Hide thumbs
Table of Contents

Advertisement

Quick Links

43"50"65" LED TV COMPATIBLE
WITH DVD PLAYER
MODEL NO.: NOXZH
NOXZG
NO0WD
USER MANUAL
Please read this manual carefully before using,
and keep it for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NOXZH and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AVGO NOXZH

Summary of Contents for AVGO NOXZH

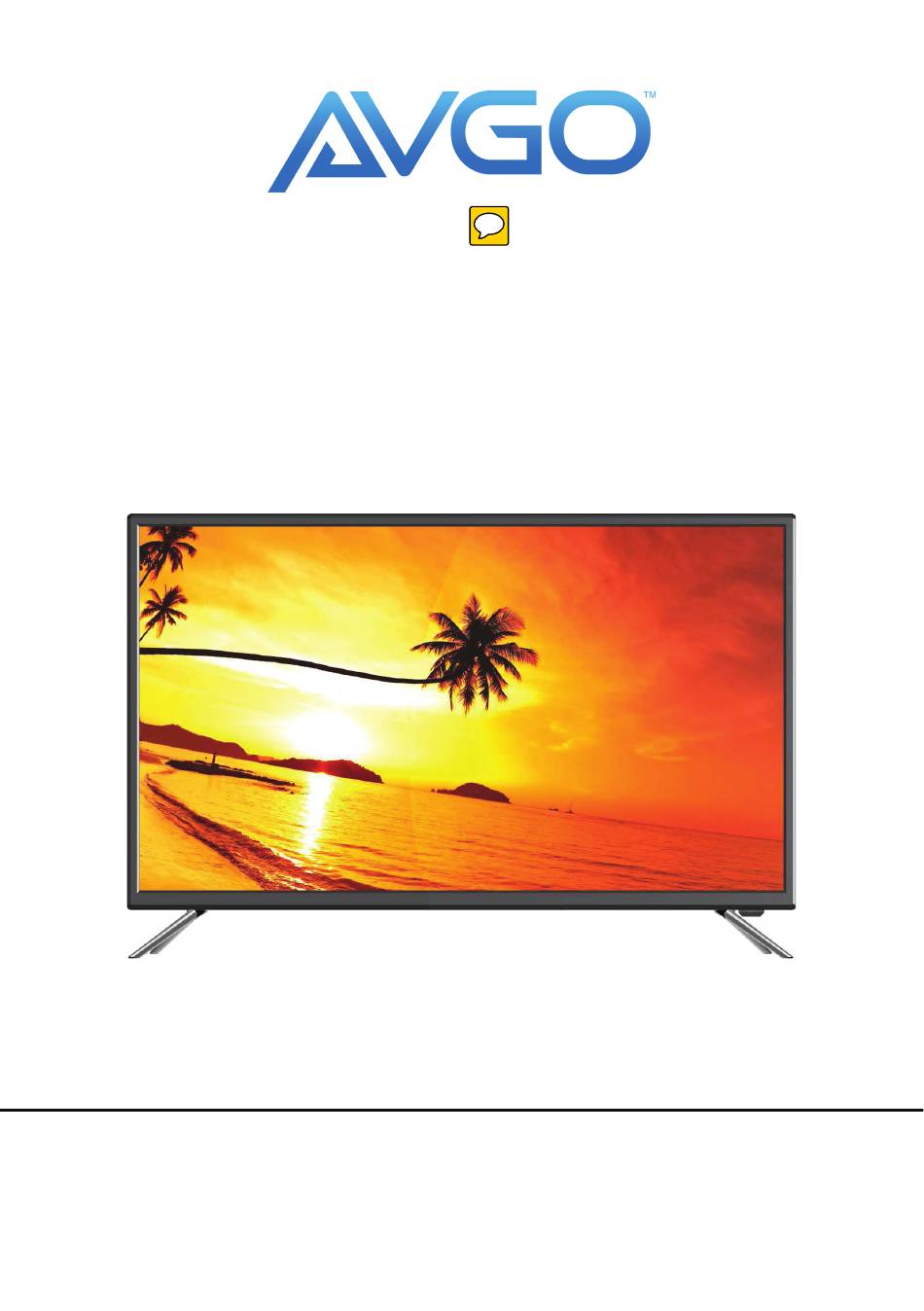

  • Page 1 43”50”65“ LED TV COMPATIBLE WITH DVD PLAYER MODEL NO.: NOXZH NOXZG NO0WD USER MANUAL Please read this manual carefully before using, and keep it for future reference.

  • Page 2: Table Of Contents

    Contents Important Safety Instructions..........Safety Information.

  • Page 3: Important Safety Instructions

    Important Safety Instructions • Read these instructions – All the safety and operating instructions should be read before this product is operated. • Keep these instructions – The safety and operating instructions should be retained for future reference. • Heed all warnings – All warnings on the appliance and in the operating instructions should be adhered to.
  • Page 4 This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of non-insulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock. CAUTION: Danger of explosion if battery is incorrectly replaced.

  • Page 5: Safety Information

    Safety Information To ensure reliable and safe operation of this equipment, please read carefully all the instructions in this user guide, especially the safety information below. Electrical safety • The TV set should only be connected to a main power supply with voltage that matches the label at the rear of the product.

  • Page 6: What Is Included/Tv Placement Setup

    What is Included/TV Placement Setup Unit and Accessories Input 43”50”65“ LED TV COMPATIBLE Base Stand WITH DVD PLAYER MODEL NO.: NOXZH NOXZG NO0WD Q.MENU Menu ENTER Back Exit 43” 4 Screws List USER MANUAL INFO MTS/Audio Please read this manual carefully before using, and keep it for future reference.
  • Page 7 NOXZG(50”) 200mm 200mm Four mounting holes (size M6 screw) Wall Mounting The TV is provided with mounting holes for a VESA approved wall mounting bracket (NOT SUPPLIED). The VESA mounting pattern is 200 x 200 mm. Remove the screws holding the base to the base bracket and lift the base away (do not remove the base mounting brackets).

  • Page 8: Front/Back View

    Caution: Your new TV is heavy; please consult with a professional wall mount installer to perform this installation. Getting Started Front/Back View NOXZH (43”) NOXZG(50”) NO0WD(65”) NOTICE:There is a square glue to protect the IR model，it can be removed after instal the base.

  • Page 9: Button Functions

    Button Functions illuminates green when the TV is turned on. illuminates red when the TV is in POWER LED: standby mode. IR(Infrared Receiver): Receives IR signals from the remote control. DO not put anything near the sensor, as its function may be affected. POWER ON: Press the middle button.

  • Page 10: Connecting To External Devices

    Connecting to External Devices Connecting external devices to your LED TV Headphone OPTICAL RJ45 HDMI3 HDMI2 HDMI1 YPbPr AUDIO (ARC) USB1 USB2 Not supplied Not supplied cable receiver/satellite box HEADPHONES :Connect to the Headphones. OPTICAL:Connect a digital sound system to this jack. RJ45:Network connection port.

  • Page 11: Remote Control

    Remote Control 1. POWER: Turn the TV on and off. 2. Input: This button is used to switch among different sources, Select a source and press ENTER button to confirm. Input 3. Digital Buttons(0-9, -): Directly select channel with digital buttons. : Switch to the previous program.

  • Page 12: Install The Batteries

    23. VUDU: Press this button to select VUDU application. 24. pandora: Press this button to select pandora application. 25. CC: Press this button to adjust CC mode. Install the Batteries If the remote control fails to operate the TV functions, replace the batteries in the remote control.

  • Page 13: Basic Operations

    Basic Operations Menu Operation OSD language config Menu language Setup Wizard English Select OSD Language Español Press ▼ / ▲ button to select the language to be French used for menus and message. Press ENTER button to enter the next menu. Select ENTER DATA COLLECTION AND FIRMWARE UPDATES NOTICE...
  • Page 14 Clock Select Clock Set the clock Press ▼ / ▲ button to select the clock . Press ENTER button to enter the next menu. Auto Manual Select Home or Retail Select ENTER Set the TV Mode to Home or Retail display use. Press ▼...
  • Page 15 Select DST Select Daylight saving time Press ▼ / ▲ button to select the Select Daylight saving time. Press ENTER button to enter the next menu. Select Return ENTER BACK Select Network Configuration Press ▼ / ▲ button to select Network Configuration. Select YES to enter the Network Configuration, More details please see the page 24~26.

  • Page 16: Input Setup

    Input Setup Press input key on the remote control to enter "INPUT SOURCE" menu. There are these options for you to select: "TV", "AV","Component", "HDMI1", “HDMI2", “HDMI3",“USB". Use /key to select a input source and press Enter key to confirm. To increase the volume, press VOL+ key；...

  • Page 17: Picture

    Menu system instruction Picture 1. Press Menu key to display the main menu on the screen. 2. Press ▲/▼ key to select "Picture" option. 3. Press  key to enter "Picture" submenu. Picture Mode Your TV has four picture settings (Dynamic, Standard,Movie, Game,Power Saving,User) that are preset at the factory.

  • Page 18: Sound

    Sound 1. Press Menu key to display the main menu on the screen. 2. Press / key to select "Sound" option. Sound Mode 3. Press  key to enter "Sound" submenu. Balance Surround Sound Sound Mode Video Description You can select the type of the special sound effect Digital Audio Output to be used when watching a given broadcast.

  • Page 19: Function

    Digital Audio Output This is used to set digital audio output 1. Press /key to select "Digital Audio Output” option. 2. Press / key to select “Auto” or “PCM”. Audio Languages You can set the first and secondary language for audio. DAP Enable This is used to set DAP.

  • Page 20: Time

    CEC Link Setup 1. Press / key to select “Link Setup” option. CEC Link Setup 2. Press ENTER or key to enter “Link Setup”submenu. Enable CEC link Enable Link: Press / to turn on/off the link setup. Auto Power On Auto Power On: When this option is “On”...

  • Page 21: Options

    Sleep Timer 1. Press ▲/▼ key to select "Sleep Timer" option. 2. Press ▲/▼ key repeatedly until the desired time appears (Off, 10mins, 20mins, 30mins,60mins, 90mins, 120mins, 180mins, 240mins). Notes: The sleep timer you have set will be cancelled when the TV turns off or if a power failure occurs.
  • Page 22 Reset 1.Press “▲/▼" key to select "Reset" option. 2.Press “ ►" or "ENTER" key to confirm. 3.Press "Yes" to confirm again, TV will turn off automaticly and change all setting to factory setting. Network Configuration Please refer to "Network setting"behind. Software Update(USB) When the TV need to be updated, please copy the new software to a USB storage and inset the USB storage to TV, then operating by following steps.
  • Page 23 Set Password Parental Control 1. Press ▲/▼ key to select "Set Password" option. 2. Enter your 4-digit password to enter"Set Set Password Password" submenu. Choose any 4-digits for your new password and enter them. As soon as the 4 USA TV digits are entered, the cursor skipped to “Confirm Password”...

  • Page 24: Channel

    Channel Before your television can begin memorizing the available channels, you must specify the type of Antenna Mode signal source that is connected to the TV (i.e. an Auto Seach antenna or a cable system). 1. Press Menu key to display the main menu on the screen. Program Edit 2.
  • Page 25 Favorite(Yellow) button This function can help store the favorite program then these programs can be quickly selected. 1. Select the program which is favorite. 2. Press “Fav”(Yellow) Button, the favorite mark is displayed at the left side of the program and this program is store into the Favorites.
  • Page 26 Network Setting 1.Press the “ Menu ” to enter, then pitch on the ”Options”,and press “ENTER” or click the right button to enter the submenu. OSD Language OSD Time Closed Caption Reset Network Configuration Software Update(USB) View End-User License Internet Update Check 2.Pitch on the "Network Configuration",and press "ENTER"...
  • Page 27 4.If shows "Success"，the "WLAN" on the bottom right corner will turn to green from red, and it means the network connect successfully; If shows "Fail"，it means the network can not connect, please check whether the net wire and router connect successfully or not. 5.

  • Page 28: Usb Operation

    Pitch on the "Setting"，press the "ENTER" to confirm. If shows "Success"， the "WIFI" on the bottom right corner will turn to green from red, and it means the network connect successfully; If shows "Fail"， it means the network can not connect, please check whether the wireless router connects successfully or not.
  • Page 29 Internet Press “HOME” key to enter internet interface. 1. NETFLIX  Use arrow key to Select button, then press “ENTER” key to enter NETFLIX. Sign in Get ready to watch thousands of TV shows and movies .  Enter your email address Email address @gmail .com @yhoo .com.tw @hotmail .com Back...
  • Page 30  Use arrow button to select one video and press “ENTER” key to play. Press “Menu” key to exit playing.  Press ▼ key to open or close control menu when playing.  Press ▲ key to enter search interface, input the keyword and then press “ENTER” to search videos.
  • Page 31 5.Twitter  Use arrow key to Select button, then press “ENTER” key to enter Twitter. Input the right Email and password, then select “Authorize app” button and press  “ENTER” key to log in.  Use arrow key to browse the pages. press “Menu” key to return to main menu and press “EXIT”...
  • Page 32  Input the right Email and password, select “log In” button, then press “ENTER” key to log in.  Press arrow key to browse the pages and press “ENTER” key to view . Press “Menu” key to return the main menu. Press “EXIT”...

  • Page 33: Troubleshooting

    Troubleshooting If the device performance fails, check whether the detected problem is in the following table. If your device still fails, contact customer service. SYMPTOM POSSIBLE CAUSE REMEDY TV – No signal input Signal cable is loose or not Ensure signal cable is not loose or connected, loose or connected.

  • Page 34: Specifications

    Specifications Model NOXZH (43”) TV System ATSC Resolution 3840x2160 Wireless LAN IEEE 802.11b/g/n 2.4-2.5 GHz ISM Band Power Consumption Power Supply AC 100-120V~50/60Hz HDMl input x 3 Connectivity RF Antenna Input YPbPr/AV AUDIO IN RJ45 Headphones Output OPTICAL Output Model NOXZG(50”)
  • Page 35 Model NO0WD（65”） TV System ATSC Resolution 3840x2160 Wireless LAN IEEE 802.11b/g/n 2.4-2.5 GHz ISM Band Power Consumption 168W Power Supply AC 100-120V~50/60Hz Connectivity HDMl input x 3 RF Antenna Input YPbPr/AV AUDIO IN RJ45 Headphones Output OPTICAL Output Remote Control Signal Type Infrared Control Distance...
