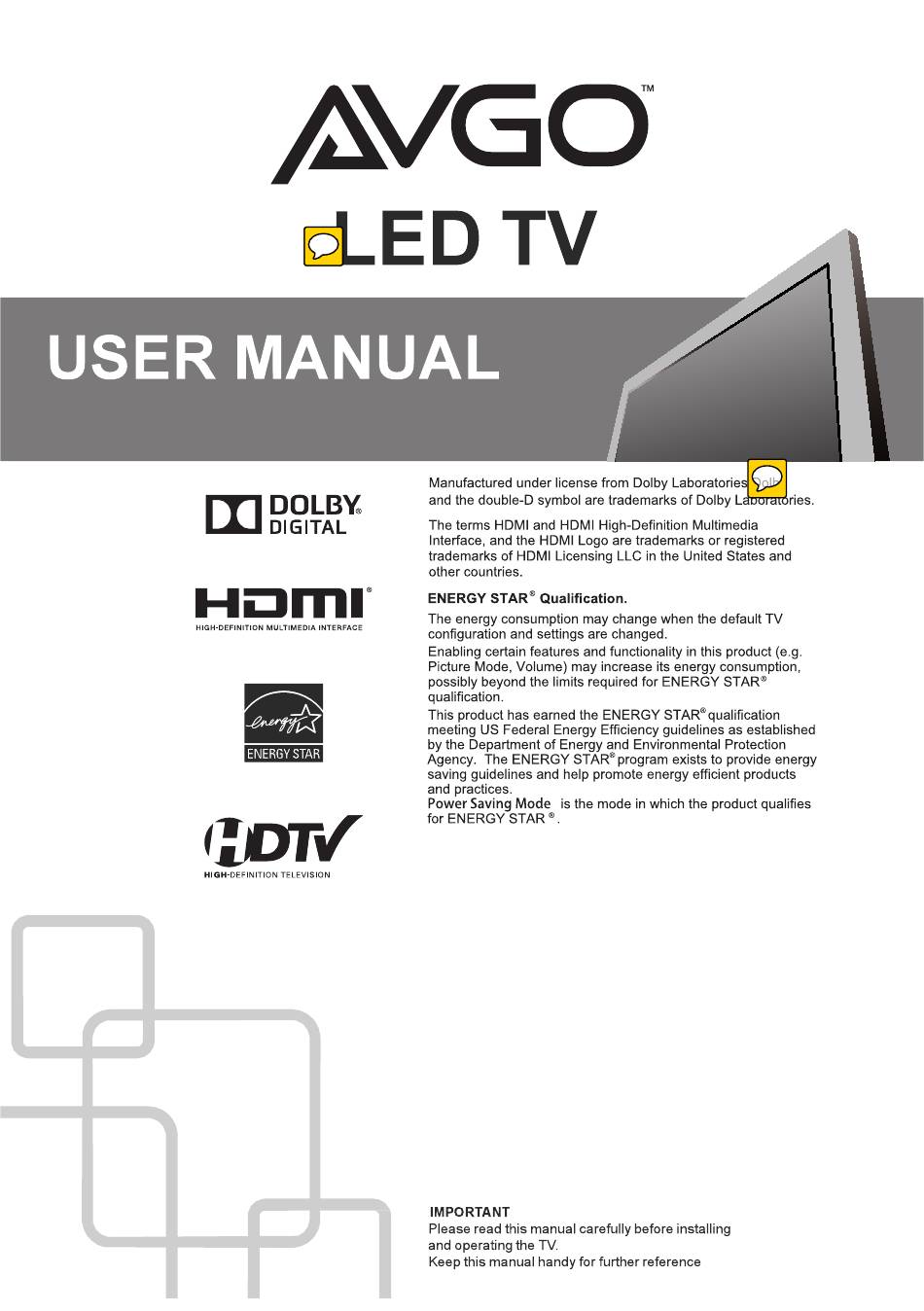

  • Page 1 MODEL NO.:NN43A...
  • Page 2 TABLE OF CONTENTS Instructions TV Bracket assemble Media Media TTS Function Operation DVD Setup DVD Setup 38 39...
  • Page 3 Warning: To reduce the risk of electric shock, do not remove cover (or back) as there are no user-serviceable parts inside. Refer servicing to qualified personnel. 1)No naked flame sources, such as lighted candles, should be placed on the apparatus. 2)Attention should be drawn to environmental aspects of battery disposal.
  • Page 4 Ins truc tion s a tip-ov er and/or injury.
  • Page 5 Ins truc tion s EXAMPLE OF ANTENNA GROUNDING AS PER THE NATIONAL ELECTRICAL CODE ANTENNALEADIN WIRE ANTENNA DISCHAGRE UNIT GROUND (NEC SECTION 810-20) CLAMP GROUNDING CONDUCTORS (NEC SECTION 810-21) ELEC TRIC SERVICE EQUIPMENT GROUND CLAMPS POWER SERVICE GROUNDING NEC-NATIONAL ELECTRICAL CODE ELECTRODE SYSTEM S2898A (NEC ART 250,RARTH)
  • Page 6 Ins truc tion s Warning: batteries(pack or batteries installed) should not be exposed to excessive heat such as sunshine, fire or other heat sources.Please do not mix new battery and old battery for recycle using.
  • Page 7 Ins truc tion s have bright spots/pixels.
  • Page 8 Ins truc tion s operat e 10cm 10cm below To avoid damage to the TV, place the TV on a table, face down on a soft surface. Note: Drawing is a representative example only...

  • Page 9: Tv Bracket Assemble

    TV Bracket assemble Fix the TV on the wall 1.First,put the TV on the table smoothly and put some soft cloth on the table to avoid getting scratched the screen. 2.Use a screw driver to take off the screws which are fixed on the bottom stand (the direction of the arrow, refer to the photo1).please be careful when tating off the bottom stand).
  • Page 10 TV Buttons and Connections TV Buttons Note: The following is only a representation of the buttons on your unit. The actual position and arrangement of the buttons may differ by model. :Turn ON/OFF Power. SOURCE:External Signal Input Selection. MENU:Display Main MENU And Confirm MENU Item Selection. CH+/-:Select Channel.
  • Page 11 0.5A...

  • Page 12: Install And Connect Tv

    Install and Connect TV Setup your TV 1.Put your TV in a place that can bear the weight of the TV. To avoid danger, please do not assemble the TV near water or extreme heat(such as a furnace, light source,or candle.) Do not block the ventilation on the back of the TV.
  • Page 13 Setup Wizard If your preferred language is French or Spanish, exit this Setup Wizard by pressing the Menu button, and follow the instruction on page 19 to make your language selection and re-enter the Setup Wizard from that Menu screen. Connect a RF cable from your incoming antenna/cable jack to the TV’s input labeled “ANT”, and/or a HDMI cable from your signal source to the HDMI input jack.
  • Page 14 on the remote (Air/Cable). on the remote Cable Analog Digital RF CH Total Found:...
  • Page 16 Press ▼ / ▲ button to select among Picture Mode /Brightness/ Contrast / Color / Tint / Sharpness / Color Temperature/ Advanced Settings. / Power saving Power saving Lower power consumption. . The shadow of the picture cannot be adjusted.
  • Page 17 Middle Select Return Move Middle...
  • Page 19 pr ef er en ce. Default is off.
  • Page 20 Press ▼ / ▲ button to select among Sleep Timer / Time Zone / Daylight Saving Time / Time Format / Auto Clock / Clock. ENTER / ▼ Press to enter. Press ◄ / ► button to adjust. Press M ENU again or back to parent menu.
  • Page 21 Next Move Return Press ▼ / ▲ button to select among Menu Language / Transparent / OSD Timeout / Closed Caption /Over Scan/ Input Label /Other settings / Restore Default / Setup Wizard/Voice Guidance/Video Description. ENTER / ▼ Press to enter. Press ◄...
  • Page 22 Closed Caption style / Transparent / Transparent...
  • Page 23 Move Return Select Return Move Select...
  • Page 24 Return Move Select Reset to initial settings. Move Select Return Volume Adjust TTS volume. Press ◄ / ► button to select(High/Low/Middle). Speed Adjust TTS speed. Press ◄ / ► button to select(Normal/Fast/Slow). Pitch Adjust TTS tone. Press ◄ / ► button to select(High/Low/Middle). 【...
  • Page 25 Lock Menu defeat password “0000”. Hotel Menu Hotel Menu Move Next Return...
  • Page 26 Select Return Move when System Lock is on. when System Lock is on.
  • Page 27 Lock Press OK to Lock or Unlock Move Select Return All children 7 years old and above General audience Parental guidance 14 years old and above 17 years old and above...
  • Page 28 MPAA This system defines the rating control which come from MPAA rules. Rating Define General audience. All ages admitted. Parental guidance suggested. Some material may not be suitable for children. PG-13 Parents strongly cautioned. Some material may be inappropriate for children under 13.
  • Page 29 The Hotel menu is locked in the factory setting. To unlock, please press Menu, then 1229 using the remote control. Move Return Select Move Move Return Return Select Select Power saving...
  • Page 30 Move Select Return...
  • Page 33 Move Select Return Move Return Select...
  • Page 34 interfering lines. *Notes: In PC Mode the following functions are not available. 1. Color, Tint, Sharpness, Noise Reduction, Dynamic Contrast and HDMI Mode in PICTURE. 2. MTS and Audio Language in the SOUND menu. 3. Auto Clock in TIME menu. 4.
  • Page 35 Media Media Media The USB input is compatible with flash drives containing .jpg/.jpeg files only. HDD (hard disk drive) may be connected with a maximum storage capacity of 400G. Acceptable file types include FS, FAT32, FAT16, and NTFS (NTFS compressed files are not supported).
  • Page 38 feature This function is used for reducing the difference between channel and program volume automatically. This feature reduces the fluctuation of the sound/volume. TTS function descrition download link: http://www.expressluck.com/down.html...
  • Page 39 DVD Setup Press the “D.Setup” button to enter the DVD settings menu,use the “ ” buttons to select the desired menu page (General / Audio / Video / Preferences),and use “ ” buttons to select the items in each menu,then use “ ”...
  • Page 40 DVD Setup 3.Video Setup Page Sharpness:adjust the sharpness of the image. Brightness:adjust the brightness of the image. contrast:adjust the contrast of the image. 4.Preference Page (Note:This menu page will pop up before put the disc into DVD.) TV Type: Select the local TV system (PAL TV/Multi/NTSC TV) Audio: Disc audio language selection (disc dependent) Subtitle: Disc subtitle language selection (disc dependent) Disc Menu: Disc Menu language selection (disc dependent)
  • Page 41 - A double image or ghost could be caused by obstructions of the external antenna. Consult the antenna instruction manual to change the direction of the external antenna. - Perhaps the location of the antenna is not good. Use of a taller antenna can improve the quality of the images.

  • Page 42: Specifications

    Specifications 5W+5W 24” 28” 7W+7W 7W+7W 32” 7W+7W 39” 8W+8W 40” 8W+8W 42” 8W+8W 43” 8W+8W 50” 8W+8W 55” 8W+8W 65” 24” 28” 32” 39” 40” 42” 43” 50” 108W 55” 100W 65” 159W...
  • Page 44 Universal remote code This is the code for remote control of NN43A,if you want to change to a universal remote control,you can enter this code into your universal remote control. Universal Remote Control code:007F (Universal Remote control is not included)
