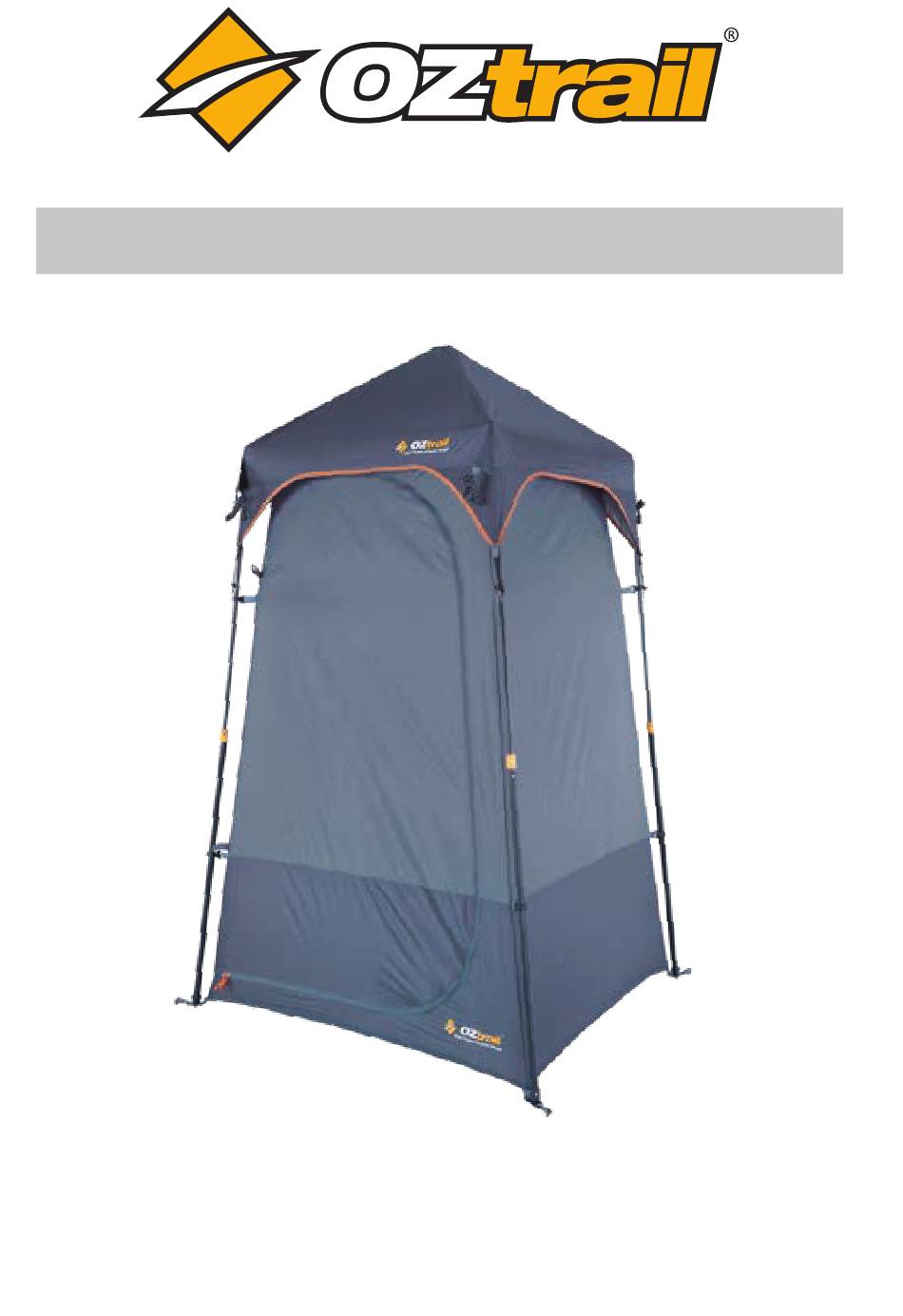

- Page 1 OWNERS MANUAL Fast Frame Ensuite Single 10000428 www.oztrail.com...
-
Page 2: Table Of Contents
HELPFUL HINT • Reinforced central hanging hook supports heavy showers OZtrail advises you to read this • Internal access ports for shower hoses or power cords use to ensure all parts are present and to become familiar with the operation of your tent. -
Page 3: Products & Parts
Check that all parts are present and that PART DESCRIPTION you familiarise yourself with the assembly and disassembly of the 1x Inner tent complete with main frame OZtrail dealer will be happy to help you. 4x Guy ropes 8x Pegs 1x Peg bag 1x Tent carry bag... -
Page 4: Assembly Instructions
ASSEMBLY INSTRUCTIONS STEP 1: CHOOSING THE SITE Select a sheltered camp site protected from the wind that will not allow water to pond under the Ensuite floor. Clear a level area of all stones, twigs, etc. STEP 2: LAY OUT THE ENSUITE Unpack the contents of your Ensuite. - Page 5 ASSEMBLY INSTRUCTIONS CONT. Figure 4 Figure 7 IMPORTANT Figure 5 In severe conditions the shelter should be dismantled WARNING At no stage is it necessary to apply any excessive force to achieve any of the above steps. The frame is tensioned and if the correct action is applied the Ensuite STEP 5: INSTALL THE RAIN FLY will erect with little or no force required.
- Page 6 ASSEMBLY INSTRUCTIONS CONT.
-
