INGICS
Guide
Ver.01
Introduction
The document is a guide for iBS05/iBS05G/iBS05H/iBS05T. To quickly verify it, please download INGICS iBS01
Tag Utility APP from below link(Android only):
https://play.google.com/store/apps/details?id=com.ingics.tag.igstagconfig

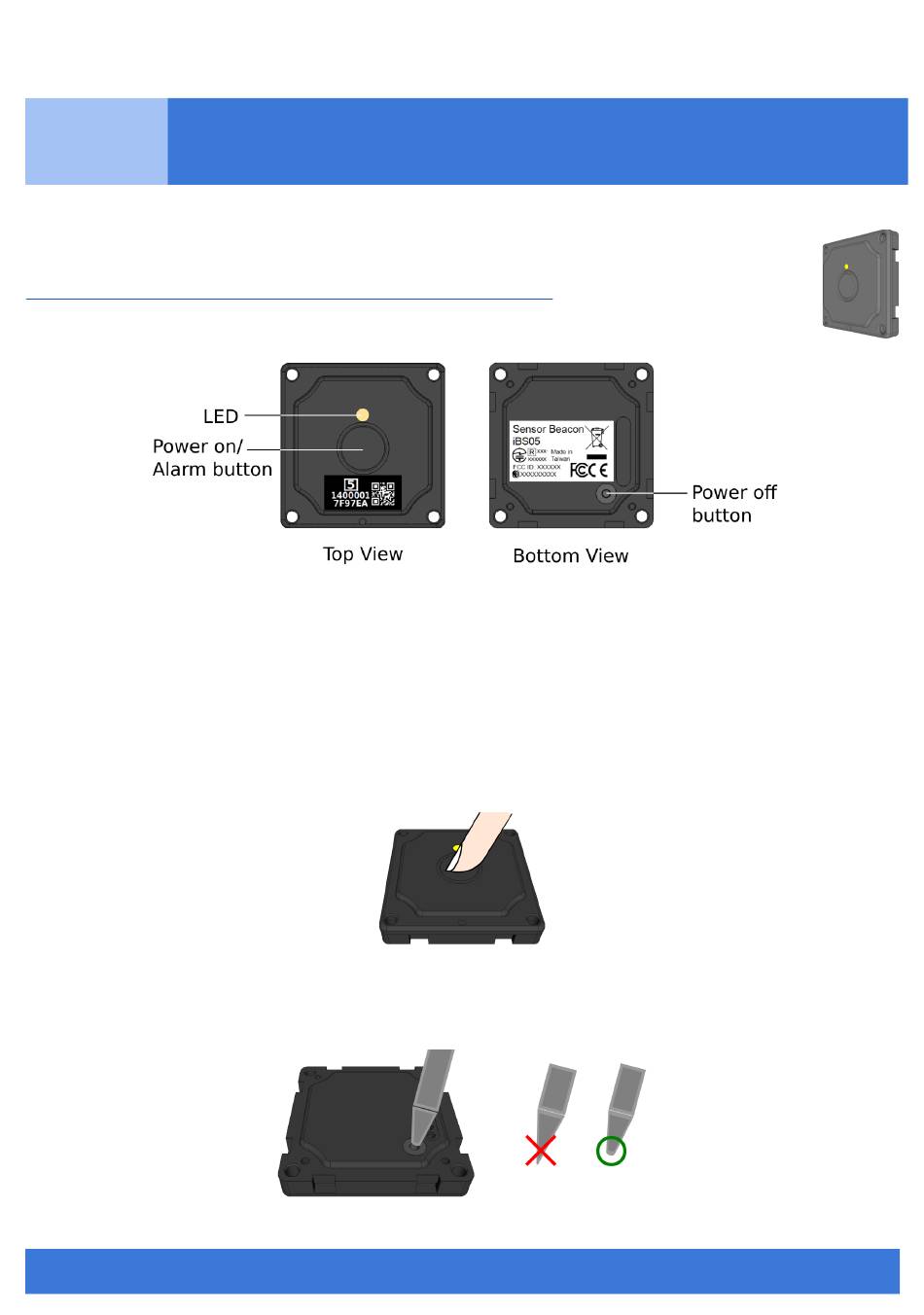

Overview
Operation
Basically, iBS05 will always transmit BLE payload in the configured time interval(by default, iBS05/05G is 5s and iBS05H/05T
is 30s) in the background after power on. The transmitted BLE payload/message is then received and uploaded to the
internet/cloud server by the beacon gateway, such as iGS01S or iGS03W/M/E. Besides background transmission, button or
sensor status change will also trigger an immediate BLE transmission for monitoring the sensor in real time.

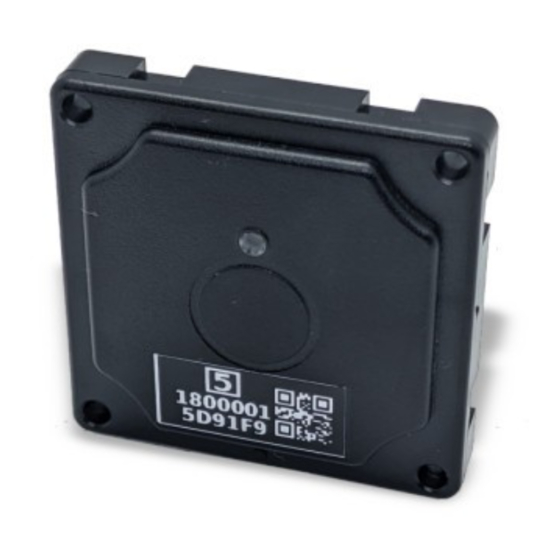

Power on
iBS05 is in standby mode at shipping. You can power on it by pressing the front button. The LED will flash "Red" to indicate it
is powered on. After power on, the button becomes the alarm button.
Power off
When necessary, users can power off iBS05 by applying a pencil with a blunt tip to the rubber button on the bottom side. The
LED will flash "Orange" to indicate it is powered off and entering the standby mode.
INGICS TECHNOLOGY CO., LTD. • SUPPORT@INGICS.COM • WWW.INGICS.COM
TECHNOLOGY
iBS05 User Guide
