Summary of Contents for Guitammer ButtKicker Advancer
- Page 2 Fax: 815-346-9532 Please visit our website www.thebuttkicker.com for additional technical information, specifications and FAQs. ButtKicker is a registered trademark of The Guitammer Company, Xbox is a registered trademark of Microsoft Corporation. PlayStation 2 and PlayStation 3 are registered trademarks of Sony...
-
Page 3: Table Of Contents
ButtKicker Advance ® Contents............Page Number Product Description............. 01 Specifications..............01 Quick Setup................02 Integration into Your Sound System......... 03 - Powering..............03 - Low End Roll Off............. 03 - Source Material.............. 03 Source Connection to Amplifier..........04 - Surround Sound System..........04 - Gaming Consoles / Stereo Systems...... -
Page 4: Product Description

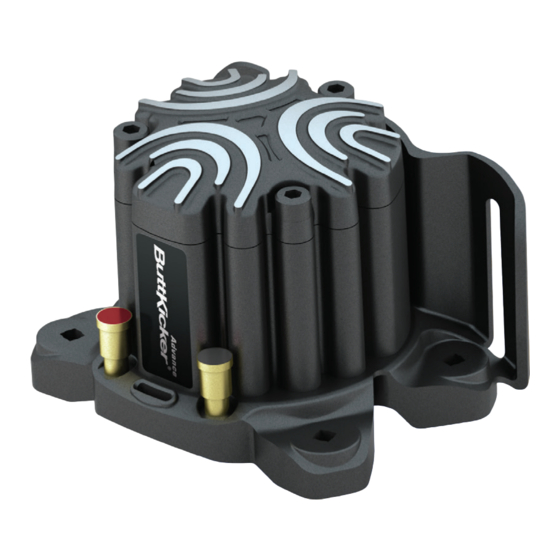

OWNER’S MANUAL Product Description The ButtKicker ® Advance is a patented low frequency audio transducer that utilizes a magnetically suspended piston. ButtKicker ® transducers are musically accurate, have powerful low frequency response, and are virtually indestructible and maintenance free. With a natural working range of approximately 5 –... -
Page 5: Quick Setup
ButtKicker Advance ® Quick Setup This section is for those who are more experienced with sound system installation. The ButtKicker ® Advance is a passive, 4 Ohm speaker load, which requires power from an audio power amplifier which in turn requires an adequate signal feed from your sound system (Figure 1). -
Page 6: Integration Into Your Sound System
OWNER’S MANUAL Integration into Your Sound System Powering ® The ButtKicker Advance is a passive load and therefore requires its own dedicated audio power amplifier. See the Specification section on Page 1 for Power Handling details. The use of 14 gauge speaker cable between the amplifier and the ButtKicker ®... -
Page 7: Source Connection To Amplifier
ButtKicker Advance ® Source Connection to Amplifier Surround Sound System ® One signal source for the ButtKicker Advance is the “Subwoofer” output of your surround receiver/processor. This output is controlled by the master volume control and usually a separate subwoofer control. -
Page 8: Mounting Guidelines
OWNER’S MANUAL Mounting Guidelines Floating Wood Floors A suspended joist floor is an ideal mounting surface for the ButtKicker Advance. Best results are obtained by installing two ® 2” x 6” boards between two floor joists. Place them near the center of the room, or near the seating area of the audience, avoiding any supports and bracing that would not allow the floor to move. -
Page 9: Rubber Isolators
ButtKicker Advance ® Mounting Guidelines, continued Rubber Isolators Rubber Isolators should be used under furniture or platforms where the ButtKicker ® Advance is mounted to maximize its effectiveness. Position the rubber isolators under each leg of your furniture or along the corners or your riser to isolate the vibration within the furniture or riser. -
Page 10: Dimensions
OWNER’S MANUAL ButtKicker ® Advance Dimensions All measurements are in inches and millimeters. 4.65” - 118.24 mm 6.13” - 155.7 mm 6.13” - 155.7 mm... -
Page 11: Thermal Protection
ButtKicker Advance ® Thermal Protection If the ButtKicker ® Advance is driven too hard (i.e. given too much power for too long of a period of time) it may overheat. For this reason, each ButtKicker ® Advance has a built in thermal switch. ®... -
Page 12: Warranty
(1) year from the date of purchase by the original end-user. Items returned for repair under warranty will be repaired or replaced at the sole discretion of The Guitammer Company without charge for materials or labor, providing such items are returned for inspection, transportation prepaid, to The Guitammer Company or an authorized service center.
