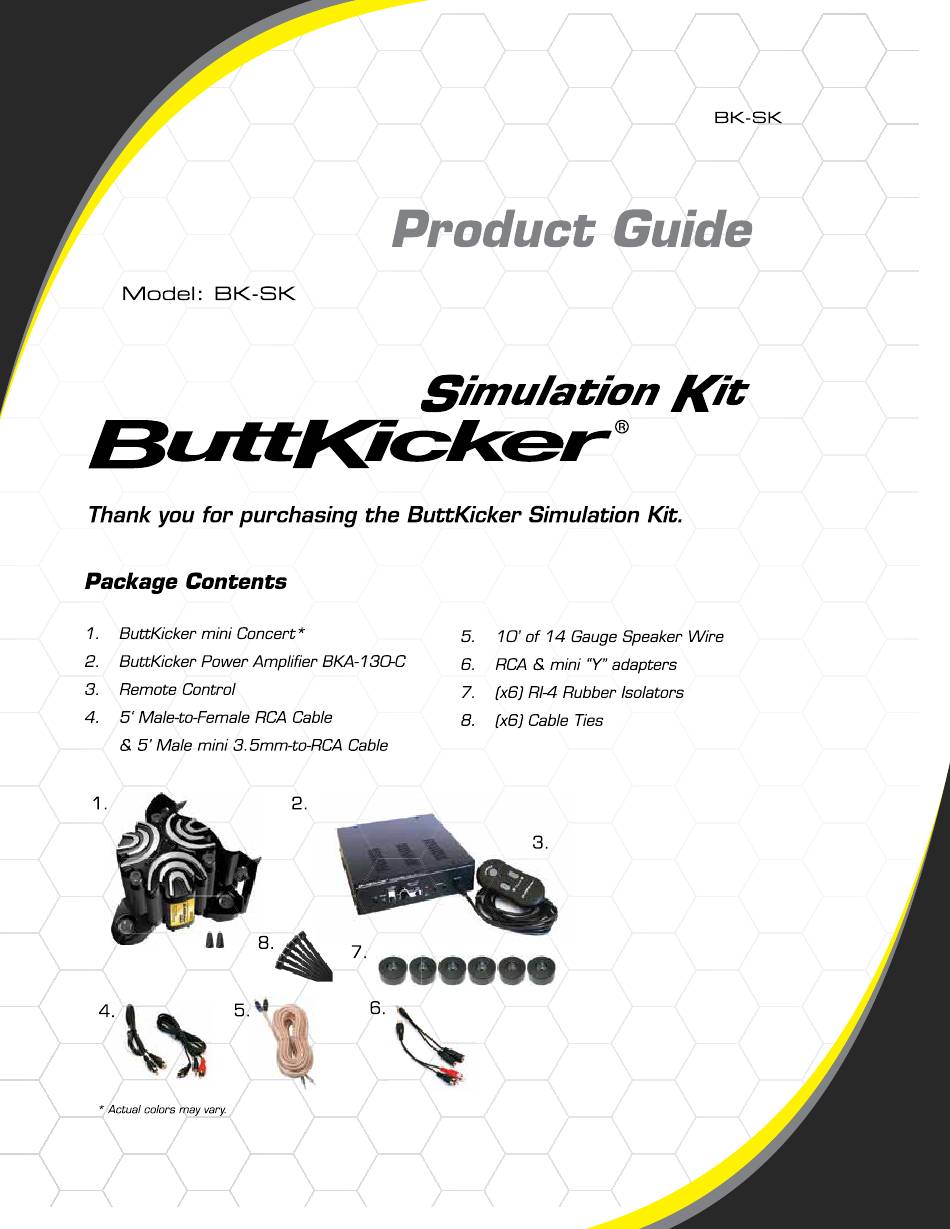

- Page 2 Do not use the apparatus near water, and do not im- merse it in any liquid or pour any liquid on it. ButtKicker is a registered trademark of The Guitammer Company. Do not block or push objects into the vents on the Butt-...
-
Page 4: Quick Setup Steps
Quick Setup Steps Mount the ButtKicker mini Concert. (See page 4) Connect an audio signal to the amplifier. (See pages 5-6) Connect the amplifier to the ButtKicker mini Concert with the included speaker wire. (See page 8) Place the rubber isolators under your simulation rig/cockpit or chair. (See page 8) Adjust the amplifier frequency settings. - Page 5 ButtKicker mini Concert Setup The ButtKicker mini Concert features a multi-directional mounting bracket which allows you to directly mount it to almost any surface. 1. MOUNT THE BUTTKICKER MINI CONCERT For most small simulation rigs or cockpits, mounting the ButtKicker mini Concert to part of the frame/chassis is the best solution because it will transfer the effect throughout the rig.
- Page 6 Power Amplifier Setup 1. AMPLIFIER AUDIO CONNECTION 2.a PC AUDIO HOOKUP ........pg. 5 2.b CONSOLE AUDIO HOOKUP ......pg. 6 2.a PC Audio Hookup 1. Connect the Audio Source For On-board Audio, Stereo or 4-Channel Sound Cards: Insert the mini “Y” adapter into the “Line Out” (usually green). For 5.1 - 7.1 or Greater Sound Cards: Insert the mini “Y”...
- Page 7 Power Amplifier Setup (Continued) 2.b Console Audio Hookup There are four basic methods for connecting audio to the ButtKicker Power Amplifier from a gaming console. Illustrations are provided on the next page. Option 1 Option 3 Audio Source is Direct from Game Console Audio Source is A/V Processor Using RCA Use this option if your console is equipped with, Use this option if the audio output from your...
- Page 8 Power Amplifier Setup (Illustrations) Option 1 - Fig.1 Option 2 - Fig.2 Option 3 - Fig.3 Option 4 - Fig.4 Page 7...
- Page 9 Final Setup Steps 1. CONNECT THE BUTTKICKER MINI CONCERT TO THE BKA-130-C POWER AMPLIFIER 1. Connect the 10’ speaker wire to the bare speaker wire ends of the ButtKicker mini Concert. (See Fig. 5). Wire nuts (not included) will assist in making this connection.
- Page 10 Tweaking & Optimizing 1. OPTIMIZING YOUR SIMULATION RIG/COCKPIT Efficiency Place the included rubber isolators under your sim rig/cockpit to increase the efficiency and strength of the system. See “Rubber Isolators” under “Final Setup Steps” for more information. Portability If you need to be able to move your sim rig/cockpit when it’s not in use, consider finding a stationary position away from the rig/cockpit to place the amplifier.
-
Page 11: Frequently Asked Questions
Frequently Asked Questions Q Everything is hooked up but I’m not getting any output from the ButtKicker mini Concert. What do I do? ) ɶ Here are a few things to check. Make sure that: All connections are tight. Audio software is installed and functioning. Your computer’s sound card is turned up and the bass setting is set high enough. - Page 12 (1) year from the date of purchase by the original end-user. Items returned for repair under warranty will be repaired or replaced at the sole discretion of The Guitammer Company without charge for materials or labor, providing such items are returned for inspection, transportation prepaid, to The Guitammer Company or an authorized service center.
