E
A
ASSEMBLY TOOLS NEEDED: #2 PHILLIPS HEAD SCREWDRIVER AND 7/16" WRENCH

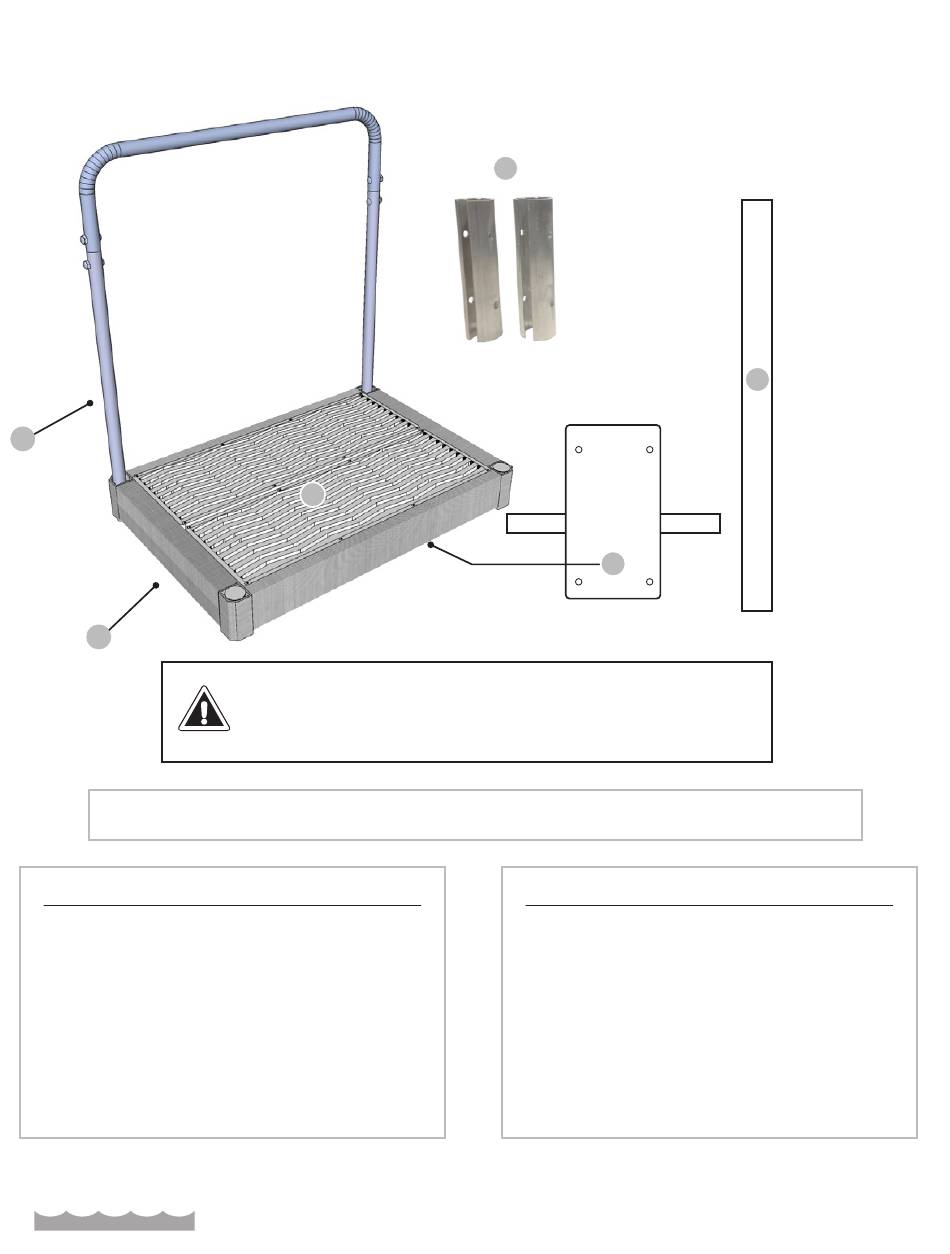

PART NAME
A. BOARDING PLATFORM FRAME
B. DECKING PANELS
C. CENTER RAIL
........................................
(mounted to the underneath of the platform frame)
D. SLIDING MOUNT
(3 pieces)
E. HANDRAIL
F. HANDRAIL SLEEVES
The
Dock Doctors
®
LLC
Waterfront Specialists
© 2021 The Dock Doctors - V6-0221
SLIDING BOARDING STEP
Assembly Instructions
B
IMPORTANT: You will need 4 anchoring bolts (not included)
for attaching the sliding mount (qty 4). The length and style of
these will vary based on your mounting location.
QTY
1
...........
2
................................
1
1
.................................
1
..........................
2
............................
Toll Free: 1-800-870-6756 | info@thedockdoctors.com | www.thedockdoctors.com
F
D
HARDWARE BAG
DECKING SCREWS
....................................
(for attaching decking to the platform frame)
¼" × 2 ¼" PAN HEAD BOLT
¼" LOCK NUT
.............................................
(for assembling handle)
BLACK SAFETY CAPS
C
QTY
16
4
.........................
4
2
.................................
1
Advertisement
Table of Contents
Related Manuals for Dock Doctors SLIDING BOARDING STEP
Summary of Contents for Dock Doctors SLIDING BOARDING STEP
- Page 1 (mounted to the underneath of the platform frame) (for assembling handle) D. SLIDING MOUNT ......... BLACK SAFETY CAPS ......... (3 pieces) E. HANDRAIL ......F. HANDRAIL SLEEVES ......Dock Doctors ® Waterfront Specialists Toll Free: 1-800-870-6756 | info@thedockdoctors.com | www.thedockdoctors.com © 2021 The Dock Doctors - V6-0221...
- Page 2 CAUTION It is critical that surface that your Sliding Boarding Step attaches to is substantial enough to carry the weight of the sliding boarding step and its occupant. Do not mount to rotten wood, crumbling concrete or other insecure surface.
- Page 3 4 holes on the mounting bracket. extend and retract to determine best mounting position To determine the best mounting location for your sliding boarding step, we suggest placing the frame with sliding mount attached in it’s approximate bumper location, then fully extend and fully retract the frame.
- Page 4 Secure with (2) 2 ⁄ ” pan head bolts, and (2) ⁄ ” lock nuts. boarding handrail sleeve boarding HANDRAIL SLEEVES handrail sleeve Dock Doctors ® Waterfront Specialists Toll Free: 1-800-870-6756 | info@thedockdoctors.com | www.thedockdoctors.com © 2021 The Dock Doctors - V6-0221...
- Page 5 4. Insert the (2) safety caps into the handrail sleeves on the opposite side of the frame. Safety Label tighten tension bolts on the side of the handrail sleeve Dock Doctors ® Waterfront Specialists Toll Free: 1-800-870-6756 | info@thedockdoctors.com | www.thedockdoctors.com © 2021 The Dock Doctors - V6-0221...
- Page 6 Decking Panel Decking Screws CAUTION: Once self-tapper pushes through aluminum, let up on pressure and slowly seat screw to plastic. Dock Doctors ® Waterfront Specialists Toll Free: 1-800-870-6756 | info@thedockdoctors.com | www.thedockdoctors.com © 2021 The Dock Doctors - V6-0221...
- Page 7 • Persons not to be on unit when sliding Ideal for pets too! Slide unit into place Step safely across onto boat Dock Doctors ® Waterfront Specialists Toll Free: 1-800-870-6756 | info@thedockdoctors.com | www.thedockdoctors.com © 2021 The Dock Doctors - V6-0221...
