Dock Doctors Paddle Products Beach Dolly Assembly Instructions Manual

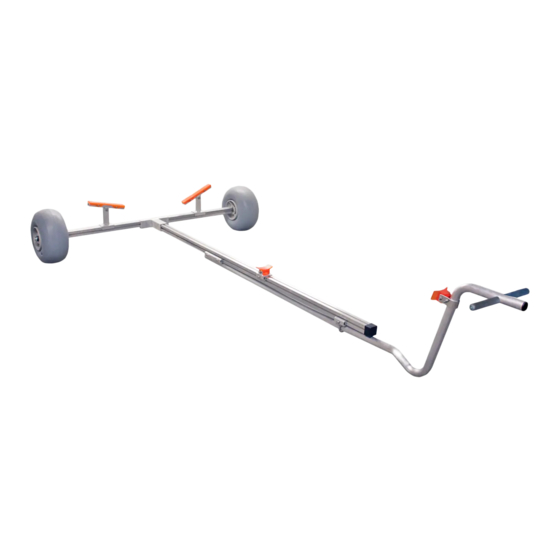

Beach Dolly
Assembly Instructions
L
B
A
PART NAME
A. AXLE ......................................... 1
with tongue bracket and sling supports attached
B. SLING SUPPORT BAR ................. 2
C. TONGUE .................................... 1
D. TONGUE T-BRACKET .................. 1
E. HANDLEBAR.............................. 1
with bow pad and handle attached
F. HANDLE .................................... 1
G. WHEEL ..................................... 2
H. SLING BRACKET ......................... 2
with sling attached
I. SLING........................................ 1
J. KEEL PAD .................................. 1
K. BOW PAD .................................. 1
L. END CAP ................................... 3
G
© 2016 The Dock Doctors - V0416
with sling & keel pad
I
D
C
QTY
L
C
A
D
Toll Free: 1-800-870-6756 | info@thedockdoctors.com | www.thedockdoctors.com
H
G
J
L
E
H
I
B
K
F
J
K
E
F
1
