- Page 1 DELIVERING ULTRASOUND SOLUTIONS e-POC Range Operating Manual...
- Page 2 e-POC Range INSTALLING THE APP 1. Go to our website www.ballatermedical.com. Alternatively go to your App store and search WirelessUSG (no spaces) 2. Download the App 3. Open the WirelessUSG or ULTRASOUND WirelessUSG flash App on your phone/ipad POWER BUTTON 1.

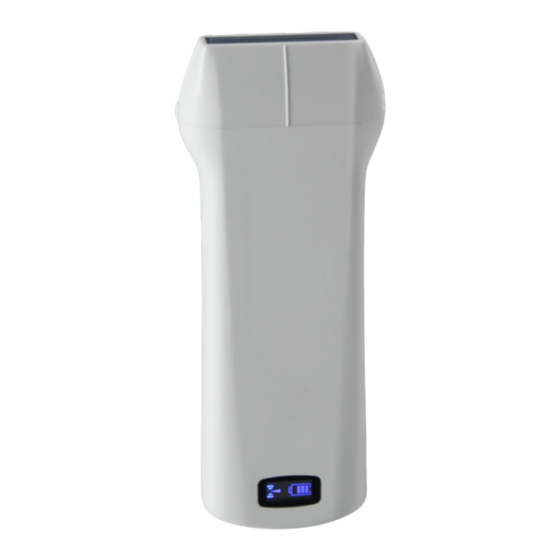

- Page 3 TURN ON 1. Press the Power button on the probe; When the probe is on, you will see the battery charge indicator on the LED screen; You will also see the WiFi indicator flashing searching for a probe with which to connect. CONNECTING THE PROBE TO YOUR DEVICE 1.
- Page 4 INTERFACE AND FUNCTIONS Gain increase - Gain decrease - Depth increase and decrease Focus: Adjusts the focus of the image Adjust the dynamic range of the image Harmonic imaging: increase/adjust the harmony imaging effect. Noise reduction: Eliminates low-level echoes / smoothes the image by reducing /eliminating speckle noise in the ultrasound B/M mode: Image in B and M mode.
- Page 5 Gain-: Decrease the pulse gain. Sampling volume: change the size of the sampling volume. In BM mode, you can adjust the position of the M sampling line by moving the following marks with your finger. PRF: Adjust colour pulse repetition frequency (colour range) Wall filler: a device for adjusting the filtering frequency of a pulse wave or continuous wave Doppler low frequency signal.
- Page 6 MEASURING FUNCTION When measuring if you need to fine-tune the location of the measuring point, click the measuring point to make it turn green. The following buttons will appear on the lower right corner. Click the arrow to adjust and confirm by pressing the middle square button.
- Page 7 WIFI INTERFERENCE When the system is used in exhibitions and other hot spots which are more Wifi crowded or have a strong source of interference environment, this may affect the rate of transmission and cause the image to be glitchy. If this happens press the Settings button, you will see a list of Wifi channels.
- Page 8 DELIVERING ULTRASOUND SOLUTIONS For more information please contact us info@ballatermedical.com www.ballatermedical.com 33 Fountainhall Road, Edinburgh EH9 2LN +44 7595 062835 +44 7803 013890...
