Owner's Manual
Please read and save these instructions. Read carefully before attempting to assemble, install, operate
or maintain the product described.
Protect yourself and others by observing all safety information. Failure to comply with instructions
could result in personal injury and / or property damage! Retain instructions for future reference.
Description
Portable Heat Pump feature spot cooling/heating
for large areas where cooling/heating of the entire
area is not practical. A dedicated spot cooling/heating
thermostat controls the unit in this application.
This unit can also be used in smaller areas for room
cooling/heating. A control panel provides ease of use
and contains a self-diagnostic function and display,
showing operating modes, room and set temperatures,
and faults.
If an abnormal operation occurs, a visual display of
the fault is shown. Caster wheels are included for easy
portability. Suitable applications include: a factory or work
place, industrial kitchen, computer room, emergency
cooling/heating, supplement cooling/heating etc.
Unpacking
After unpacking the unit, carefully inspect unit for any damage that may have occurred during transit. Check for any
loose, missing, or damaged parts.
Specifications
Power Supply
Model No.
Single Phase,
6HK13BEH0
Power Cord Gauge
Model No.
6HK13BEH0
Portable Heat Pump
Cooling Capacity
Ph-V-Hz
Btu/h
13,200 (Cooling)
115V, 60Hz
14,300 (Heating)
Power Cord
AWG
Length ft
12
6
6HK13BEH0

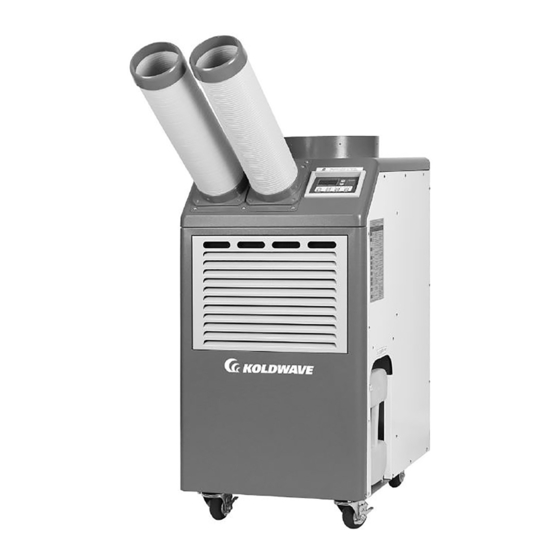

Figure 1
Power Consumption
Rated Current
Watts
0.94kW (Cooling)
8.58A (Cooling)
0.95kW (Heatling)
8.53A (Heatling)
Dimensions
W x D x H - in. (mm)
20.6 x 26.4 x 41.1
(523 x 670 x 1044)
6HK13-IOM
6HK13BEH0
EER
Amps
Btu/Wh
11.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 6HK13BEH0 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Koldwave 6HK13BEH0

  • Page 1 6HK13-IOM Owner’s Manual 6HK13BEH0 Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the product described. Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and / or property damage! Retain instructions for future reference.
  • Page 2 Features Off-timer, Auto fan speed option. Thank you for selecting this Koldwave Portable Heat pump. It provides you with spot cooling/heating for large areas where cooling/heating of an entire area is not practical or possible. Please read this manual before...
  • Page 3: General Safety Information

    Owner’s Manual 6HK13BEH0 General Safety Information Please read this manual carefully for instructions on correct installation and usage. Please read all safeguards. 1. Transport and store the unit in an upright position only. Leave unit in an upright position for at least 3 hours before first use.
  • Page 4 Owner’s Manual 6HK13BEH0 DO NOT operate a unit with a damaged power cord. 19. The filters must be used with the product at all times. When the filters are removed for cleaning, always ensure that the unit has been turned off and unplugged from the electrical outlet.
  • Page 5 Owner’s Manual 6HK13BEH0 Owner’s Manual 6HK13BEHO Assembly (6HK13BEHO) Assembly (6HK13BEH0) Component parts Top fan exhaust flange Display / Control board Evaporator / filter Condenser / filter Guide bar for condensate water tank Condensate water tank (Water level is Electrical access panel...
  • Page 6: Installation

    Owner’s Manual 6HK13BEH0 Installation WARNINGS REGARDING PROPER LOCATION FOR INSTALLATION Do not use the unit in explosive environments or in areas where flammable gas leakage may occur. Do not use the unit in areas where it will be exposed to rain or water.
  • Page 7: Operation

    Owner’s Manual 6HK13BEH0 Owner’s Manual 6HK13BEHO Oper on Operation CONTROL PANEL CONTROL PANEL Figure 9 When power is connected POWER lamp will be on. When power is connected POWER lamp will be on. 1. POWER BUTTON . POWER BUTTON - Activates unit when POWER BUTTON is pressed for 2 seconds. If POWER BUTTON is pressed for 2 vates unit when POWER BUTTON is pressed for 2 seconds.
  • Page 8: Up/Down Buttons

    Owner’s Manual 6HK13BEH0 4. MODE - Choose cooling, heating or auto by pressing this button. When all lamps are off, it is blower mode so only fan operates without operating compressor. - When AUTO lamp is on, it activates cooling or heating automatically according to TARGET TEMP. It activates cooling when TARGET TEMP is lower than CURRENT TEMP and will change to activate heating when CURRENT TEMP reach over the TARGET TEMP by 6°F( 3°C) and change to activate cooling when...
  • Page 9: Maintenance

    Maintenance FILTER CLEANING Owner’s Manual 6HK13BEH0 (See Figures 10 and 11) There are two fi lters in the unit. The evaporator fi lter is located at the front of the unit. The condenser fi lter is located at the back of the unit.
  • Page 10: Self Diagnostic Codes

    Owner’s Manual 6HK13BEHO Owner’s Manual 6HK13BEHO Owner’s Manual 6HK13BEH0 Maintenance (Con nued) Maintenance (Con nued) Maintenance (Continued) – To ensure your product is covered by warranty, the complete faulty product along with your – To ensure your product is covered by warranty, the complete faulty product along with your –...
  • Page 11 Owner’s Manual 6HK13BEHO Owner’s Manual 6HK13BEH0 Table 1-1- Alarm Codes Table 1-1- Alarm Codes...
  • Page 12 Owner’s Manual 6HK13BEH0 Owner’s Manual 6HK13BEHO Table 1-2- Alarm Codes Table 1-2- Alarm Codes...
  • Page 13 Owner’s Manual 6HK13BEH0 Owner’s Manual 6HK13BEHO Wiring Diagram Wiring Diagram Figure 13 - 6HK13BEHO...
  • Page 14: Troubleshooting Chart

    Owner’s Manual 6HK13BEH0 Owner’s Manual 6HK13BEHO ng chart Troubleshooting chart Symptom Possible Cause(s) Corr ve Ac on High water level in con- 1. Remove blockage from drain densate tank hose Water leakage 2. Remove any object stuck under- neath of the black panel under the water tank 1.
  • Page 15 Owner’s Manual 6HK13BEH0 Replacement Parts Description Part Number Cool Air Grill KWPHGRL Evaporator Filter KWPHFLT-03E Condenser Filter KWPHFLT-03C Evaporator Fan Motor KWPHMTRE-03 Condenser Fan Motor KWPHMTRC-03 Evaporator Fan KWPHFANE-03 Condenser Fan KWPHFANC-03 Cap Evaporator Motor KWPHCAPM-03E Cap Condenser Motor KWPHCAPM-03C...
  • Page 16: Limited Product Warranty

    Koldwave’s obligation under this warranty is limited to the repair or replacement at its option, of any part or parts which, upon Koldwave’s examination at its factory, are shown to be defective or at Koldwave’s option, the return of the purchase price to the purchaser.
