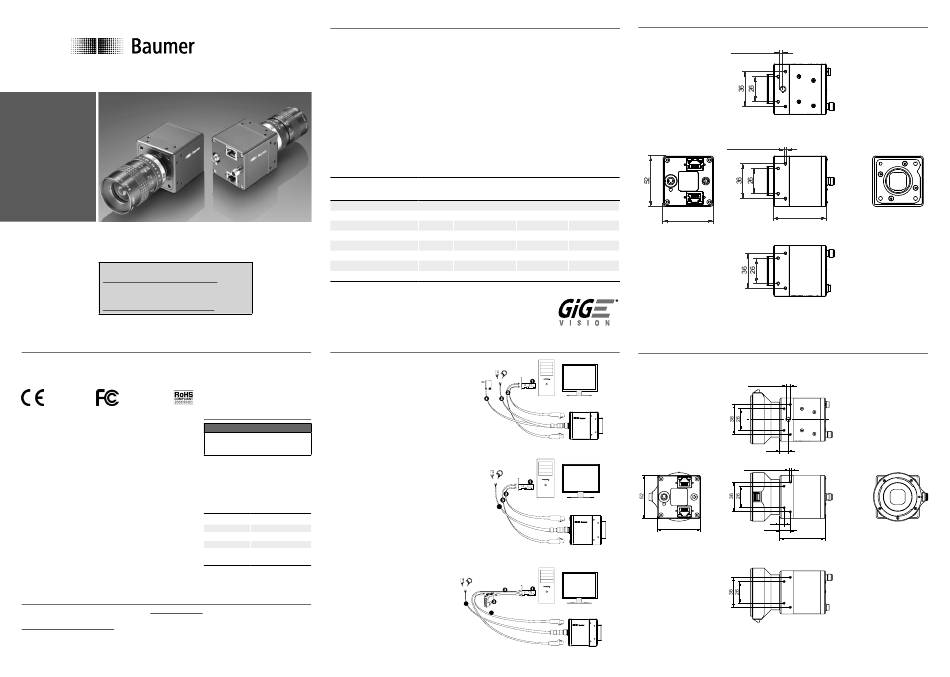

Quick Start Guide
HXG cameras with CMOS sensors (Release 2)
Download latest camera software:
www.baumer.com/vision/software
Download latest technical documentation:
www.baumer.com/cameras/docs
Safety
Conformity:
CE, FCC Part 15 Class A, RoHS
FCC – Class A device
Note: This equipment has been tested and found to
comply with the limits for a Class A digital device, pursu-
ant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interfer-
ence in a residential environment. This equipment gener-
ates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not
occure in a particular installation. If this equipment does
cause harmful interference to radio or television reception,
which can be determined by turning the equipment off an
on, the user is encouraged to try to correct the interference
by one or more of the following measures:
▪ Reorient or relocate the receiving antenna.
▪ Increase the separation between the equipment and the
receiver.
▪ Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
▪ Consult the dealer or an experienced radio/TV technician
for help.
Further Information
For further information on our products visit www.baumer.com
For technical issues, please contact our technical support:
support.cameras@baumer.com· Phone +49 (0)3528 4386-0 · Fax +49 (0)3528 4386-86
© Baumer Optronic GmbH · Badstrasse 30 · DE-01454 Radeberg, Germany
Technical data has been fully checked, but accuracy of printed matter not guaranteed.
Subject to change without notice. Printed in Germany v18 11/20.
Product Specification
HXG cameras – Maximum Performance with CMOSIS sensors
▪ Dual Gigabit Ethernet progressive scan CMOS camera
▪ Binning, subsampling, true partial scan function (ROI) for increased frame rates
▪ High Dynamic Range (HDR) image acquisition
▪ External synchronization via industrial compliant process interface (trigger / flash)
▪ Global shutter architecture for minimized motion blur
▪ Power over Ethernet support
▪ Standard RJ45 connectors
▪ GigE Vision
TM
▪ Excellent image quality
▪ Camera parameter programmable in real-time
▪ Frame rates up to 105 fps (HXG20 / Monochrome)
Camera Type
Monochrome
HXG20
HXG20NIR
HXG40
HXG40NIR
Color
HXG20
HXG40
Installation
Installation sample without PoE
1 - network interface card
2 - network cable
3 - Process interface cable
4 - Power cable
Safety instructions
Notice
See User´s Guide for the com-
plete safety instructions!
▪ Protect the sensor from dirt and
Installation sample with PoE via NIC
moisture.
▪ Never open the camera housing.
1 - PoE network interface card (NIC)
▪ Avoid camera contamination by
2 - network cable (PoE)
foreign objects.
3 - network cable (without PoE)
4 - Process interface cable
Environmental requirements:
Storage temp. -10°C ... +70°C
Operating temp. +5°C ... +50°C
Housing temp. max. +50°C
Humidity 10 % ... 90 %
non-condensing
Installation sample with PoE via Injector
1 - network interface card (NIC)
2 - network cable (without PoE)
3 - Injector
4 - network cable (with PoE)
5 - Process interface cable
11086858
standard compliant
Sensor Full Frames
Resolution
Size [max. fps]
2/3" 2048 x 1088 105
2/3" 2048 x 1088 105
1" 2048 x 2048 56
1" 2048 x 2048 56
2/3" 2048 x 1088 105
1" 2048 x 2048 56
open wire
open wire
4
open wire
5
4
Dimensions
● HXG (C-Mount version)
UNC 1/4 - 20
16xM3 deph 5
Burst Mode
(buffered)
337
52
337
180
180
337
180
Dimensions
● HXG-F (F-Mount version)
UNC 1/4-20
16 x M3 depth 6
52
54,7
10
5
12,5
55
