Replacing the Mainboard

IMPORTANT:Before replacing the motherboard, take care of the following items:
Check that LED isn't broken (top of mainboard)
•
Check that the mylar next to the CPU module isn't damaged (bottom of mainboard)
•
Check the thermal power supply cable is connected properly
•

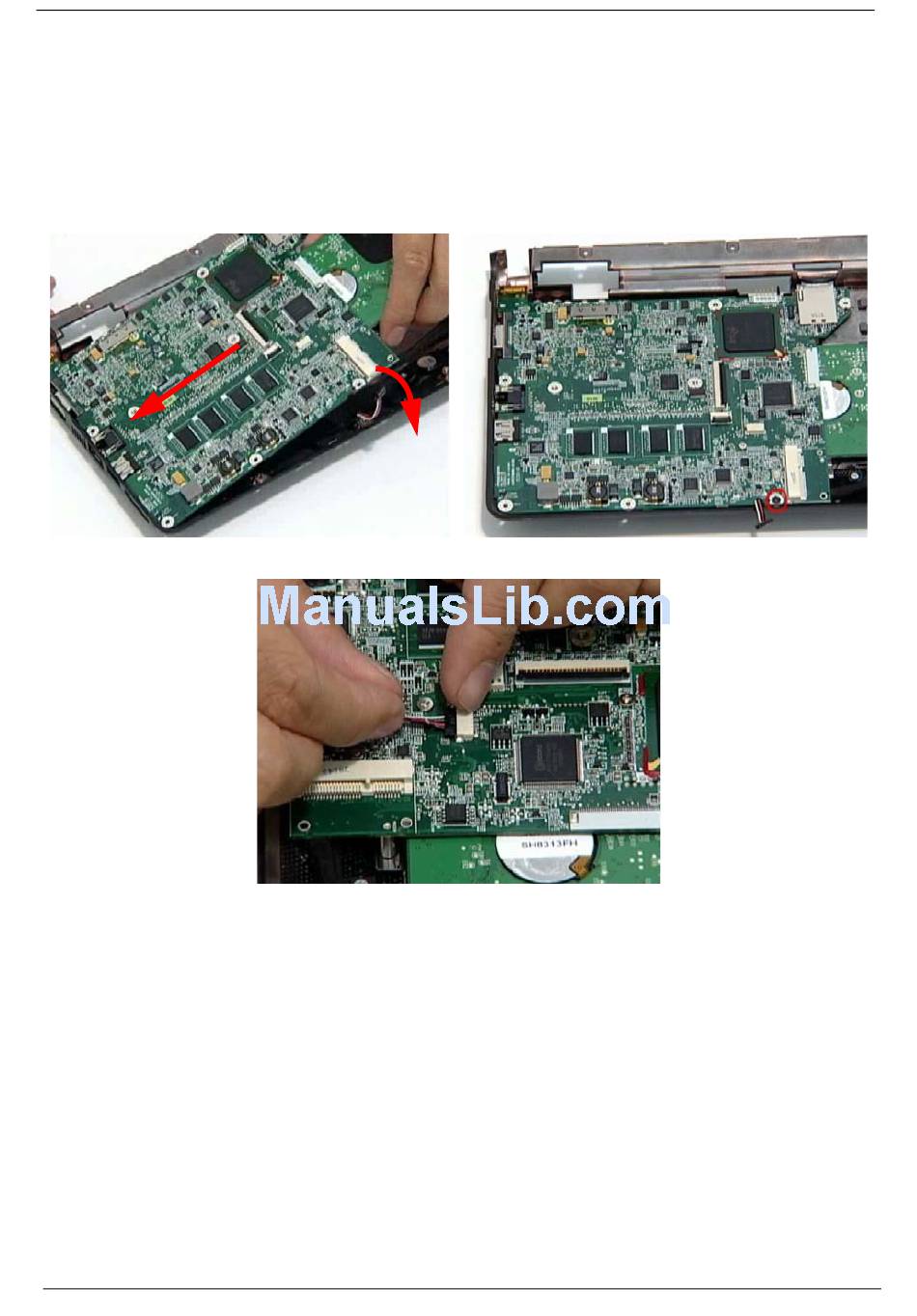

1. Insert the mainboard left side first into the lower
cover.
3. Connect the speaker cable to the mainboard.
70
2. Replace the securing screw on the Mainboard.
