PROFESSIONAL QUALITY COOKING EQUIPMENT
USE AND CARE MANUAL FOR

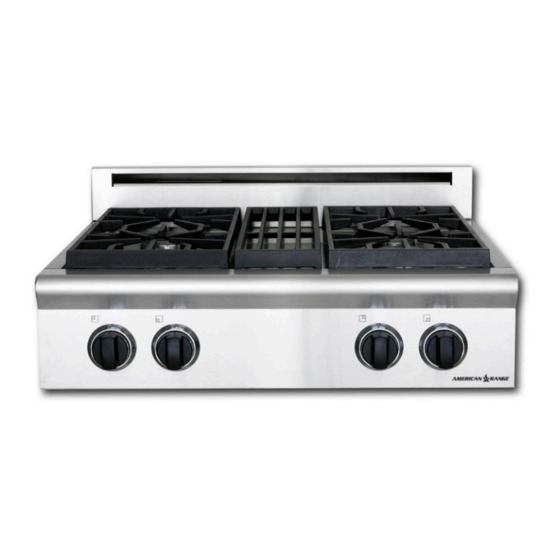

PERFORMER RANGETOP
MODEL NUMBERS:
AROBSCT-424, AROBSCT-242GD, AROBSCT-24X2GR, AROBSCT-430, AROBSCT-636, AROBSCT436GD,
AROBSCT-436GR, AROBSCT-848, AROBSCT-648GD, AROBSCT-648GR, AROBSCT-4842GD,
AROBSCT-448X2GR, AROBSCT-448GDGR, AROBSCT-660GR, AROBSCT-6602GD, AROBSCT-660X2GR,
DESIGN
CLASS
FUNCTION
RETAIN THIS MANUAL FOR FUTURE REFERENCE
© 2016 American Range
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com
All Rights Reserved
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for American Range PERFORMER AROBSCT-424
Summary of Contents for American Range PERFORMER AROBSCT-424
- Page 1 AROBSCT-424, AROBSCT-242GD, AROBSCT-24X2GR, AROBSCT-430, AROBSCT-636, AROBSCT436GD, AROBSCT-436GR, AROBSCT-848, AROBSCT-648GD, AROBSCT-648GR, AROBSCT-4842GD, AROBSCT-448X2GR, AROBSCT-448GDGR, AROBSCT-660GR, AROBSCT-6602GD, AROBSCT-660X2GR, DESIGN CLASS FUNCTION RETAIN THIS MANUAL FOR FUTURE REFERENCE © 2016 American Range 13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com All Rights Reserved...
- Page 2 INSTALLATION thoroughly before installing or servicing this equipment. IMPORTANT SERVICE NOTICE! Using any part other than genuine American Range factory supplied parts relieves the manufacturer of all liability. American Range reserves the right to change specifications and product design without notice. Such revisons do not entitle the buyer to corresponding changes, improvements, additions or replacements for the previously purchased equipment.
- Page 3 "Troubleshooting" – for a quick solution or guidance regarding the next step required to get back to tip-top condition. Thank you for choosing an American Range product for your home. As you can expect, this appliance is designed for years of reliable service. If you have any questions or comments, please contact the dealer from whom you purchased the unit, or contact American Range Customer Service at www.americanrange.com or 818.897.0808.
-
Page 4: Table Of Contents
Use & Care Manual RANGETOP Table of Contents GENERAL ................................. 1-5 General Information..................................1 About This Manual ..................................2 Shipping Damage Information ..............................3 Precautions ......................................3-5 INSTALLATION ..............................6-16 Cabinet Preparation ..................................6 Electrical Connection ..................................6 Gas Connection ....................................6 Pressure Regulator ..................................7 Gas Requirements ...................................7 Flexible Couplings, Connectors, Casters ..........................7 Rating Plate ......................................8 Installation Diagrams ................................9-12... -
Page 5: General
Use & Care Manual RANGETOP WARNING If the information in this manual is not followed exactly, a fire or explosion may result causing damage, personal injury or death. • INSTALLATION AND SERVICE MUST BE PERFORMED BY A CERTIFIED / LICENSED INSTALLER, SERVICE AGENCY OR THE GAS SUPPLIER • Do not store or use gasoline or other flammable vapors or liquids in the vicinity of this or any other appliance. -
Page 6: About This Manual
Use & Care Manual RANGETOP ABOUT THIS MANUAL The Use and Care Manual is divided into several sections: The Safety Section informs you about significant safety precautions when installing and operating your new rangetop. This is a must read section of the manual. Quick Start and Installation Section describes how to unpack the unit, what to save and what to discard, installation dimensions, gas and electrical connections and how to identify the primary parts of the product so you can better understand what’s going on "under the hood". -
Page 7: Shipping Damage Information
Use & Care Manual RANGETOP PRECAUTIONS SHIPPING DAMAGE CLAIM PROCEDURE The equipment is crafted and inspected carefully by skilled personnel before leaving the factory. The transportation company assumes full responsibility for the safe delivery upon acceptance of the equipment. If you receive a damaged product, immediately contact your delivery company, your dealer, your builder or installer. Do not install or attempt to operate a damaged appliance. - Page 8 Use & Care Manual RANGETOP DANGER To avoid the possibility of explosion or fire, do not store or use combustible, flammable or explosive liquids (such as gasoline) or vapors inside or in the vicinity of this or any other appliance. Keep items that could explode, such as aerosol cans, away from the product.
- Page 9 Use & Care Manual RANGETOP CAUTION Purchase a kitchen fire extinguisher for your home and store it in close proximity to your appliance. Should an uncontrolled fire occur, never use water on grease fires. Never pick up a flaming pan.The exterior can get hot during operation. The push-to-turn gas valve knobs on the appliance are designed to be child-safe, however, they are not a guarantee of operation.
-
Page 10: Installation
Use & Care Manual RANGETOP INSTALLATION INSTRUCTIONS The location selected for the rangetop must meet the following criteria. If any of these criteria are not met, select another location. CABINET PREPARATION • This rangetop is a free standing unit. • The rangetop can be placed in various positions with respect to the cabinet front, with the front either flush or projecting, depending on the countertop width. -
Page 11: Pressure Regulator
Use & Care Manual RANGETOP INSTALLATION INSTRUCTIONS PRESSURE REGULATOR The regulator installed in the rangetop is adjusted at the factory for 5" WC (natural gas) or 10" WC (L.P.) depending on the customer’s request. Regulators must not be removed. The regulator can withstand a maximum pressure of 1/2 PSIG (14" WC). If the line pressure is beyond this limit, a step-down regulator will be required. -
Page 12: Rating Plate
WARNING For optimal performance, the rangetop should be installed away from drafts that may be caused by doors, windows, and heating and air conditioning outlets. AMERICAN American Range (www.americanrange.com) 13592 DESMOND ST., PACOIMA, CA 91331 RATING PLATE - The information on the rating plate defines the model, 3013256 GAS TYPE MODEL NO. -
Page 13: Installation Diagrams
Use & Care Manual RANGETOP Overall Dimensions RANGETOP 13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com... - Page 14 Use & Care Manual RANGETOP Installations Specifications RANGETOP 13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com...
- Page 15 Use & Care Manual RANGETOP OVERALL DIMENSIONS PERFORMER RANGETOP 1 3 " 3 0 " M I N 1 8 " M I N 3 / 8 " RANGETOP "A" DIMENSION WIDTH 23-7/8" 24" 29- 7/8" 30" 35- 7/8" 36" 47- 7/8"...
- Page 16 Use & Care Manual RANGETOP VENT HOOD CLEARANCE DIMENSIONS IMPORTANT W ARNING This is a vented appliance. The appliance should not be installed with a ventilation system that blows air downward towards the range. This type of ventilation system may cause ignition and combustion problems with the gas cooking appliance resulting in personal injury or unintended operation.
-
Page 17: Installation Checklist
This checklist has been developed to assure proper installation of your oven. To validate warranty, you must mail, e-mail or fax this form and a copy of your receipt to: AMERICAN RANGE CUSTOMER SERVICE, 13592 DESMOND STREET, PACOIMA, CA 91331 service@americanrange.com 818.897.8839 FAX... -
Page 18: Model & Parts Identification Table
Use & Care Manual RANGETOP MODEL AND PARTS IDENTIFICATION PERFORMER SERIES - RANGETOP DESCRIPTION Total Control Knobs Open Burners Griddle Backyard Grill Burner Grates Center Grate Island back 4" Stub back Regis. Card U&C Manual 13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com... -
Page 19: Typical Model And Parts Identification
Use & Care Manual RANGETOP TYPICAL MODEL & PARTS IDENTIFICATION GRILL OR GRIDDLE INDICATOR LIGHT LEFT LEFT CENTER CENTER RIGHT RIGHT FRONT REAR FRONT REAR FRONT REAR GRILL OR GRIDDLE KNOB AROBSCT-424 AROBSCT-242GD AROBSCT-24X2GR AROBSCT-430 AROBSCT-636 AROBSCT-636GD AROBSCT-636GR large medium griddle large medium... -
Page 20: Preparing For Operation
Use & Care Manual RANGETOP RANGETOP PREPARATION PERFORMER RANGETOP Step 2 Step 1 Remove the burner pans, then cut and discard the The open burner heads are packed in a shipping ties on the burner base. Confirm that separate box. Unpack and place the burner heads burner base is flat on the burner support and that on the burner base. -
Page 21: Before Using Rangetop
Use & Care Manual RANGETOP BEFORE USING THE NEW RANGETOP • Before using the rangetop for the first time, wash the outside area with soap and water to remove any shipping & factory residue. • The burner grates are designed in sections and are easy to remove and clean. They are made of cast iron with a porcelain coating and will remain hot after the burner is turned-off creating a residual heat for continued cooking. Use caution when handling. -
Page 22: Cookware
Use & Care Manual RANGETOP COOKWARE RECOMMENDATIONS To avoid the risk of serious injury, damage to the rangetop or cookware, please observe the following guidelines. Bakeware, such as large casserole pans, cookie sheets, etc., should never be used on the rangetop. Placement of large stock pots should be staggered when used on the rangetop. -
Page 23: Grill
Use & Care Manual RANGETOP GRILL OPERATION To turn on the grill, make sure there is nothing on the grilling surface, push in and turn the control counter clockwise to the HIGH position. The power ON indicator light will glow indicating the grill valve is on. The grill is equipped with a flame-sensing ignition system – that automatically detects the presence of flame on the grill burner – and relights it in the event it should go out. Adjust the flame to the desired height. -
Page 24: Griddle
Use & Care Manual RANGETOP USING THE GRIDDLE The built-in griddle is made of polished steel to provide a smooth cooking surface. A griddle drip pan is included. SEASON THE GRIDDLE The griddle has a factory applied coating that must be washed off before using for the first time. (See Cleaning the Griddle below). Pour one Tablespoon of vegetable oil or canola oil and rub on the entire surface of the griddle using a rough cloth. Push the griddle control knob in and turn to a medium setting (350º) Heat until griddle begins to smoke. -
Page 25: Cleaning The Rangetop
Use & Care Manual RANGETOP TO CLEAN THE RANGETOP The rangetop is constructed from brushed Stainless Steel with cast iron burners. Wash all surfaces with hot water and dish detergent such as Ivory liquid or Joy. Rub stubborn spots with baking soda or liquid cleaner such as Windex All Surface Cleaner or 409. For stubborn plugged up holes in the burner head, place it upside-down on an installed burner head and burn out the stoppage. - Page 26 Failure to comply will void any written or implied warranty. Should the equipment require service during the standard warranty period, the receipt proving certified installation must be made available to American Range for verification. If installation was not performed by a certified/licensed contractor be prepared to submit a major credit card for payment for proper installation prior to service.
