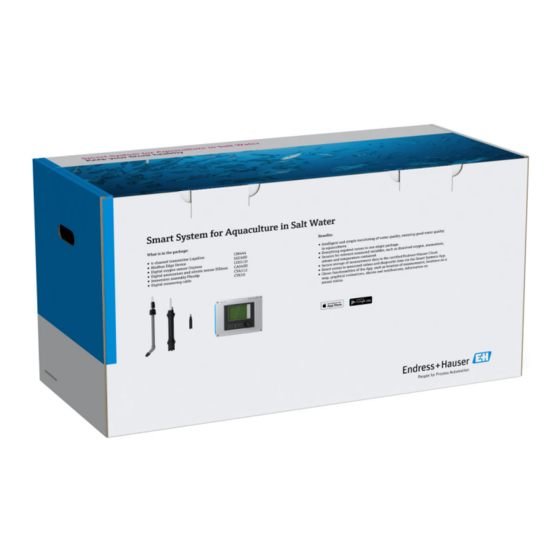

- Page 1 Products Solutions Services BA02045S/04/EN/01.20 71484907 2020-06-01 Operating Instructions Smart System for Aquacultures SSP200B Package with smart sensors, for monitoring water quality in aquacultures...
- Page 2 Revision history Smart System for Aquacultures SSP200B Revision history Product version Operating Instructions Changes Comments 1.00.XX B02045S/04/DE/01.20 Initial version Replaces BA01930S Endress+Hauser...
-
Page 3: Table Of Contents
Storage and transport ....10.1 Endress+Hauser services ....32 10.2 Smart System SSP . -
Page 4: About This Document
Procedures, processes or actions that are forbidden. Indicates additional information. Reference to documentation. Reference to page. Reference to graphic. Notice or individual step to be observed. … Series of steps. Result of a step. Help in the event of a problem. Visual inspection. Endress+Hauser... -
Page 5: Electrical Symbols
OK: The device is OK. Not monitored: The device is not monitored. Text emphasis Emphasis Meaning Example Bold Keys, buttons, program icons, tabs, menus, Start → Programs → Endress+Hauser commands In the File menu, select the Print option. Angle brackets Variables <DVD drive> Endress+Hauser... -
Page 6: Acronyms Used
• Operating Instructions BA00460C/07/EN Immersion assembly Flexdip CYA112 • Technical Information TI00118C/07/EN • Operating Instructions BA00118C/07/A2 Measuring cables CYK10 • Technical Information TI00432C/07/EN • Operating Instructions BA00432C/07/EN For additional documentation, please refer to the Endress+Hauser Operations App or go to www.endress.com/device-viewer. Endress+Hauser... -
Page 7: Registered Trademarks
RevPi Core 3 is a product of Kunbus GmbH, 73770 Denkendorf/Germany. UNO PS is a product of Phoenix CONTACT GmbH & Co. KG, 32825 Blomberg/Germany. All other brand and product names are trademarks or registered trademarks of the companies and organizations in question. Endress+Hauser... -
Page 8: Basic Safety Instructions
The Smart System SSP200B for freshwater applications is designed to monitor freshwater. The Smart System SSP200B for salt water applications is designed to monitor salt water. The Liquiline CM444 transmitter is a multichannel controller and is used to connect the digital sensors supplied. -
Page 9: Modifications To The System
2.4.1 Modifications to the system Unauthorized modifications to the system are not permitted and can lead to unforeseeable dangers: ‣ If, despite this, modifications are required, consult with Endress+Hauser. 2.4.2 Repair To ensure continued operational safety and reliability: ‣ Repairs must be performed only by certified Endress+Hauser specialists. -
Page 10: Product Description
Communication and data processing Modbus TCP (Ethernet) 2x LAN port, 10/100 Mbps, comply with IEEE 802.3, IEEE 802.3u standards Wireless LAN IEEE 802.11b/g/n, Access Point (AP), Station (STA) Mobile 4G (LTE) CAT4 up to 150 Mbps 3G up to 42 Mbps Endress+Hauser... -
Page 11: Incoming Acceptance And Product
• Keep all the accompanying documents. The system may not be put into operation if the contents are found to be damaged beforehand. Contact your Endress+Hauser Sales Center if this happens. Return the system to Endress+Hauser in the original packaging where possible. -
Page 12: Storage And Transport
• The permitted storage temperature is 0 to 40 °C (32 to 104 °F). • Store the components in the original packaging in a dry place. • Where possible, only transport the components in the original packaging. Endress+Hauser... -
Page 13: Installation
"Liquiline CM444" and the Technical Information for "Modbus Edge Device". Take the length of the antenna connection cables and the information in the "Mounting the LTE antenna" section into consideration for the mounting location of the Modbus Edge Device → 22 Endress+Hauser... -
Page 14: Disassembling The Liquiline Cm444 And Modbus Edge Device
Disassemble the Liquiline CM444 transmitter and the Modbus Edge Device in the same way. NOTICE Device is dropped Damage to the device ‣ When pushing the device out of the holder, secure the device to ensure that you do not drop it. ‣ Ideally, have two people disassemble the device. Endress+Hauser... -
Page 15: Assembling Immersion Assemblies Cya112
The following sensors are mounted with the immersion assembly CYA112: • SSP200B for salt water applications: oxygen sensor COS51D with NPT3/4 sensor adapter • SSP200B for freshwater applications: oxygen sensor COS61D with G1 sensor adapter The ammonium and nitrate sensor CAS40D is mounted without an immersion assembly. Endress+Hauser... -
Page 16: Assembling Immersion Assemblies Cya112
Post-installation check Are the mounted components undamaged (visual inspection)? Do all the components meet the required specifications? For example: • IP degree of protection • Ambient temperature • Humidity Are all the securing screws tightened securely? Endress+Hauser... -
Page 17: Electrical Connection
2. Release the housing screw that is diagonally opposite to this screw. 3. Release the third and fourth housing screw. Closing the housing ‣ Tighten the housing screws on a step-by-step basis in a diagonally opposite sequence. Endress+Hauser... -
Page 18: Cable Entries And Terminals
‣ Provide a protected circuit breaker in the vicinity of the transmitter at the place of installation. ‣ The circuit breaker must be a switch or power switch, and must be labeled as the circuit breaker for the device. Endress+Hauser... -
Page 19: Cable Mounting Rail
4. Connect cable cores L and N to the plug-in terminals of the power unit as shown in the wiring diagram. Requirements for protective ground / ground cable • Onsite fuse 10 A: wire cross-section min. 0.75 mm (18 AWG) • Onsite fuse 16 A: wire cross-section min. 1.5 mm (14 AWG) Endress+Hauser... -
Page 20: Connecting The Sensors
Sensor cable with M12 connector or measuring cable CYA10 with M12 connector, depending on the sensor Name of connection ports: → 18 SSP200B for freshwater applications: connecting the sensors 1. Connect the sensor cable of oxygen sensor COS61D to connection port 1. Endress+Hauser... -
Page 21: Electrical Connection Of Modbus Edge Device
2. Mount the antenna head. 3. Secure the split cable gland on the Ethernet cable. 4. Mount the split cable gland with the Ethernet cable on connection port F. 5. Connect the Ethernet cable to the free connection of the Teltonica LTE modem. Endress+Hauser... -
Page 22: Mounting The Lte Antenna
10. Connect the antenna connection cables to the LTE modem in the Modbus Edge Device. Æ 81.3 ± 15.0 15.0 ± ± 14.6 ± A0042905 19 LTE antenna Antenna head Protective film Antenna connection cable: LTE-MAIN-SMA male Antenna connection cable: LTE-AUX-SMA male Endress+Hauser... -
Page 23: Connecting The Supply Voltage For The Modbus Edge Device, 100 To 240 V Ac
2. Connect the protective ground to the green/yellow terminal strip "1". 3. Connect the neutral conductor N to the blue terminal strip "2". 4. Connect phase L to the gray terminal strip "3". 5. Close the housing → 17. Endress+Hauser... -
Page 24: Connecting The Supply Voltage For The Modbus Edge Device, 24 V Dc
Connecting Liquiline CM444 and Modbus Device Edge Signal transmission between the Liquiline CM444 transmitter and the Modbus Device Edge is via the Ethernet cable supplied. The Ethernet connection in the transmitter is already established on delivery from the factory. Endress+Hauser... -
Page 25: Post-Connection Check
Is the terminal assignment correct? Are all the housing covers closed? Are all the housing screws securely fastened? Are dummy plugs inserted in every unused cable entry? Are all the cable glands tightened securely? Endress+Hauser... -
Page 26: Commissioning
The device can now be operated in your chosen language. 7.1.3 Configuring the Liquiline CM444 The Liquiline CM444 transmitter is preconfigured on delivery from Endress+Hauser. Take the following steps if you want other settings or want to connect an additional sensor. - Page 27 AI 10 Sensor 5 secondary value – – AI 11 Sensor 6 primary value – – AI 12 Sensor 6 secondary value – – AI 13 Sensor 7 primary value – – AI 14 Sensor 7 secondary value – – Endress+Hauser...
-
Page 28: Commissioning The Modbus Edge Device
2. Log in or register. Once the user has logged in successfully, the Assets page is displayed. 3. Select the Add function. 4. Enter the serial number of the Liquiline CM444 transmitter. 5. Enter the serial number of a connected sensor. Endress+Hauser... -
Page 29: Installing A Smartphone Application
The user owns the Smart System (→ 28). 1. Download the Smart Systems App from the Apple AppStore or Google Play Store. 2. Install the Smart System App. 3. Log in. The devices are displayed in the overview. Endress+Hauser... -
Page 30: Nameplate
Nameplate Smart System for Aquacultures SSP200B Nameplate Endress+Hauser... -
Page 31: Diagnostics And Troubleshooting
Diagnostics and troubleshooting Smart System SSP For an overview of the alarms currently pending, see the "History" view in the Smart System App. Liquiline CM444 For detailed information on transmitter diagnostics and troubleshooting, see the Operating Instructions for Liquiline CM444 . Endress+Hauser... -
Page 32: Maintenance
For more information, see the next section. 10.1 Endress+Hauser services Endress+Hauser offers a wide variety of services for maintenance such as recalibration, maintenance service, system tests or device tests. Your Endress+Hauser Sales Center can provide detailed information on the services. -
Page 33: Repair
11.1 General information Please note the following: • Repairs may only be performed by Endress+Hauser staff or by individuals authorized and trained by Endress+Hauser. • Observe local and national laws and regulations. • Standard components can be replaced with identical components. -
Page 34: Technical Data
Technical data Smart System for Aquacultures SSP200B Technical data For detailed information on the technical data, see the Technical Information for the particular product → 6. Endress+Hauser... - Page 36 www.addresses.endress.com...
