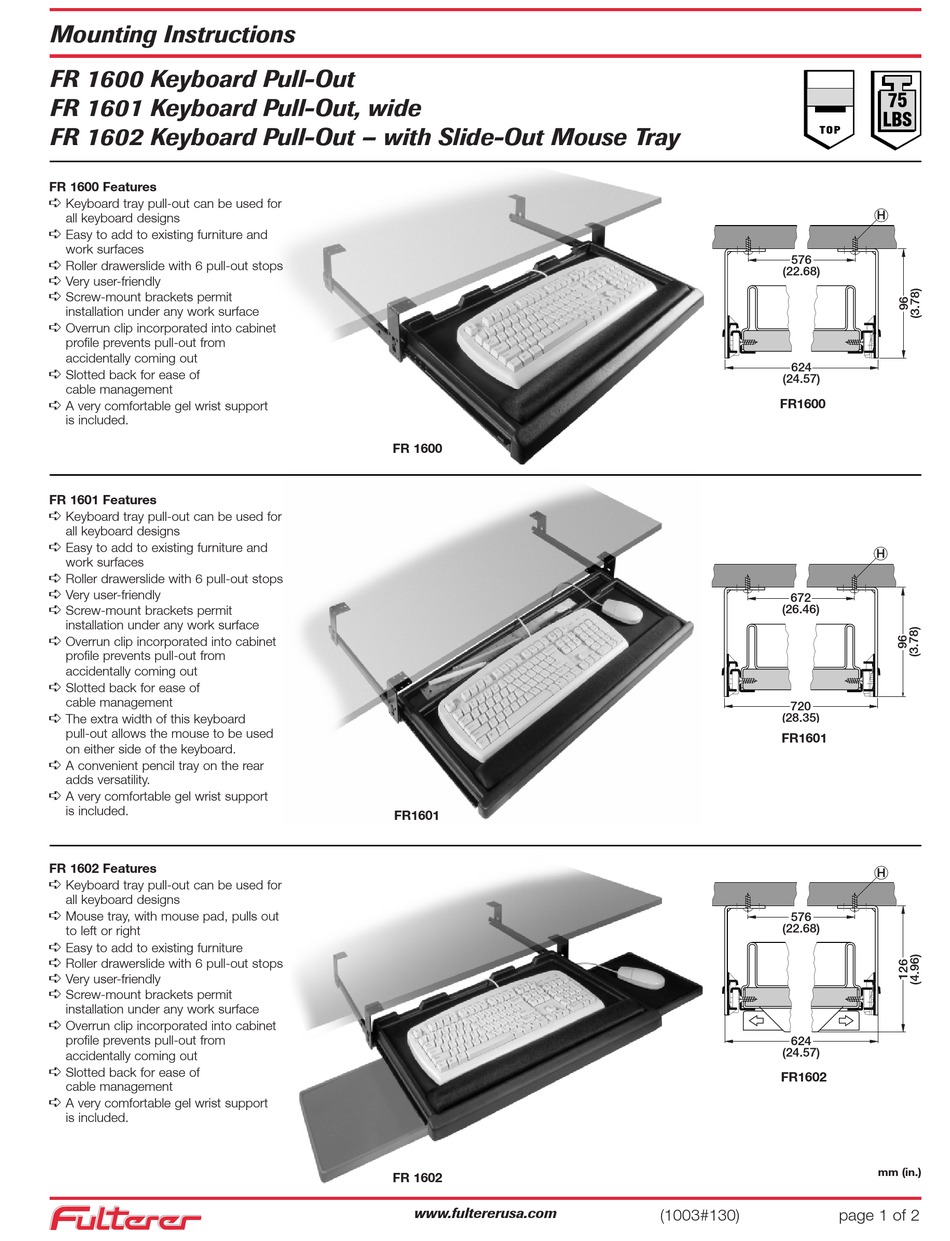

Fulterer FR 1600 Mounting Instructions

Mounting Instructions
FR 1600 Keyboard Pull-Out
FR 1601 Keyboard Pull-Out, wide
FR 1602 Keyboard Pull-Out – with Slide-Out Mouse Tray
FR 1600 Features
< Keyboard tray pull-out can be used for
all keyboard designs
< Easy to add to existing furniture and
work surfaces
< Roller drawerslide with 6 pull-out stops
< Very user-friendly
< Screw-mount brackets permit
installation under any work surface
< Overrun clip incorporated into cabinet
profile prevents pull-out from
accidentally coming out
< Slotted back for ease of
cable management
< A very comfortable gel wrist support
is included.
FR 1601 Features
< Keyboard tray pull-out can be used for
all keyboard designs
< Easy to add to existing furniture and
work surfaces
< Roller drawerslide with 6 pull-out stops
< Very user-friendly
< Screw-mount brackets permit
installation under any work surface
< Overrun clip incorporated into cabinet
profile prevents pull-out from
accidentally coming out
< Slotted back for ease of
cable management
< The extra width of this keyboard
pull-out allows the mouse to be used
on either side of the keyboard.
< A convenient pencil tray on the rear
adds versatility.
< A very comfortable gel wrist support
is included.
FR 1602 Features
< Keyboard tray pull-out can be used for
all keyboard designs
< Mouse tray, with mouse pad, pulls out
to left or right
< Easy to add to existing furniture
< Roller drawerslide with 6 pull-out stops
< Very user-friendly
< Screw-mount brackets permit
installation under any work surface
< Overrun clip incorporated into cabinet
profile prevents pull-out from
accidentally coming out
< Slotted back for ease of
cable management
< A very comfortable gel wrist support
is included.
FR 1600
FR1601
FR 1602
www.fultererusa.com
TOP
576
(22.68)
624
(24.57)
FR1600
672
(26.46)
720
(28.35)
FR1601
576
(22.68)
624
(24.57)
FR1602
(1003#130) page 1 of 2
75
LBS
H
H
H
mm (in.)
