ICP DAS USA I-7531 Quick Start Manual

Can repeater
Hide thumbs Also See for I-7531:
1
2
3
4

Advertisement

Table of Contents

I-7531
CAN Repeater
Quick Start Guide
Product Website:
https://www.icpdas-usa.com/i_7531
1.

Introduction

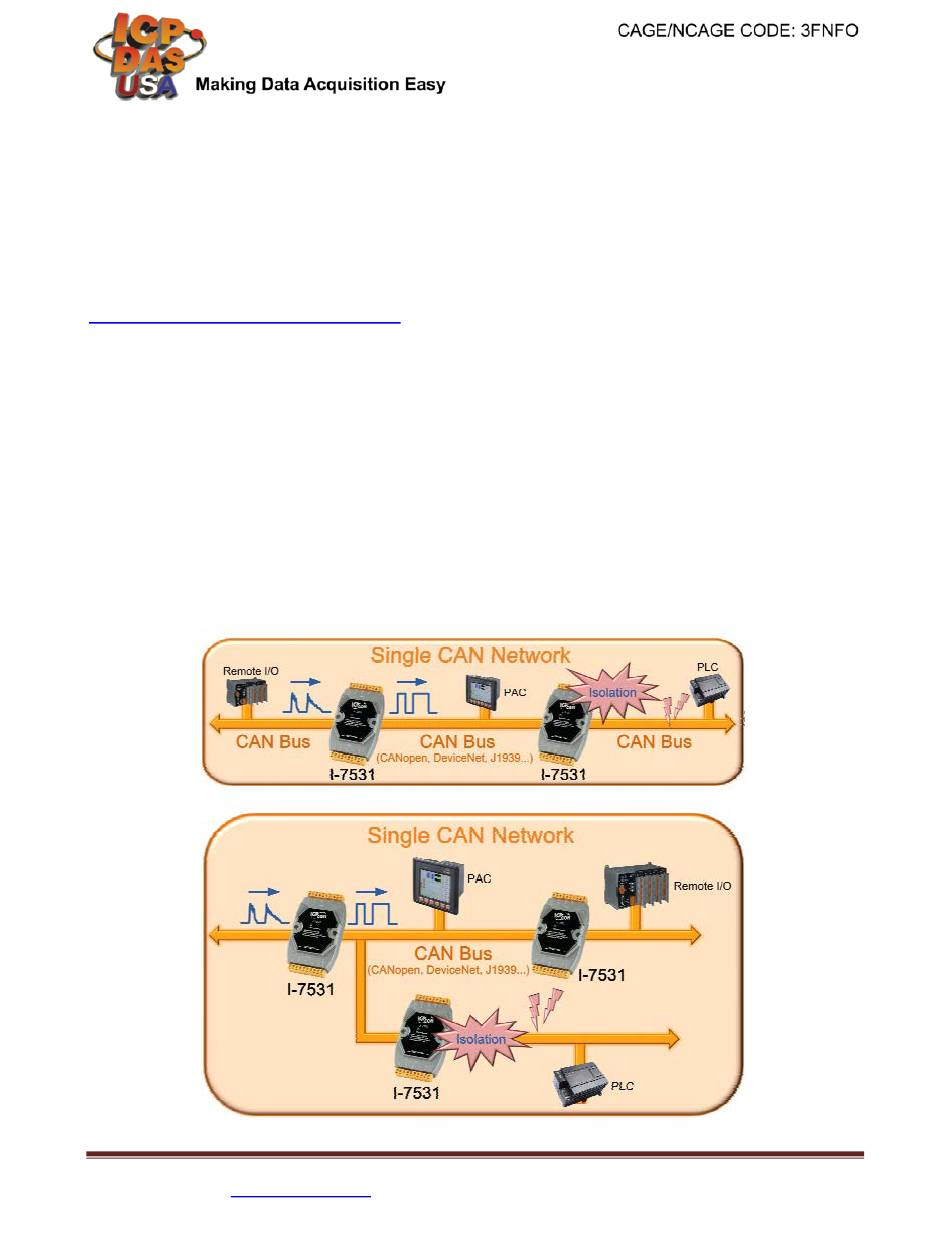

The I-7531 is an isolated CAN repeater that can be used to establish a physical
coupling of two segments of a CAN bus system. This module is designed to isolate the
noise and disturbance between the two CAN ports of the I-7531. When the CAN signal
is decayed because of the rough bus cable or noise, the I-7531 can recover the shape
of the CAN signals to the original ones. Tree topologies can be implemented as well as
long drop lines using the I-7531. In order to use the I-7531 easily, the module can
automatically adjust the baud rate by itself to match the CAN network. Users just
connect the I-7531 with the CAN buses, check the terminator resistor and power it on,
subsequently the I-7531 enable to work normally.
I-7531 CAN Repeater
- QuickStart (Jan/2018)
ICP DAS USA, Inc. |
www.icpdas-usa.com
| 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the I-7531 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ICP DAS USA I-7531

Summary of Contents for ICP DAS USA I-7531

  • Page 1 CAN ports of the I-7531. When the CAN signal is decayed because of the rough bus cable or noise, the I-7531 can recover the shape of the CAN signals to the original ones. Tree topologies can be implemented as well as long drop lines using the I-7531.
  • Page 2 Appearance When the I-7531 is turned on, the status LED will be display with red light. Moreover, when a message passes through I-7531, the status LED will be twinkle once with yellow light while the red light is still on.
  • Page 3 3. Terminator Resistor Setting I-7531 CAN Repeater - QuickStart (Jan/2018) ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717...
  • Page 4 Note2: Roughly speaking, wiring of CAN_GND and FG can improve the capability of anti-interference of CAN bus system in harsh environment, but this is not necessary. Note3: When users want to calculate the total bus line length, I-7531 need also be considered.
