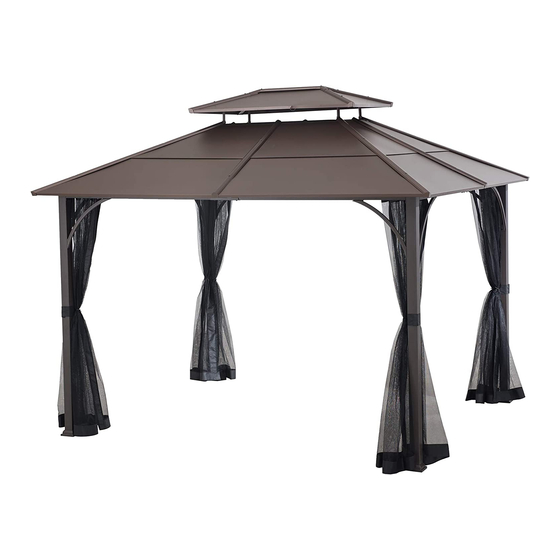

ITEM NO.：A102009100
WE HAVE YOU IN MIND, LET US SERVE YOU!
Questions? Issues?
CONTACT US
24 hours / 7 days a week
www.sunjoyonline.com
customer.care@sunjoygroup.com
1-(866)-578-6569
Country of Origin: China
Production Number: xxxxxxxxxx

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A102009100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sunjoy A102009100

Summary of Contents for Sunjoy A102009100

  • Page 1 ITEM NO.：A102009100 WE HAVE YOU IN MIND, LET US SERVE YOU! Questions? Issues? CONTACT US 24 hours / 7 days a week www.sunjoyonline.com customer.care@sunjoygroup.com 1-(866)-578-6569 Country of Origin: China Production Number: xxxxxxxxxx...

  • Page 2: Table Of Contents

    2 / 25 Table of Contents Table of Contents ............2   Pre-Assembly ..............3   Planning Assembly ..............3   Safety Information ............2   Warranty ................. 2   Hardware Included ..............3   What is Covered ...............2   Package Contents ..............4   What is Not Covered ..............2  ...

  • Page 3: Pre-Assembly

    3 / 25 Pre-Assembly PLANNING ASSEMBLY Before beginning assembly of this product, make sure all parts are present. Compare parts with the Hardware Included and Package Contents lists. If any part is missing or damaged, do not attempt to assemble the product. Contact customer service for replacement parts.

  • Page 4: Package Contents

    4 / 25 Pre-Assembly (continued) PACKAGE CONTENTS Country of Origin: China...
  • Page 5 5 / 25 Pre-Assembly (continued) Country of Origin: China...
  • Page 6 6 / 25 Pre-Assembly (continued) Part Part Number Description Quantity Part Part Number Description Quantity P000200311 Post Big roof long side bottom panel P000700399 (Right) P000100191 Stake base P000800168 Small roof support beam cover P006100120 Stake cover P000800169 Slanting beam cover P000400666 Long cross beam (Left) P000800170...

  • Page 7: Assembly

    7 / 25 Assembly Attaching the Stake Bases and Slanting Beam Connectors  Slide the Stake covers (C) over the Posts (A1). Attach the Stake bases (B1) to the Posts (A1) using Bolts (CC) and Flat washers (BB).  Attach the Slanting beam connectors (F1) to the top of the Posts (A1) using Bolts (AA) and Flat washers (BB). To avoid destroying the finish, do not put the parts on the ground directly.

  • Page 8: Care And Cleaning

    8 / 25 Assembly Connecting the Cross Beams  Attach the Middle beam connectors 1 (G1&G2) on the Cross beams (D3&D4, E3&E4) using Bolts (JJ), Flat washers (BB), Spring washers (LL), and Nuts (EE). Tighten the bolts. To avoid destroying the finish, do not put the parts on the ground directly. NOTE: Country of Origin: China...
  • Page 9 9 / 25 Assembly Attaching the Cross Beams  Attach the assembled Cross beams (D3&D4, E3&E4) to the Posts (A1) using Bolts (AA), Flat washers (BB) and Spring washers (LL). Tighten the bolts. To avoid destroying the finish, do not put the parts on the ground directly. NOTE: Country of Origin: China...
  • Page 10 10 / 25 Assembly Attaching the Curve Supports  Attach the Curve supports (U) to the Posts (A1) and Cross beams (D3&D4, E3&E4) using Bolts (KK), Flat washers (BB) and Spring washers (LL). Tighten the bolts. To avoid destroying the finish, do not put the parts on the ground directly. NOTE: Country of Origin: China...
  • Page 11 11 / 25 Assembly Connecting the Big Roof  Assemble the Big top connector tubes (J4&J5) with the Big top connectors (J6) using Bolts (CC) and Flat washers (BB). Tighten the bolts. To avoid destroying the finish, do not put the parts on the ground directly. NOTE: Country of Origin: China...
  • Page 12 12 / 25 Assembly Attaching the Slanting Beams  Connect the top of the Slanting beams (H1) with the Big top connectors (J6) using Bolts (AA) and Flat washers (BB).  Connect the bottom of the Slanting beams (H1) with the Slanting beam connectors (F1) using Bolts (AA) and Flat washers (BB). Tighten the bolts.
  • Page 13 13 / 25 Assembly Attaching the Middle Beams  Connect the top of the Middle beam 2 (I2) with the Big top long connector tubes (J4) using Bolts (AA) and Flat washers (BB).  Connect the bottom of the Middle beam 2 (I2) with the Middle beam connector 1 (G1) using Bolts (DD), Flat washers (BB) and Nuts (EE). To avoid destroying the finish, do not put the parts on the ground directly.
  • Page 14 14 / 25 Assembly Attaching the Hook and the Small Roof Support Beams  Insert and screw the Hook (N) tightly into the corresponding hole on the Small roof connector (L).  Attach the Small roof support beams (K) to the Small roof connector (L) using Bolts (DD), Flat washers (BB) and Nuts (EE). To avoid destroying the finish, do not put the parts on the ground directly.
  • Page 15 15 / 25 Assembly Attaching the Small Roof  Attach the Small roof support beams (K) to the Big Top Connector (J6) using Bolts (CC) and Flat washers (BB). To avoid destroying the finish, do not put the parts on the ground directly. NOTE: Country of Origin: China...
  • Page 16 16 / 25 Assembly Attaching the Small Roof Panels  Attach the Small roof long panels (P1) and Small roof short panels (P2) to the Small roof frame using Bolts (CC) and Flat washers (BB). To avoid destroying the finish, do not put the parts on the ground directly. NOTE: Country of Origin: China...
  • Page 17 17 / 25 Assembly Attaching the Small Roof Support Beam Covers  Attach the Small roof support beam covers (S1) to the Small roof frame using Bolts (KK) and Flat washers (BB). Then place the Small roof covers (M) in the Small roof connector and secure using Bolts (II) and Flat washers (BB). To avoid destroying the finish, do not put the parts on the ground directly.
  • Page 18 18 / 25 Assembly Attaching the Big Roof Beams and the Big Roof Lower Beams  Attach the Big roof short side beams (W2) to the top of the Middle beams 2 (I2) and Slanting beams (H1) using Bolts (CC) and Flat washers (BB).
  • Page 19 19 / 25 Assembly Attaching the Pipes  Attach the Pipes (T5&T6&T7&T8) to the Middle beams 2 (I2) and Slanting beams (H1) using Bolts (CC) and Flat washers (BB). To avoid destroying the finish, do not put the parts on the ground directly. NOTE: Country of Origin: China...
  • Page 20 20 / 25 Assembly Attaching the Big Roof Upper Panels  Attach the Big roof panels (Q1, R1, R2) to the Slanting beams (H) and Middle beams (I) using Bolts (CC) and Flat washers (BB). To avoid destroying the finish, do not put the parts on the ground directly. NOTE: Country of Origin: China...
  • Page 21 21 / 25 Assembly Attaching the Big Roof Bottom Panels  Attach the Big roof panels (Q2, Q3, R3, R4) to the Slanting beams (H) and Middle beams (I) using Bolts (CC) and Flat washers (BB). To avoid destroying the finish, do not put the parts on the ground directly. NOTE: Country of Origin: China...
  • Page 22 22 / 25 Assembly Attaching the Slanting Beam Covers  Attach the Slanting beam covers (S2) to the Slanting beams (H) using Bolts (KK) and Flat washers (BB). Repeat for the Middle beam covers (S3). To avoid destroying the finish, do not put the parts on the ground directly. NOTE: Country of Origin: China...
  • Page 23 23 / 25 Assembly Hanging the Mosquito Netting  Hang the Mosquito netting (V) to the Pipes (T5, T6, T7, T8) using the Plastic rings (GG). To avoid destroying the finish, do not put the parts on the ground directly. NOTE: Country of Origin: China...
  • Page 24 24 / 25 Montage Finition du Montage Attach the assembled pergola to lawn with Stake (HH).  NOTE: To avoid destroying the finish, do not put the parts on the ground directly. Country of Origin: China...
  • Page 25 Periodically check and ensure that all bolts are well‐tighten during use  Limited Manufacturer’s Warranty Sunjoy Group warrants to the original purchaser that this item is free from defects in workmanship and materials for a period of 1 year from the date of purchase, provided the item was factory-sealed at the time of purchase and is maintained with care and used only for personal, residential purposes.
