- Page 1 User Manual OTPS1KW-ASM-ROV-R1/ OTPS1KW-ASM-TOPSIDE-R2 Outland Technology, Inc. 38190 Commercial Court, Slidell, LA 70458 985-847-1104 sales@outlandtech.com www.outlandtech.com Document Number: 46-0013 Rev 2 July 2020...
-
Page 2: Table Of Contents
Contents Safety at a Glance ........................... 3 System Overview ..........................4 Power Supply Unit: OTPS1KW-ASM-TOPSIDE-R2 ............... 4 ROV Power Supply Enclosure: OTPS1KW-ASM-ROV-R1 ............. 5 System Status Display........................5 User Access Area ......................... 5 Installation ............................5 Quick Start Guide ..........................6 Troubleshooting .......................... -
Page 3: Safety At A Glance
Only trained and experienced personnel should operate the equipment. Warning The OTPS1KW-ASM-TOPSIDE-R2 system is supplied with 100-240V supplies 400V . Improper use may result in electrical shock or electrocution. Only trained and experienced personnel should operate the equipment. -
Page 4: System Overview

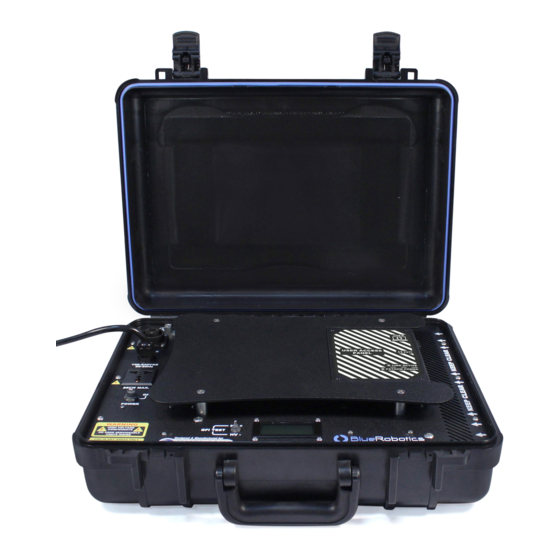

The tether is comprised of two twisted pairs for data and 3 pairs for power. The power conductors allow for operation out to 300m. The top side power supply, OTPS1KW-ASM-TOPSIDE-R2, provides 400VDC to the OTPS1KW-ASM-ROV-R1. The supply incorporates a GFI for user safety, and status indicator which reports power supply output voltage, current and run time. -
Page 5: Rov Power Supply Enclosure: Otps1Kw-Asm-Rov-R1
Fathom-X interface board. The orange pair is available to the user as an additional connection. Installation The OTPS1KW-ASM-ROV-R1 bottle is delivered ready for install. Follow the standard procedure for the Blue ROV2 Assembly. Outland Technology Power Supply BlueROV2 Integration Guide... -
Page 6: Quick Start Guide
3. Inspect tether and bottle connectors for damage and lubricate with waterproof silicone grease. Grease procedure: Subconn Handling Instructions 4. Connect tether to OTPS1KW-ASM-ROV-R1 and OTPS1KW-ASM-TOPSIDE-R2. Be mindful of the of the connector mating position when connecting. 5. Test GFI a. -
Page 7: Electrical Interface
• Turn Off system power, disconnect ROV tether from the OTPS1KW-ASM-TOPSIDE-R2. Turn On system power and observe the HV bias reading. If reading anything over ±2%, there is an issue with the power supply. Return for repair. • If the HV Bias is <±2% with tether disconnected, turn Off system power and reconnect tether to the OTPS1KW-ASM-TOPSIDE-R2. - Page 8 Fathom-X - Blue Fathom-X pair Fathom-X + Blue/White Note: All 4 pairs are wired up to the 8pin tether connector using a 1-1 connection by wire color. OTPS1KW-ASM-TOPSIDE-R2 Power Supply Connections Input Power Connector: IEC 320-C13 Signal Function Description Line...
- Page 9 Signal Function Description Fathom-X+ Spare- Signal Spare Twisted Pair Spare+ Protective Earth Protective Earth GND USB FXTI Connection Connector: USB Type-B Standard USB pinout Signal Function Description Power Signal Data - Signal Data + Ground External FXTI Connection Connector: Binder 770 Orange/ Signal Wire Color...
- Page 10 Tether Wiring...
