Sunnydaze Decor KF-607 Assembly Instruction Sheet

Prior to assembly, please read these instructions carefully. We suggest you carry out assembly on a soft surface so as to avoid scratching
the paint. For all cast iron products,please note that because of the nature of cast metal, you may find roughness on the surface. This
enhances the beauty of the product and is not a defect.
* Do not discard any of packaging until you have checked that you have all parts and pack of fittings.
* Keep children away during assembly. This item contains small parts which can be swallowed by children.
* Retain the assembly unstructions for future reference.

Part list:

NO. Parts
A Rain lid
B Flue grill
C Flue mouth
D Flue
E Top body
F Mesh body
G Log grate
H Ash plate
I Bottom body
J Base holder
K Base
L Rain cover
T Bolt(1/4"x5/8")
U Washer
V Nut
Y Spanner
Z Poker
Tools required: Spanner(Y), Poker (Z) provided in package.
DO NOT FULLY TIGHTEN THE BOLTS BEFORE ASSEMBLING THE BASE
1. Assemble Base holder(J) onto Base(K) with 4 Bolts (T), 4 Washer(U) and 4 Nut(V).
2. Assemble Bottom body(I) to Base holder(J) with 4 Bolt(T), 4 Washer(U) and 4Nut(V) .
3. Assemble Mesh body(F) to Bottom body(I) with 4 Connection Piece(O), 8 Bolt(T), 8 Washer(U) and 8 Nut(V) .
4. Assemble Mesh body(F) to Top body(E) with 4 Connection Piece(O), 8 Bolt(T), 8 Washer(U) and 8Nut(V) .
5. Assemble Flue(D) to Top body(E) with 4 Bolt(T), 4 Washer(U) and 4 Nut(V) .
6. Put the Flue mouth(C) on the Flue(D). Put flue grill(B) on the Flue mouth(C). Put the rain lid(A) on the chimeneas.
7. Put Ash plate(H) on the bottom of the body, put Log grate(G) on the Ash plate(H).
Now the assembly is completed.
Outdoor Chimenea & Fire Pit User Guide
Users should exercise care and caution when using this product.
This product is for outdoor use and will become very hot during use.
Thank you for choosing Sunnydaze Decor. If you have any questions, comments or concerns please feel free to
contact us by phone at: 888-881-4668, by email:customerservice@serenityhealth.com, or you could also email
us via our contact us page at: www.SerenityHealth.com/contact_us.php.
We stand behind our brand and the quality of the items we sell. We will send new parts, or replace products at our
discretion within the one year warranty period. Before we can help, you will need to provide proof of purchase with
the date of purchase and photos of the defective merchandise. We will use the photos to determine the cause of
defect and for future quality control.

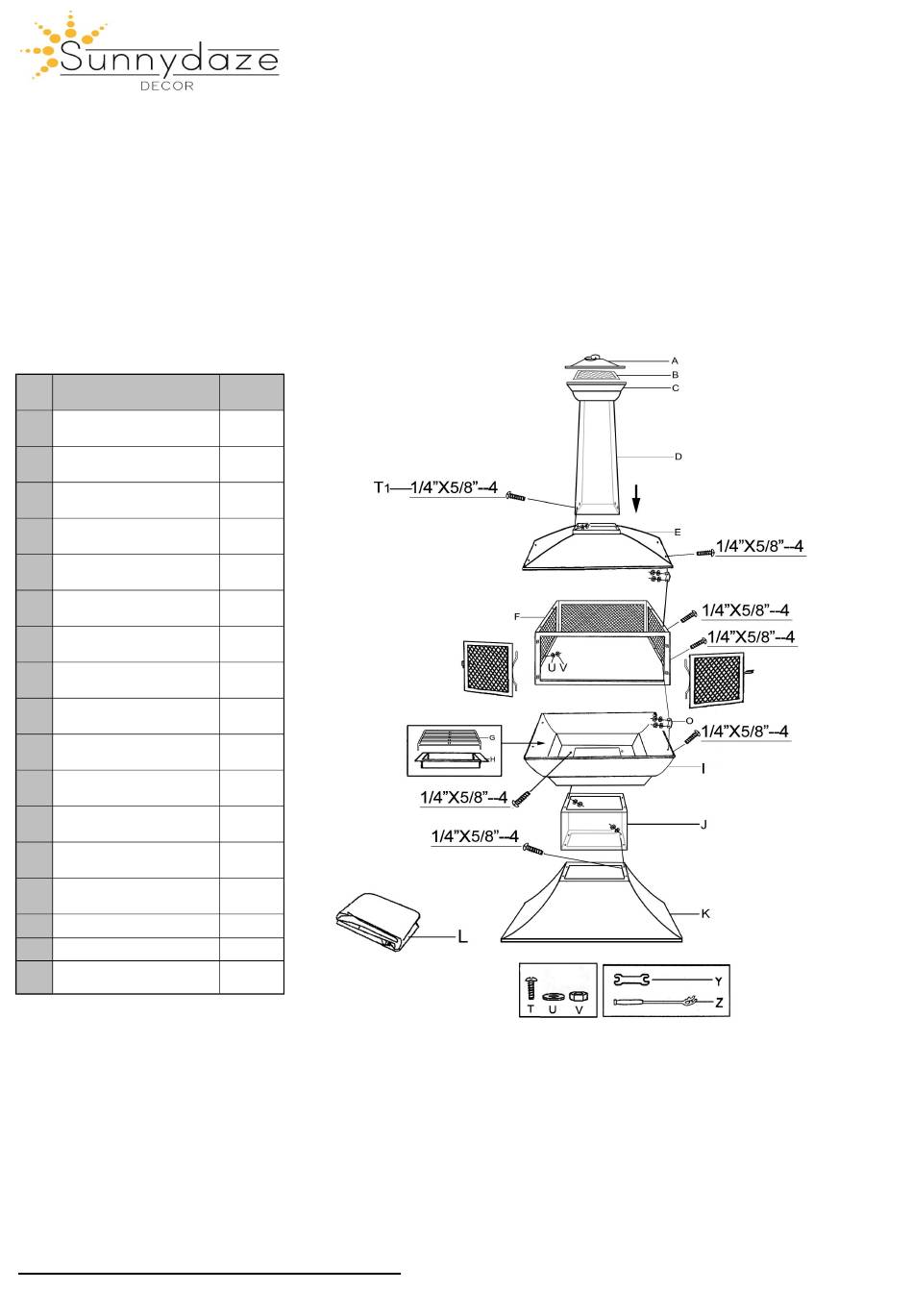

ASSEMBLY INSTRUCTIONS SHEET
