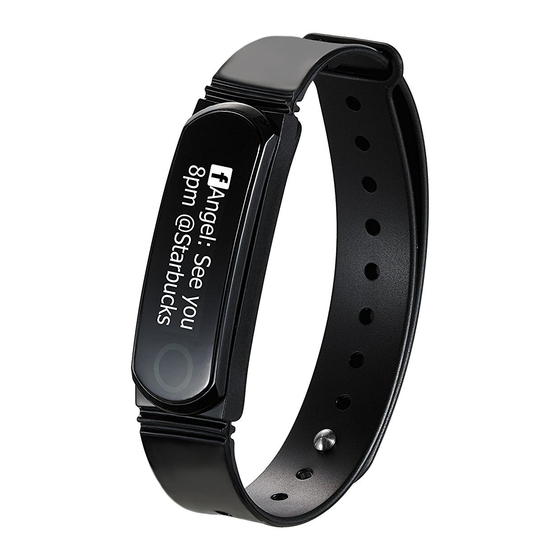

I-gotU Q-66HR User Manual

Q-66HR

Device Overview

Wristband

How to wear your Q-66HR?

1
Wear Q-66HR on your wrist
Put on the wristband with the screen facing up and the band
wrapped around your wrist. Align the clasp along the band to
find the holes where best fit the clasps.
3
Charge your Q-66HR
1
To charge your Q-66HR, place it in the charging box at the
other end of the USB cable. Close the box afterwards, and
make sure the Q-66HR is securely covered. Plug the USB
connector to either a PC or power adapter to start charging.
Q-Band
Touch Button
2
3
Core
Metallic contact for charging
Optical Sensor
2
Fasten Q-66HR with clasp
Squeeze both clasps into the holes on the wristband until you
hear a click, indicating the band is securely fastened.
4
Change the wristband
1
2
1. Spread open both bands with the screen facing up, and press down the screen
with your thumb until the core comes off the wristband.
2. Insert the core with screen facing up into the notch from below the wristband.
Make sure the two tenons on each side of the core are securely fixed into the
corresponding slots in the bands.
3. Button up the clasp on the side of the band with 2 holes. Please note that the
charging contact should be near the clasp.
Important Notice:
Failure to follow the instructions above might cause damage to the device.
EN
User Manual
Clasp
