TRAK Machine Tools

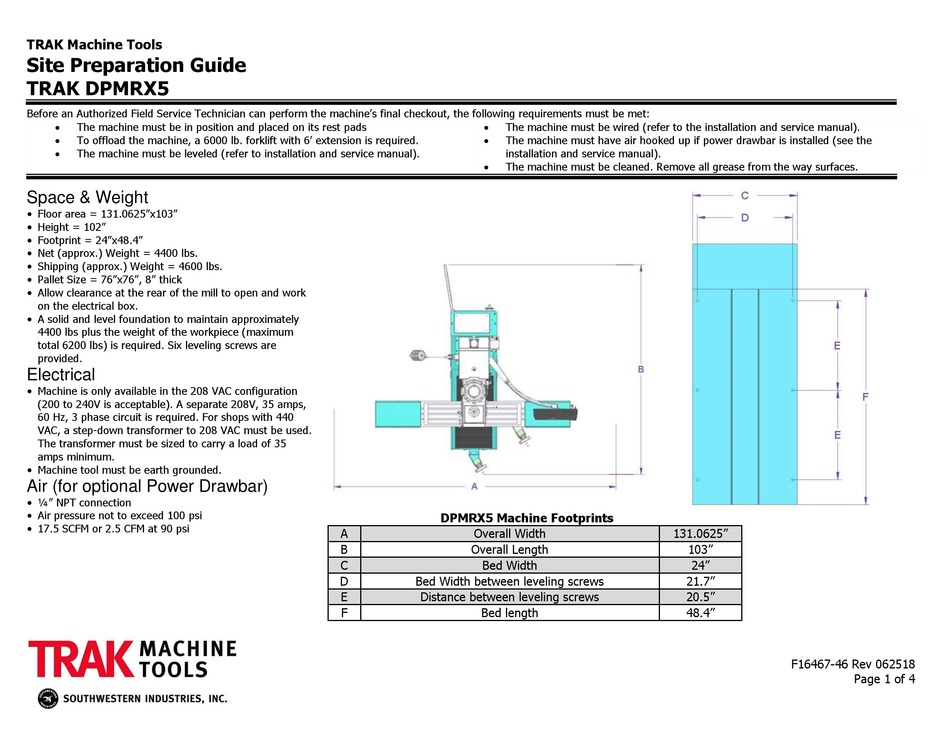

Site Preparation Guide
TRAK DPMRX5
Before an Authorized Field Service Technician can perform the machine's final checkout, the following requirements must be met:
 The machine must be in position and placed on its rest pads
 To offload the machine, a 6000 lb. forklift with 6' extension is required.
 The machine must be leveled (refer to installation and service manual).
Space & Weight
• Floor area = 131.0625"x103"
• Height = 102"
• Footprint = 24"x48.4"
• Net (approx.) Weight = 4400 lbs.
• Shipping (approx.) Weight = 4600 lbs.
• Pallet Size = 76"x76", 8" thick
• Allow clearance at the rear of the mill to open and work
on the electrical box.
• A solid and level foundation to maintain approximately
4400 lbs plus the weight of the workpiece (maximum
total 6200 lbs) is required. Six leveling screws are
provided.
Electrical
• Machine is only available in the 208 VAC configuration
(200 to 240V is acceptable). A separate 208V, 35 amps,
60 Hz, 3 phase circuit is required. For shops with 440
VAC, a step-down transformer to 208 VAC must be used.
The transformer must be sized to carry a load of 35
amps minimum.
• Machine tool must be earth grounded.
Air (for optional Power Drawbar)
• ¼" NPT connection
• Air pressure not to exceed 100 psi
• 17.5 SCFM or 2.5 CFM at 90 psi
 The machine must be wired (refer to the installation and service manual).
 The machine must have air hooked up if power drawbar is installed (see the
installation and service manual).
 The machine must be cleaned. Remove all grease from the way surfaces.
DPMRX5 Machine Footprints
A Overall Width
B Overall Length
C Bed Width
D Bed Width between leveling screws
E Distance between leveling screws
F Bed length
131.0625"
103"
24"
21.7"
20.5"
48.4"
F16467-46 Rev 062518
Page 1 of 4
