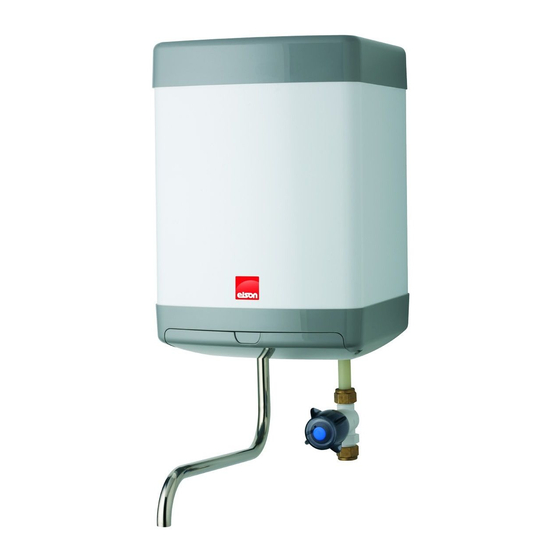

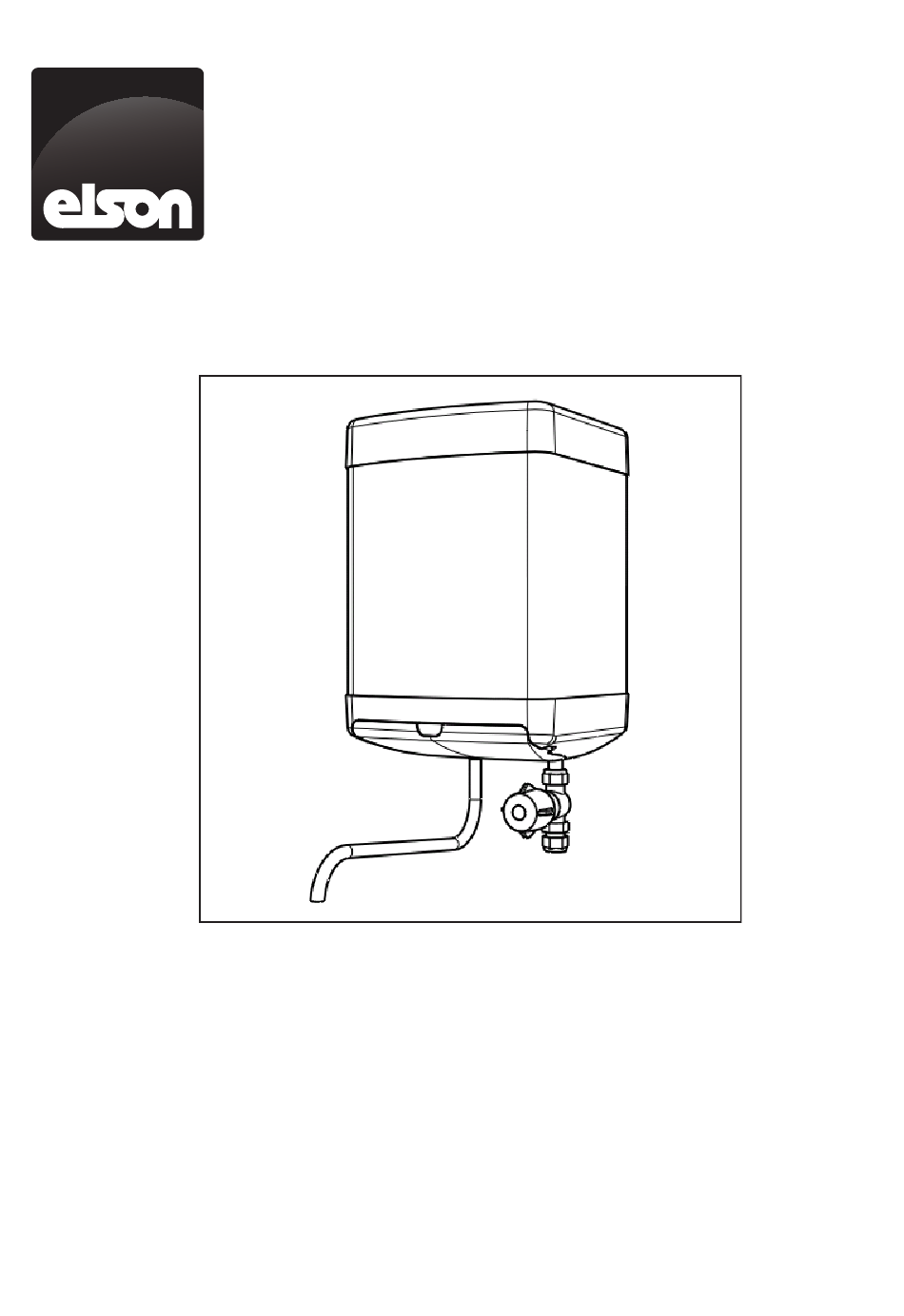

Elson 7 litre Oversink Vented
Water Heater
Installation and User Instructions
Model: EOS7
Please read and understand these instructions before starting work.
Please leave this leaflet with the user following installation
This water heater must only be installed by competent persons.
Heater, fixing screws and plugs, spout, valve,
installation and user instructions, guarantee card.
WARNING
PACK CONTENTS
36006231 Issue 2
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Elson EOS7
Summary of Contents for Elson EOS7
- Page 1 Elson 7 litre Oversink Vented Water Heater Installation and User Instructions Model: EOS7 Please read and understand these instructions before starting work. Please leave this leaflet with the user following installation WARNING This water heater must only be installed by competent persons.
- Page 2 1.0 INTRODUCTION Thank you for purchasing an Elson EOS7 water heater. The water heater is manufactured in the UK to the highest standards and has been designed to meet all the latest relevant safety specifications. The EOS7 water heater must be installed and commissioned by a competent person.
- Page 3 The outlet of this water heater acts as a vent and must not be blocked or restricted in any way. 3.1.3 Only use Elson open outlet spouts. 3.1.4 The installation must be carried out in accordance with the relevant requirements of the appropriate Building Regulations. Either The Building...
- Page 4 pressure to the front of the cover pushing it backwards and upwards until it snaps securely in place. 3.2 PLUMBING 3.2.1 Connect the control valve supplied to the inlet pipe on the water heater. 3.2.2 Connect the cold water main to the control valve using 15mm outside diameter pipe (either copper to BS EN 1057 or stainless steel to BS 4127).
- Page 5 FIGURE 02: INTERNAL LAYOUT CABLE INLET CABLE CLAMP GROMMET OUTLET TERMINAL BLOCK DRAIN PLUG THERMOSTAT CONTROL ELEMENT CAPILLARY STAT EARTH POST THERMAL CUT-OUT FIGURE 03: WIRING DIAGRAM EARTH GREEN&YELLOW THERMOSTAT NEUTRAL (BLACK) BLUE/BLACK LIVE (RED) BROWN/RED THERMOSTAT BULB TERMINAL BLOCK THERMAL FUSE TO ELEMENT...
- Page 6 5 .0 FAULT FINDING Your EOS7 water heater should give you trouble free operation, however, should a problem occur the table below should enable most faults to be identified with ease. Fault finding should only be carried out by a competent person and any replacement part should be authorised Elson spare parts.
- Page 7 This guarantee in no way affects the statutory rights of the consumer. Elson’s policy is one of continuous product development and, as such, we reserve the right to change specifications without notice.
- Page 8 9 .0 SPARES STOCKISTS Electric Water Heating Co. 2 Horsecroft Place, Pinnacles, Harlow, Essex CM19 5BT Tel: 0845 0553811 E-mail: sales@ewh.co.uk SPD - Special Products Division Units 9 & 10 Hexagon Business Centre Springfield Road, Hayes Middlesex UB4 0TY Tel : 020 8606 3567 Parts Center Tel: 0344 292 7057 www.partscenter.co.uk...
