Summary of Contents for Bornay Wind 13+

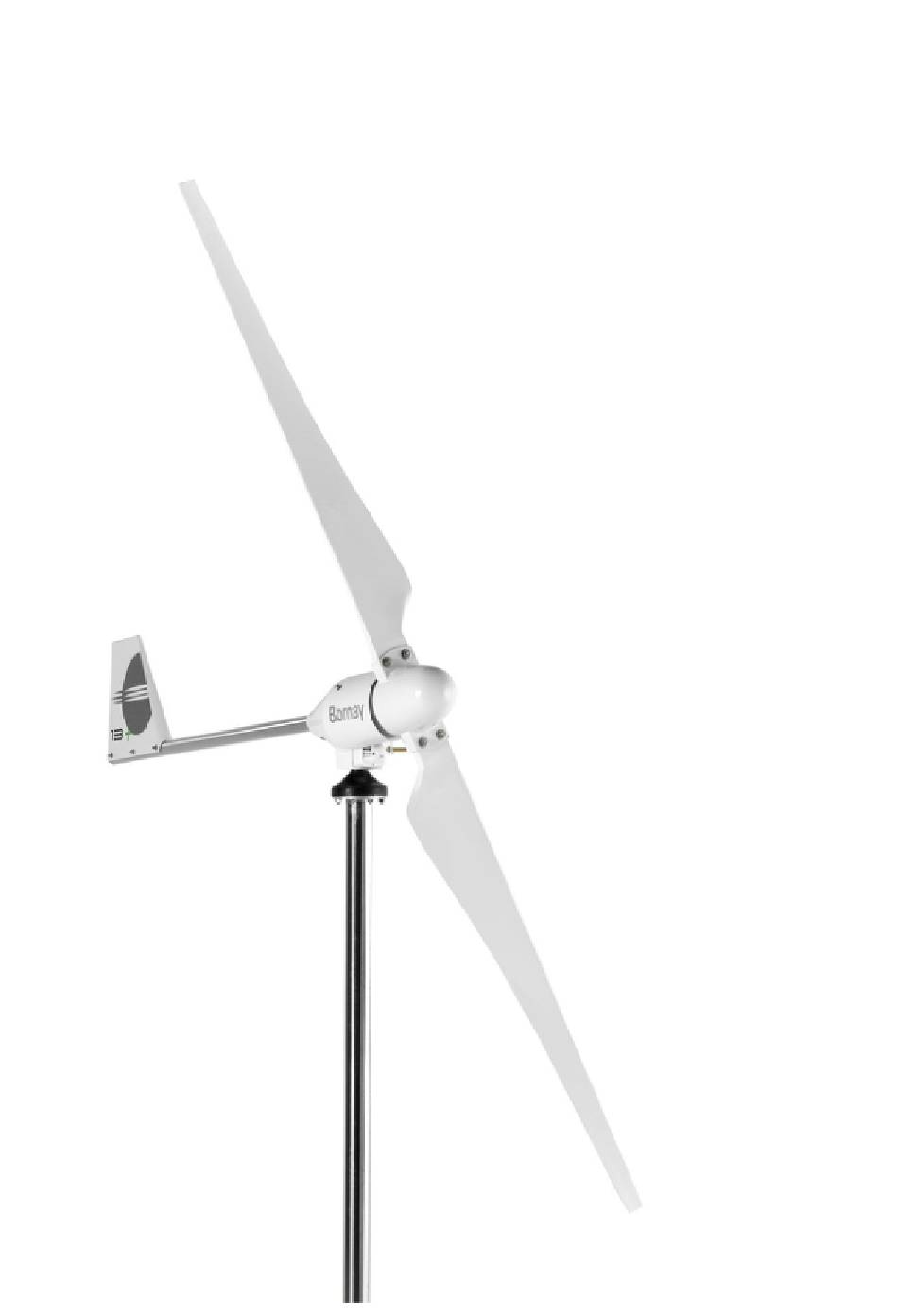

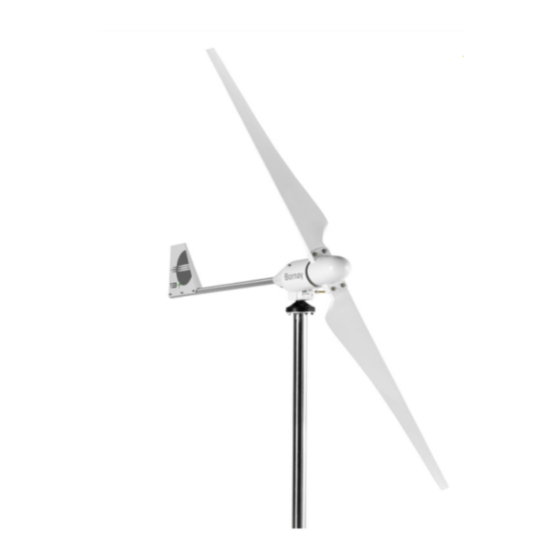

- Page 1 Wind 13+ Manual Installation Operation Maintenance...
-
Page 2: Table Of Contents
Index Index Welcome to the world of the wind Wind Turbine Components Datasheet Placing your wind turbine Installation The Tower Electrical wiring Installing the Wind Turbine Maintenance Frequently ask questions Annex Declaration of conformity Warranty... -
Page 3: Welcome To The World Of The Wind
W e are fully available for consultation should you need any type of information about your wind turbine or its installation. Once again, we welcome you to the World of the Wind. Most sincerely Bornay Wind turbines... - Page 4 Interesting information In this manual you will find all the information needed to install and maintain y o u r w i n d turbine. W e strongly r e c o m m e n d that y o u r e a d this m a n u a l thoroughly and understand it before beginning assembly.
-
Page 5: Wind Turbine Components
Wind Turbine Components Next to this documentation, in the original box, you will find the components listed below. Some items may already assemble: 1 Tail 1 Tail tube 1 Nacelle 1 Alternator 1 Hub 2 Blades 1 Frontal cone 1 Set of bolts 1 Fixation plate Blade Alternator... -
Page 6: Datasheet 3
Datasheet Wind 13+ Wind 25.2+ Wind 25.3+ Technical specifications Number of blades Diameter 2,86 m 4,05 m 4,05 m Material Fiberglass / Carbon Fiber Direction of rotation Counterclockwise Electric specifications Alternator Three phases permanent magnet Magnets Neodynium Nominal power 1500 W 3000 W 5 0 0 0 W Nominal voltage... - Page 7 Model A (mm) B (mm) C (mm) D (mm) E (mm) Wind 13+ 1430 1670 2 0 4 0 Wind 25.2+ 2 0 0 0 2140 2610 Wind 25.3+ 2 0 0 0 2 6 4 0 3135...
-
Page 8: Placing Your Wind Turbine
Placing your wind turbine The best site to install a wind turbine will be CAUTION: a place where it is exposed to the most For more information on constant a n d highest w i n d s p e e d possible. obstacles affecting wind W ind speed depends enormously o n the turbines, see Annex 2. -
Page 9: The Tower
The Tower It is recommended to install the wind turbine on an Independent tower, and not next to the house to avoid turbulences. Anchoring the tower is carried out according to CAUTION: the type for installation, a n d m ust b e fixed Check constantly to securely to the ground, normally with concrete ensure that the tower is... - Page 10 " CAUTION: WARNING: Any object touching the blades Wind turbine must be able to in movement, will break them turn 360º freely with no and will unbalance the system obstacles in its way. causing major problems O n c e the w i n d turbine h a s b e e n installed o n the tower, c h e c k that it can turn freely a n d that there are no obstacles within the diameter of the blades.
-
Page 11: Electrical Wiring
Electrical wiring Full electrical wiring installation must be carried out prior to the installation of the wind turbine and once the tower has been installed. " CAUTION: WARNING: Never install the wind turbine if Never invert polarity. the regulator and batteries are Use appropriate sized cables. -
Page 12: Installing The Wind Turbine
Installing the Wind Turbine Before assembling the wind turbine on the tower, the electrical installation m u s t b e com pleted, as well as the interconnection b e t w e e n batteries a n d regulator. Once we have the electrical wiring installed, we will proceed to assemble the wind turbine. - Page 13 Fixation plate This plate is provided to be attached to the t o w e r . A n o t h e r o n e is a s s e m b l e d o n the wind turbine base.
- Page 14 Tail tube / Alternator T he tail is attached to the alternator at this point. Before bolting the tube to the alternator, pass the protective casing through the tail tube. (Once t h e t u b e is b o l t e d , y o u w i l l n o t b e able to install the casting).
- Page 15 The blades, made reinforced carbon fiber/glass make direct contact with the wind. They are highly stressed. Their aerodynamics, specifically designed for Bornay wind turbines, makes the alternator turn faster or slower depending on wind speed. Blade assembly is carried out b y securing t h e m to the hub, with the relief logo towards the rear part, i.e.
- Page 16 Double check that blades fit Check blades are correctly perfectly and that no mounted in the right place; obstacle will get in their the Bornay logo must be to way. leeward, on the reverse side " PRECAUTION: D o not manipulate the wind turbine and its control panel o n windy •...
-
Page 17: Maintenance
Bolts The bolts used in Bornay wind turbines are stainless steel. If a bolt is missing or in poor condition, it m ust b e replaced right a w a y in order to avoid any... - Page 18 Wiring All cable connections a n d switches m u s t b e properly checked in order to prevent any disconnection and to allow the wind turbine to run freely. Blades T h e reinforced carbon fiber/glass blades are covered b y a protective tape made of abrasive polyurethane on the leading edges of the blades.
-
Page 19: Frequently Ask Questions
T h e e n e r g y c a n b e k n o w n t h r o u g h th e s c re e n o r w i t h th e specific software of Bornay. - Page 20 Normally, the inverter handles the start-up and stopping on the m otor according t o installation needs. F o r exam ple, if the battery runs the inverter will order the motor to start. 5.- Can several wind turbines be set up in parallel? Yes, several wind turbines can be run in parallel.
-
Page 21: Annex
21.6 - 25.1 78 - 90 Storm * 25.2 - 29 91 - 104 Violent storm More than 29 More than 104 Hurricane * On receiving strong storm warnings, Bornay recommends manually braking equipment in order to protect the wind turbine. - Page 22 Annex 2.- Landscape and objects that influence on wind turbines W h e n the w i n d is eclipsed b y the objects it finds in its w ay, it reduces its speed and turbulence results. The performance of a wind turbine installed on the wrong location will be adversely affected by turbulence and light winds.
-
Page 23: Declaration Of Conformity
Mr. Juan Bornay Rico, on behalf of and representing Bornay A erogeneradores, slu, S T A T E S That Bornay wind turbine models Wind 13+, Wind 25.2+, Wind 25.3+ and their corresponding regulators, have been produced in compliance with regulations applicable under the E.U. directives: 89/392/CEE... -
Page 24: Warranty
40 months from fabrication date. WIND + WIND TURBINES ACCESORIES T he warranty period for the Bornay accessories is 36 months from date of original installation or 40 months from fabrication date. WARRANTY CONDITIONS T h e W a r r a n t y covers parts a n d labour in o u r w o r k s h o p s only.
