Sliding Gate Operator
User's Manual
SL600AC

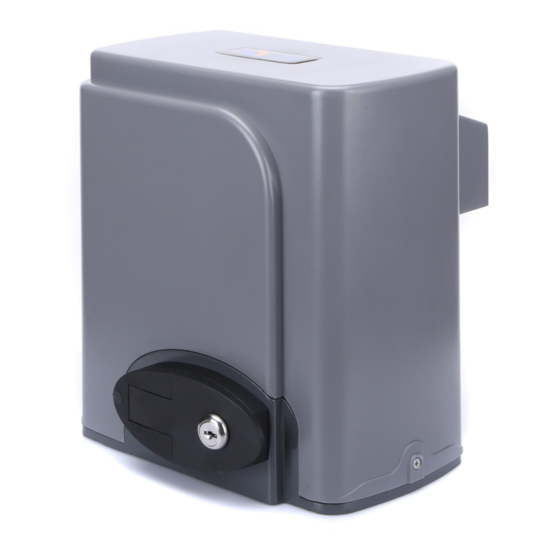

SL600AC SLIDING GATE OPERATOR
1. Products introduction
Please read the instructions carefully before proceeding.
MCU is supplied to control the gate operator.
Keypad / single button interface.
Have Infrared safety sensor interface.
Soft start and soft stop function and the soft stop width are
adjustable, and the soft start function can be disabled.
Working time is adjustable.
Motor output torque is adjustable.
Manual key release designed for emergency purposes.
2. Important safety information
Carefully read and follow all safety precautions and warning before
attempting to install and use this automatic gate operator.
The gate operator should be installed by a qualified technician;
otherwise, serious personal injury or property damage may
occur.
When opening or closing the gate, do not attempt to walk or
drive through the gate.
If enable the auto-close function, must use the infrared sensor.
Children should not be allowed to play near or operate automatic
gates.
The automatic gate operator must be grounded.
Install the gate operator on the inside of the property; DO NOT
install it on the outside of the property where the public has
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for JOYTECH SL600AC
Summary of Contents for JOYTECH SL600AC
- Page 1 SL600AC SLIDING GATE OPERATOR 1. Products introduction Please read the instructions carefully before proceeding. MCU is supplied to control the gate operator. Keypad / single button interface. Have Infrared safety sensor interface. Soft start and soft stop function and the soft stop width are adjustable, and the soft start function can be disabled.
- Page 2 4. Mechanical Installation The operator should be switched off before repairing it or The SL600AC will handle gate weighting up to 600kg and up to 8m/12m if the proper installation procedures have been followed. opening its cover.
- Page 3 SL600AC SLIDING GATE OPERATOR SL600AC SLIDING GATE OPERATOR Gate preparation Gate operator Be sure the gate is properly installed and slides smoothly before installing the SL600AC sliding gate operator. The gate must be plumb, level, and move freely. Gear Conduit Spring washer...
- Page 4 SL600AC SLIDING GATE OPERATOR SL600AC SLIDING GATE OPERATOR Installation of Rack Release the gear with the key and push the sliding gate manually Fix the three nuts (in the same package with rack) on the rack to pre-determine the position, fix the block to the rack and lock element.
- Page 5 SL600AC SLIDING GATE OPERATOR SL600AC SLIDING GATE OPERATOR release bar about 90 degree to open or close gate manually, use the Sliding gate release key as follow: Magnetic Limit block Fit the supplied key in the lock. Rack Turn the key and pull down the release bar about 90°to release Gear the gear.
- Page 6 Protect Earth VDR1 POWER d. Three-button switch / single-button switch (keypad): The SL600AC is equipped with interfaces for three-button switch and single-button switch (keypad). To install the keypad attach one lead of your keypad to ‘5’ of Fig.8 terminal J2 and the other to the ‘4(COM)’. The keypad will function in single channel mode.
- Page 7 SL600AC SLIDING GATE OPERATOR SL600AC SLIDING GATE OPERATOR limit ( Magnetic limit switch) . terminal J2 terminal J2 Keypad terminal J4 Terminal J6 Capacitor Mot1 Stop Mot2 Open Single-button switch Close or keypad Three-button Control board Control board switch Control Fig.10A...
- Page 8 SL600AC SLIDING GATE OPERATOR SL600AC SLIDING GATE OPERATOR 7. Tuning and operation Remote Pedestrian button: After you learn the transmitter, you press the remote button 4 the door will open 1 meter when the a. Adjust the Adjustable resistance (see Fig.8) door is closed.
- Page 9 SL600AC SLIDING GATE OPERATOR SL600AC SLIDING GATE OPERATOR Table 1: DIP switch adjust 8. Programming Process Adjust the DIP switch（see Fig13B and table 1） DIP-switch Function SET No soft start mode (see Fig.13A) Soft start mode(need to power on reset).
-
Page 10: Led Indicate
SL600AC SLIDING GATE OPERATOR SL600AC SLIDING GATE OPERATOR Three-button mode external button switch (not supply): pressed the LED will light. press ‘OPEN’ button, the gate opens. Press ‘STOP’ button, the d. LED 2 indicate the ‘OPEN’ external button, if the button is gate stops. - Page 11 SL600AC SLIDING GATE OPERATOR SL600AC SLIDING GATE OPERATOR 11. Troubleshooting 11. Packing list After receiving the gate operator, you should make an Trouble Possible causes Solutions unpack-inspection, in which you should check whether the product The door fails to was damaged. If you have any problem please contact our dealer.
