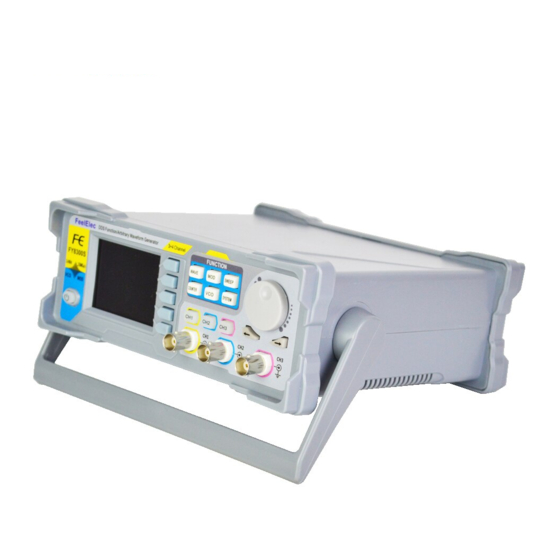

- Page 1 FeelElec FY8300S Series Fully Numerical Control Three +Four Channel Function/Arbitrary Waveform Generator User’s Manual Rev1.0 May,2019...
-
Page 3: Guaranty And Declaration
FeelElec Guaranty and Declaration Copyright © 2019 FeelElec Technology Co. Ltd. All Rights Reserved. Declaration ● FeelElec reserves the right to modify or change parts of or all the specifications and pricing policies at company’s sole decision. ● Information in this publication replaces all previously corresponding material. -
Page 4: Table Of Contents
Enable Sweep Function .................... 39 System Configuration and Auxiliary Functions ..........40 Save and Load ......................41 Configuration ......................42 Uplink ......................... 43 Synchronization ......................44 Troubleshooting ....................45 Technical Specification ..................46 Appendix ......................50 FY8300S Series User’s Manual... -
Page 5: Product Introduction
FeelElec Product Introduction This manual applies to each model of FY8300S series Function/Arbitrary Waveform Signal Generator. The last three characters of the model indicate the up limit output of Sine Wave (MHz). For example, the “60M” of the Model Number “FY8300S-60M”... - Page 6 PWM modulations. ◆ Burst Output Function: There has Manual Trigger, internal CH2 Trigger, and External Trigger for your options. It can output 1~1048575 pulse trains. ◆ 100M Frequency meter function: It can measure frequency, period, pulse FY8300S Series User’s Manual...
- Page 7 FeelElec width and duty cycle. Max. frequency workable is 100MHz and Min. frequency workable is 0.01 Hz. ◆ Channel SYNC Function: Support waveform copy and state copy between channels. ◆ Support two or more signal generators connected to achieve multi-channel output, the maximum support 16-channel synchronous output, the phase between each channel can be adjusted.
-
Page 8: Quick Start
FeelElec Quick Start General Inspection Please follow the items below when you receive a new FY8300S series Function/Arbitrary Waveform Generator. 1． Inspect the shipping container for damage Keep the damaged shipping container or cushioning material until the contents of the shipment have been checked for completeness and the instrument has passed both electrical and mechanical tests. -
Page 9: Front Panel Overview
FeelElec Front Panel Overview The front panel is divided into several function areas for easy operation. Front Panel Item Function Description 2.4 inch TFT（320×240）color LCD. Operation instruction please check chapter “User Interface”. F1~F5 buttons are matched with Manu displayed on the LCD. Press... - Page 10 Control CH1 output. Press it to switch to CH1 parameter setting interface. — Output Press it to turn on CH1 output with current Channels configuration. The indicator will illuminate. — Press it again to turn off CH1 output and the indicator will extinguish. FY8300S Series User’s Manual...
- Page 11 FeelElec Control CH2 output. Press it to switch to CH2 parameter setting interface. — Press it to turn on CH2 output with current configuration. The indicator will illuminate. — Press it again to turn off CH2 output and the indicator will extinguish.
-
Page 12: Back Panel Overview
⚫ Tx: Transmit Data. 3. USB Device interface It’s for communication with PC (This is a USB-TTL serial port and driver is needed). Can programming by host computer. 4. Power switch and Power input socket(voltage range AC100V-AC240V). Warning FY8300S Series User’s Manual... - Page 13 FeelElec To avoid instrument damage, voltage of signal input from EXT.IN CANNOT exceed ±20Vac+dc.Voltage of signal input from Trig/FSK/ASK/PSK IN CANNOT exceed DC5V. Note To ensure the normal work, please use 100-240V AC power supply. FY8300 Series User’s Manual...
-
Page 14: Power On And Inspection
If the generator cannot work normally, please check the Chapter “Troubleshooting” for solution. Set the System Language FY8300S series Function/Arbitrary Waveform Generator supports Chinese and English system languages. You can press SYS→CONF to switch the system language. -
Page 15: User Interface
FeelElec User Interface The user interface of FY8300S provides four types of display modes: Three Channels Parameters (default), Single Channel Extension, Auxiliary Functions and System Interface. Three Channels Parameters (default) The upper half of LCD displays the channel selected currently and the parameters can be set. - Page 16 Note: Rising edge parameters are only valid for trapezoidal waves. DESCENDING EDGE. Show the time of the current selected channel waveform drop edge. Repeatedly press the corresponding drop button, the FY8300S Series User’s Manual...
- Page 17 FeelElec menu bar will switch in the duty/up/down function. When the "drop" display value is highlighted, the parameter will be changed by the direction key and knob. Note: The descent edge parameters are only valid for trapezoidal waves. FY8300 Series User’s Manual...
-
Page 18: Appearance And Dimensions
FeelElec Appearance and Dimensions FY8300S Series User’s Manual... -
Page 19: Front Panel Operations
Front Panel Operations Waveform Output FY8300S series can output waveforms (Sine, Square, Triangle/Ramp, Pulse and Noise etc.) from Three channels at the same time. The default configuration of the three channels is a sinusoidal wave with a frequency of 10 kHz, an amplitude of 5 Vpp and a phase difference of 120 degrees. -
Page 20: Select Waveform
√ √ √ Frequency √ √ √ √ √ √ Amplitude √ √ √ √ √ √ Offset √ √ √ √ √ √ Phase Parameters √ √ Duty Cycle √ Rising edge √ Descending edge FY8300S Series User’s Manual... - Page 21 FeelElec Note: Arbitrary waveforms can be edited and downloaded from PC software provided by FeelElec. The relevant software and driver can be downloaded from our website: www.feelelec.com FY8300 Series User’s Manual - 19 -...
-
Page 22: Set Frequency
ADJ Knob to set the value. Press Arrows button to move the cursor and rotate ADJ Knob to set the value. Under setting frequency status, press ADJ Knob to change frequency units among MHz, KHz, Hz, mHz, μHz. FY8300S Series User’s Manual... -
Page 23: Set Amplitude
FeelElec Set Amplitude The amplitude setting range is limited by the “Attenuation” and “Frequency” settings. Please refer to “Output Characteristics” in “Specifications”. The default value is 5Vpp. Press AMPL button to highlight amplitude value. Then use Arrows button and ADJ Knob to set the value. Press Arrows button to move the cursor and rotate ADJ Knob to set the value. -
Page 24: Set Offset
ADJ Knob to set the value. The offset accuracy is 1mV. i.e. 0.001V. When frequency output is lower than 20MHz, the offset can be adjusted during -12V~+12V. When frequency output is higher than 20MHz, the offset can be adjusted during -2.5V~+2.5V. FY8300S Series User’s Manual... -
Page 25: Set Duty Cycle (Rectangle)& Set Pulse Wave Pulse Width (Adj-Pulse)
FeelElec Set Duty Cycle (Rectangle) Duty cycle is defined as the percentage that the high level takes up in the whole period (as shown in the figure below). This parameter is only available when Rectangle is selected. The setting range of duty cycle is limited by the “FREQ” setting. Please refer to “Waveform Characteristics”... -
Page 26: Set Phase
Then press PHAS button to highlight phase value. Then use Arrows button and ADJ Knob to set the value. Press Arrows button to move the cursor and rotate ADJ Knob to set the value. FY8300S Series User’s Manual... -
Page 27: Enable Output
FeelElec Enable Output After configuring the parameters of the waveform selected, waveform output could be enabled. At start-up output of CH1,CH2and CH3 are both turned on as default. At this time indicator lights of three channels illuminate. The default status can be modified. Press【SYS】button and then press【MORE】... -
Page 28: Example：output Sine Waveform
Press CH1 button to turn CH1 output on. The [CH1] connector outputs the configured waveform. 8. Observe the output waveform Connect the [CH1] connector to the oscilloscope with BNC cable. The waveform is as shown below. FY8300S Series User’s Manual... - Page 29 FeelElec FY8300 Series User’s Manual...
-
Page 30: Burst
Press the [WAVE] button to change the current burst output signal waveform. Press the [FREQ] button to change the current burst output signal frequency. Press the [AMPL] button to change the current burst output signal amplitude. FY8300S Series User’s Manual... -
Page 31: Modulation Function
FeelElec Modulation Function Press the button to enter the modulation function interface. Press [MODE] soft key, you can choose different modulation types. Modulation Type AM, FM, PM, ASK, FSK, PSK Carrier Waveform Sine, Square, Triangle, Ramp, Arbitrary waveform (Except DC) - Page 32 FeelElec 1μHz~10MHz Key Frequency FY8300S Series User’s Manual...
-
Page 33: Frequency Meter/Counter
FeelElec Frequency Meter/Counter FY8300S provides a counter which can measure various parameters of external input signal such as frequency, period, duty cycle, positive pulse width and negative pulse width. Three channels output can work together with counter. Enable the Counter Press COUNTER button of the front panel to enable the counter and measurement Manu. -
Page 34: Set The Counter
Set the Counter Gate Time Press GATE button to select gate time. The default is “1S”. It’s better to use “10S” or “100S” as gate time for low frequency signal. Gate Time Frequency Resolution 0.1Hz 100S 0.01Hz FY8300S Series User’s Manual... -
Page 35: Sweep
FeelElec Sweep Press SWEEP button of front panel to enable sweep function. FY8300S can output sweep from CH1. In sweep mode, the generator outputs signal variably from the start frequency to stop frequency within the specified sweep time. It can generate sweep output for Sine, Square, Triangle/Ramp and arbitrary waveform. -
Page 36: Sweep Start Position
Arrow buttons and rotate the ADJ Knob to set the specified value. For example: START：00.00V ⚫ Duty Cycle Sweep: Press STAR button to highlight start duty cycle parameter. Press the Arrow buttons and rotate the ADJ Knob to set the specified value. For example: START：50.0% FY8300S Series User’s Manual... -
Page 37: Sweep End Position
FeelElec Sweep End Position When Sweep function is enabled. Sweep end position need to be set according to sweep objects. ⚫ Frequency Sweep: Press END button to highlight end frequency parameter. Press the Arrow buttons and rotate the ADJ Knob to set the specified value. - Page 38 TIME and external sweep (VCO Sweep). Press the Arrow buttons and rotate the ADJ Knob to set the specified value of weep time. The default is “10S”. The work range is 10mS~999.99S. For Example: SOUR: TIME 999.99S FY8300S Series User’s Manual...
-
Page 39: Vco (Voltage Control Output) Sweep
FeelElec VCO (Voltage Control Output) Sweep Function instruction: External voltage can control signal output by External Sweep (VCO) function. It can realize voltage controlling frequency (VCF), voltage controlling amplitude (VCA), voltage controlling offset, voltage controlling duty cycle and so on. -
Page 40: Sweep Type
P and T could be current expressed as shown below by the above-mentioned parameters: lg(F P=10 stop sweep T=t+lg(F )/lg(P) start Wherein, t is the time from the start of the sweep and its range is from 0 to sweep. FY8300S Series User’s Manual... -
Page 41: Enable Sweep Function
FeelElec Enable Sweep Function Press SWEEP button of front panel to enable sweep function. Then press ADJ Knob to start sweep process. Press ADJ Knob again to stop sweep. Start value and End value Start value and stop value are the upper and lower limits of sweep for specified parameter. -
Page 42: System Configuration And Auxiliary Functions
The default CH2 channel is on to turn on the output state， can press the [ F2 ] button to set the default output status of the CH2 channel. CH3 BOOT: ON According to user's requirement, factory settings can be restored by pressing F3 key and OK key. FY8300S Series User’s Manual... -
Page 43: Save And Load
FeelElec Save and Load Press SAVE button in System interface to save parameters of current waveform to specified position. Press LOAD button to load parameters of waveforms previously set to current system status. Select S xx on the right to save current parameters to corresponding position, The parameters stored in storage location 01 will be loaded automatically at the next boot. -
Page 44: Configuration
⚫ Press M/S button to set uplink mode: Master/Slave. Master is the default. ⚫ Press UPLI button to turn on/off uplink function. Off is the default. FY8300S Series User’s Manual... -
Page 45: Uplink
FeelElec Uplink FY8300S supports multi-machine uplink, which can provide users more channels for output. In uplink network, only one master machine can exist. Others must be set as slave machine. The setting method is as follows: ⚫ Select on FY8300S as master machine. Press SYS -> CONF ->M/S, to set the UPLINK MODE to be “Master”. -
Page 46: Synchronization
The synchronization function of FY8300 series generators will be automatically saved after each setup, and the system will still be valid after restart. When the user can not correctly change the system parameters, please confirm whether the step function has been opened. FY8300S Series User’s Manual... -
Page 47: Troubleshooting
4) Check whether the indicators of CH1, CH2 or CH3 is turned on. If not press corresponding button to turn it on. 5) If the problem is still, please contact FeelElec. FY8300 Series User’s Manual... -
Page 48: Technical Specification
64 sets customer-defined waveform. Can store 64 user-defined arbitrary waveforms, (8K 14bits) * 64 Non-Volatile Storage Waveform Length 8192 points * 14bits Sampling Rate 250MSa/s Vertical Resolution 14 bits Harmonic ≥50dBc(<1MHz); ≥45dBc(1MHz~20MHz); Suppression Sine Total Harmonic <0.5% (20Hz~20kHz,0dBm) Distortion FY8300S Series User’s Manual... - Page 49 FeelElec ≤15ns (VPP<5V) Rise/Fall Time ≤5% Rectangle Overshoot Duty Cycle 0.01%~99.99% (Resolution 0.01%) Sawtooth wave Linearity >99% (0.01Hz~10kHz) Output characteristics Frequency≤5MHz: 1mVpp~24Vpp; 5MHz<Frequency≤10MHz: 1mVpp~20Vpp; Amplitude（VPP） 10MHz<Frequency≤20MHz: 1mVpp~10Vpp; Frequency>20MHz: 1mVpp~5Vpp; Resolution Amplitude Stability ± 0.5%/ 5 Hours Amplitude flatness ± 2.5%(<10MHz);± 5%(>10MHz);...
- Page 50 Sine, Square, Triangle, Ramp, Arbitrary waveform Depth 0% to 120% Internal : 1μHz~1MHz; External: 1μHz~2KHz; Modulating Frequency Source Internal (CH2) / External (VCO IN Port) Modulating Waveform Sine, Square, Triangle, Ramp, Arbitrary waveform Internal : 1μHz~1MHz; External: 1μHz~2KHz; Modulating Frequency FY8300S Series User’s Manual...
- Page 51 FeelElec Source Internal (CH2) / External (VCO IN Port) Modulating Waveform Sine, Square, Triangle, Ramp, Arbitrary waveform Phase Deviation 0° to 360° Internal : 1μHz~1MHz; External: 1μHz~2KHz; Modulating Frequency Source Internal (CH2), External (ASK IN Port), Manual Modulating Waveform Square with 50% duty cycle.
-
Page 52: Appendix
(including all the costs, expenses, attorney fees etc.) that may result in. Appendix C：Accessories and Options Description Quantity Model FY8300S Series DDS Signal Generator Power Cable USB Data Cable Standard BNC-Clip Cable Accessories BNC-BNC Cable...
