ON/OFF TEMPERATURE and HUMIDITY CONTROLLER
High Voltage,
Double / Reinforced
Risk of
Electric Shock
TECHNICAL SPECIFICATION
: 35x77mm
: 29x71mm
: 3 Digits 7 Segment
: Custom Sensor (GM-HT-01)
o
: -19,9..+80,0
C, 5 .. 95%RH
o
: ± 0,1
C, ± 1%RH
o
: ± % 1 (
C), ± % 3 (%RH); (Over full scale)
: ON-OFF
: Ht (heating), CL (cooling); selectable
: lo (decrease humidity), hi (increase humidity); selectable
: Relay (NO + NC), 250VAC, 2A, Resistive load
: Relay (NO), 250VAC, 2A, Resistive load
: 100..240VAC, 50-60Hz or 24VDC/AC.
o
: 80% up to 30
C, then linearly decreases to 50% at 50
: < 2000 m
: EN 61000-6-1, EN 61000-6-3 (Only light industrial environment)
: EN 61010-1; Pollution degree 1, measurement category I, (Only light industrial
environment, double/reinforced isolated, non-conductive pollution environment)
: IP20; according to EN 60529
o
: 0 .. 50
C
o
o
C .. 60
C (no icing)
: < 0.5 kg
: Micro switch
: In case of measurement failure, "Err" message displayed and Relay
outputs become OFF
no: normally open
nc: normally closed
NOT
Insulation
Litter
1
LT102HT
CE Mark
o
C (non-condensing)
http://www.gemo.com.tr
e-posta: info@gemo.com.tr
Advertisement
Table of Contents
Related Manuals for Gemo LT102HT
Summary of Contents for Gemo LT102HT

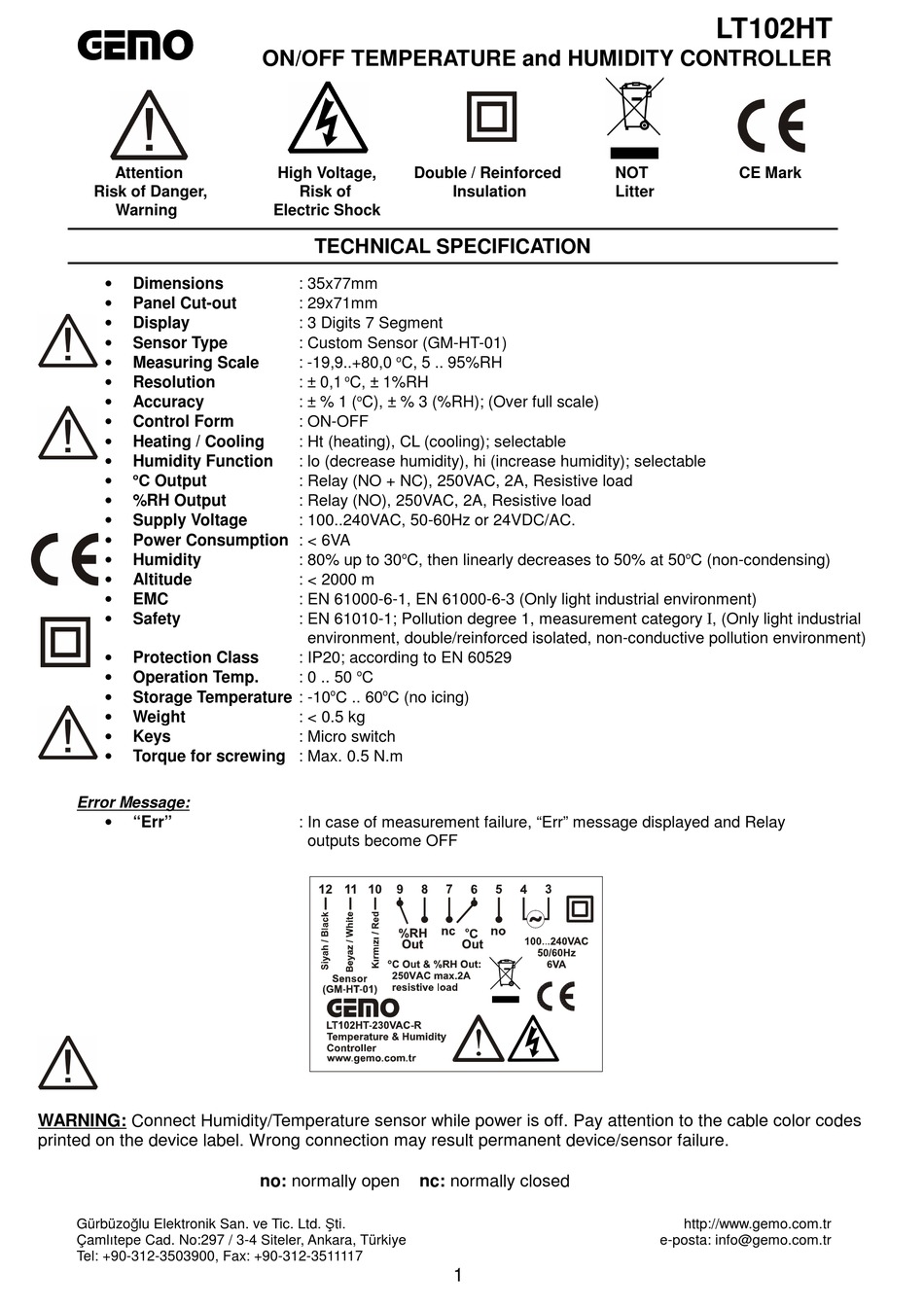

- Page 1 LT102HT GEMO ON/OFF TEMPERATURE and HUMIDITY CONTROLLER Attention High Voltage, Double / Reinforced CE Mark Risk of Danger, Risk of Insulation Litter Warning Electric Shock TECHNICAL SPECIFICATION • Dimensions : 35x77mm • Panel Cut-out : 29x71mm • Display : 3 Digits 7 Segment •...
