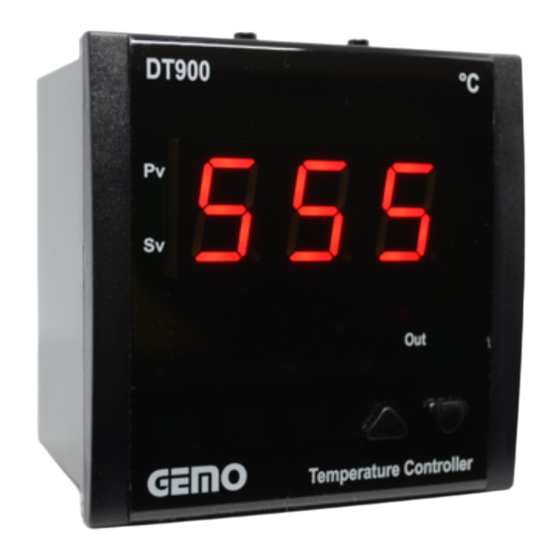

Gemo DT900 Quick Start Manual

GEMO
Attention
Risk of Danger,
Warning
•
Dimensions
•
Panel Cut-out
•
Display
•
Sensor Type
•
Measuring Scale
•
SET interval
•
Hysteresis Interval
•
Resolution
•
Accuracy
•
Control Form
•
Out Output
•
Cold. Junc. Comp.
•
Sensor Failure
•
Supply Voltage
•
Power Consumption : < 6VA
•
Humidity
•
Altitude
•
EMC
•
Safety
•
Protection Class
•
Operation Temp.
•
Storage Temperature : -10
•
Weight
•
Keys
•
Torque for screwing : Max. 0.5 N.m
no: normally open
nc: normally closed
WARNING: The devices with device code ending w ith "-K" use NiCr-Ni, K type T/C
Gürbüzoğlu Elektronik San. ve Tic. Ltd. Şti.
Çamlıtepe Cad. No:297 / 3-4 Siteler, Ankara, Türkiye
Tel: +90-312-3503900, Fax: +90-312-3511117
DT900 / DT721 / DT481 / LT102J / LT102K
TEMPERATURE CONTROLLER
High Voltage, Double / Reinforced
Risk of
Electric Shock
TECHNICAL SPECIFICATION
: DT900:96x96, DT721:72x72, DT481:48x48mm, LT102J/K:35x77mm
: DT900:91x91, DT721:68x68, DT481:45,5x45,5mm, LT102J/K:29x71mm
: 3 Digits 7 Segment
: Fe-Const, J type T/C or NiCr-Ni, K type T/C
o
: 0 .. 600 C (J type) or 0 .. 999
o
: 0 .. 600 C (J type) or 0 .. 999
o
: 0 .. 50 C
o
: ± 1 C
: ± 0.3 % (Over full scale)
: ON-OFF
: Relay (NO + NC), 250VAC, 2A, Resistive load, (optional SSR)
o
: 0 .. 50 C (T/C)
: Out is OFF in case of sensor failure, measurement out of range or
hardware fails to measure input signal.
: 100..240VAC, 50-60Hz or 24VDC/AC (isolation voltage: 40VAC max.)
o
: 80% up to 30 C, then linearly decreases to 50% at 50
: < 2000 m
: EN 61000-6-1, EN 61000-6-3 (Only light industrial environment)
: EN 61010-1; Pollution degree 1, measurement category I, (Only light industrial
environment, double/reinforced isolated, non-conductive pollution environment)
: IP20; according to EN 60529
o
: 0 .. 50 C
o o
C .. 60 C (no icing)
: < 0.5 kg
: Micro switch
NOT
Insulation Litter
o
C (K type)
o
C (K type) (limited by Up.L value)
1
CE Mark
o
C (non-condensing)
http://www.gemo.com.tr
e-posta: info@gemo.com.tr
