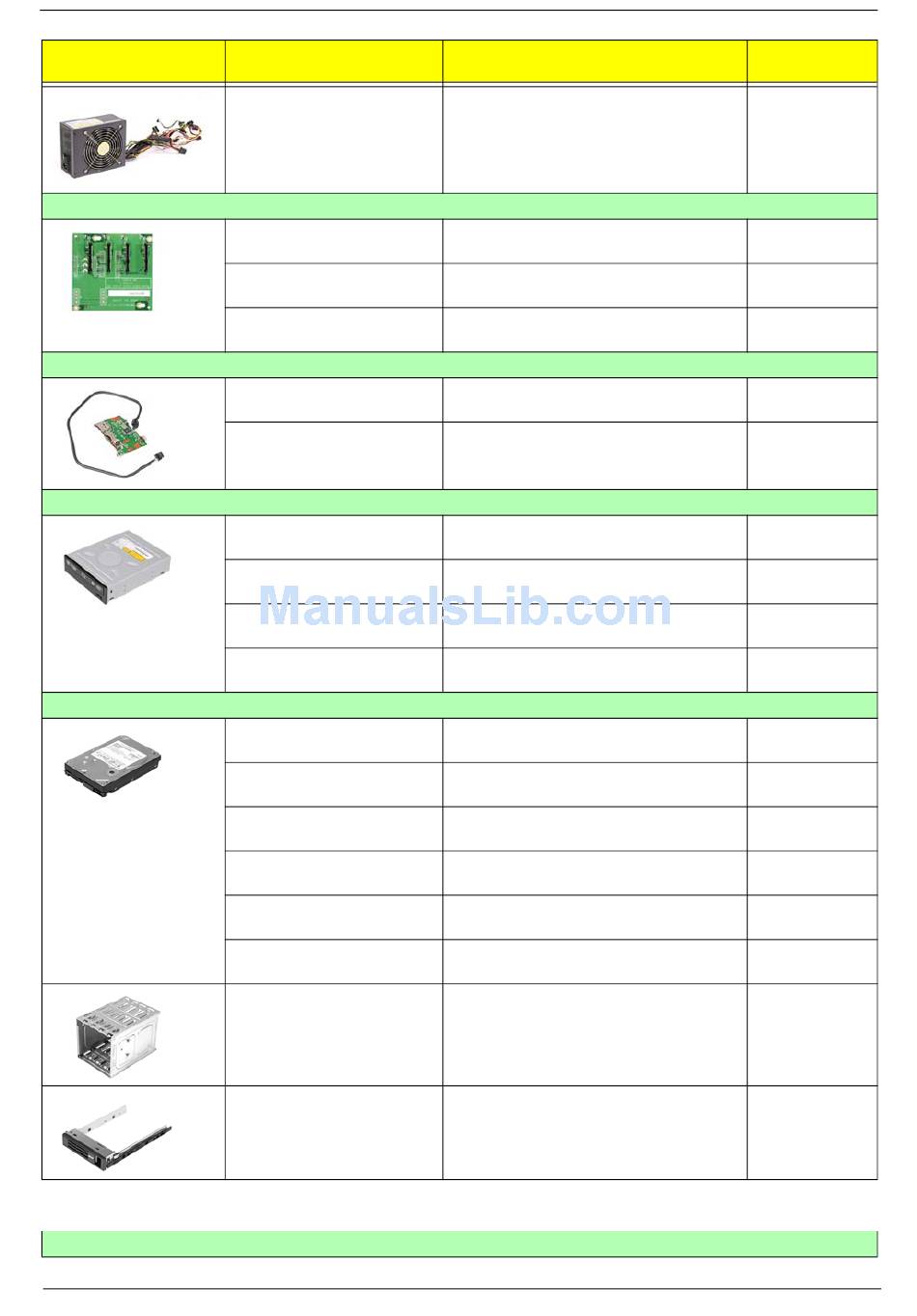

Acer Aspire G7750 Series Service Manual page 99

Component
HDD board
Card reader
Optical drive
Hard disk drive
Housing
Chapter 6
Part Name
SPS 750W PFC GPS-750AB
A
BUMBLEBEE BACK PLANE
BD-1 SKU2
BUMBLEBEE BACK PLANE
BD-1 SKU3
BUMBLEBEE BACK PLANE
BOARD-1
CARD READER 3.5", USB2.0,
14-I
CARD READER 3.5", USB2.0,
14-I
HLDS SUPER MULTI SATA
GH-15N BOXER
PLDS SUPER MULTI SATA
DH-16A3S BOXE
Sony SUPER-MULTI 16X
SATA AD-7200S
HLDS BD 4X HLDS GGC-
H20N BOXER
WD HDD 250GB WD
WD2500AAJS-22B4A0
WD HDD 320GB WD
WD3200AAJS-22B4A0
HGST HDD 500GB HGST
HDP725050GLA380
HGST 750GB SATA 8MB
7200 NCQ
WD HDD WD 750GB SATA
8MB 7200 NCQ
HGST 1TB SATA 8MB 7200
NCQ
ASSY BRKT 4HSP HDD
CAGE AG900
ASSY HDD CARRIER SATA
AG900
Description
SPS 750W PFC GPS-750AB A
BUMBLEBEE BACK PLANE BD-1 SKU2
BUMBLEBEE BACK PLANE BD-1 SKU3
BUMBLEBEE BACK PLANE BOARD-1
CARD READER 3.5", USB2.0, 14-I
CARD READER 3.5", USB2.0, 14-I
HLDS SUPER MULTI SATA GH-15N
BOXER
PLDS SUPER MULTI SATA DH-16A3S
BOXE
Sony SUPER-MULTI 16X SATA AD-7200S
HLDS BD 4X HLDS GGC-H20N BOXER
WD HDD 250GB WD WD2500AAJS-
22B4A0
WD HDD 320GB WD WD3200AAJS-
22B4A0
HGST HDD 500GB HGST
HDP725050GLA380
HGST 750GB SATA 8MB 7200 NCQ
WD HDD WD 750GB SATA 8MB 7200 NCQ
HGST 1TB SATA 8MB 7200 NCQ
ASSY BRKT 4HSP HDD CAGE AG900
ASSY HDD CARRIER SATA AG900
Acer
Part Number
PY.75009.001
81.3V210.002G
81.3V210.003G
81.3V210.004G
CR.10400.008
CR.10400.009
KU.0160D.034
KU.01609.005
KU.0160E.002
KV.0040D.001
KH.25008.020
KH.32008.014
KH.50007.003
KH.75007.001
KH.75008.001
KH.01K07.001
60.3V216.001
60.3V217.001
93
